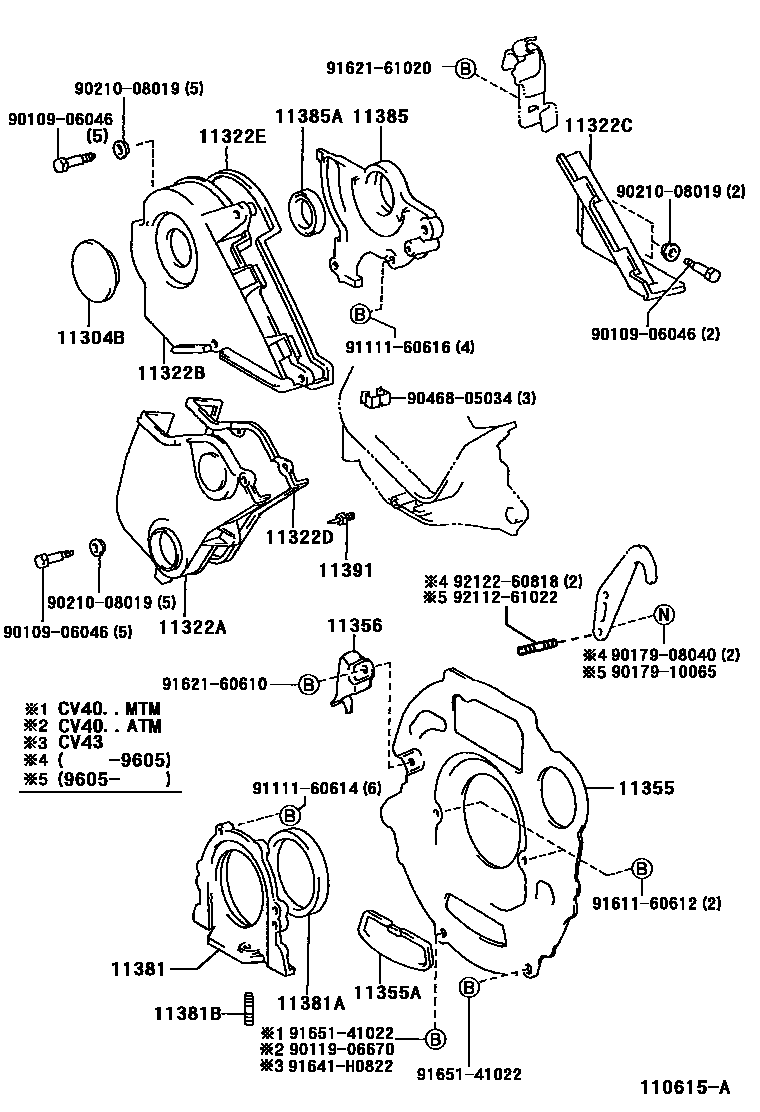

TIMING GEAR COVER & REAR END PLATE
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
11322ACOVER, TIMING BELT, NO.1
sub11321-64021
11322BCOVER, TIMING BELT, NO.2
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11355APLUG, HOLE(FOR REAR END PLATE)
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
11385RETAINER, CAMSHAFT OIL SEAL
11391POINTER, TIMING
9010906046
main90109-06046
9011906670
main90119-06670
9017908040
main90179-08040
9017910065
main90179-10065
9021008019
main90210-08019
9046805034
main90468-05034
9111160614
main91111-60614
9111160616
main91111-60616
9161160612
main91611-60612
9162160610
main91621-60610
9162161020
main91621-61020
91641H0822
main91641-H0822
9165141022
main91651-41022
9211261022
main92112-61022
9212260818
main92122-60818
31 parts on this diagram · 3 diagrams in section
