ENGINE OVERHAUL GASKET KIT

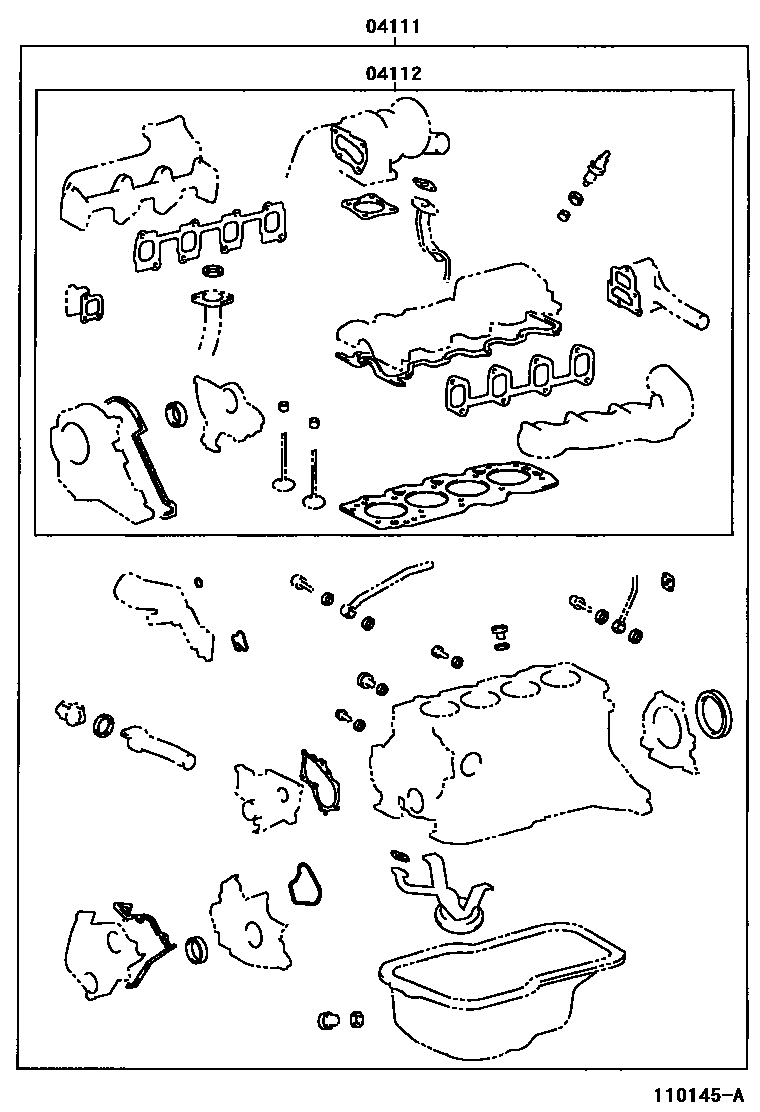

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-64250i199406-199509
main04111-64251i199509-199511
main04111-64252i199511-199605
sub04111-64253
sub11115-64130
main04111-64300i199605-199708
sub11115-64130
main04111-64301i199708
sub04111-64302
main04111-74270i199406-199508
main04111-74271i199508-199601
main04111-74272i199601-199605
main04111-74460i199406-199508
main04111-74461i199508-199605
main04111-74591i199605-199612
main04111-74592i199612
main04111-74600i199605
04112GASKET KIT, ENGINE VALVE GRIND
main04112-64190i199406-199509
main04112-64191i199509-199511
main04112-64192i199511-199605
sub04112-64193
sub11115-64130
main04112-64230i199605-199708
sub11115-64130
main04112-64231i199708
sub04112-64232
main04112-74270i199406-199601
main04112-74271i199601-199605
main04112-74460i199406-199605
main04112-74561i199605-199612
main04112-74562i199612
main04112-74570i199605

2 parts on this diagram · 4 diagrams in section
