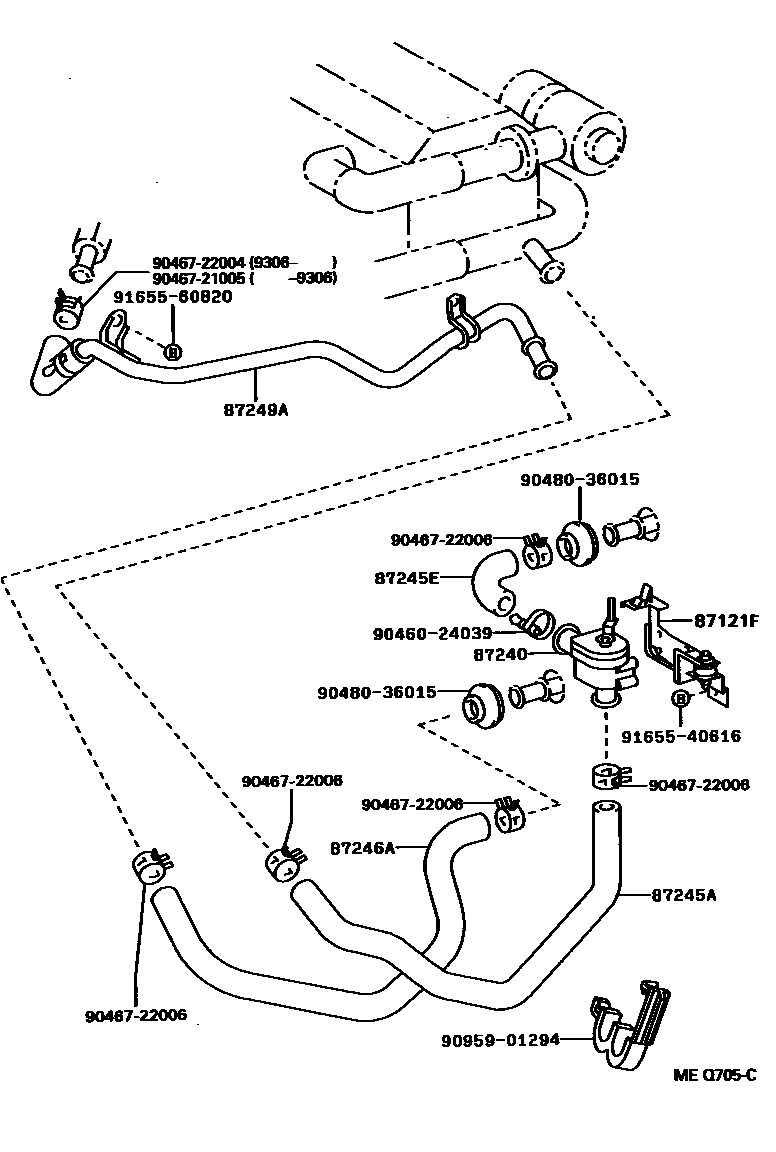

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87121FBRACKET, HEATER

main87121-32010iCV30,SV3#,VZV3#199007-199406

87240VALVE ASSY, HEATER WATER

main87240-32040iCV30,SV3#,VZV3#199007-199406

87245AHOSE, HEATER WATER, INLET A

main87245-32220iSV3#199007-199206

main87245-32240iCV30199007-199406

main87245-32260iVZV30,31199007-199206

main87245-32290iVZV32,33199105-199406

main87245-32300iSV3#199206-199406

87245EHOSE, HEATER WATER, INLET E

main87245-32210iCV30,SV3#,VZV3#199007-199406

87246AHOSE, HEATER WATER, OUTLET A

main87245-32230iCV30199007-199406

main87245-32250iVZV30,31199007-199206

main87245-32270iSV3#199007-199206

main87245-32280iVZV32,33199105-199206

main87245-32310iSV3#199206-199406

main87245-32320iVZV3#199206-199406

87249APIPE, HEATER WATER OUTLET, A

main87209-32030iCV30199007-199406

9046024039

main90460-24039

9046721005

main90467-21005

9046722004

main90467-22004

9046722006

main90467-22006

9048036015

main90480-36015

9095901294

main90959-01294

9165540616

main91655-40616

9165560820

main91655-60820

14 parts on this diagram · 4 diagrams in section
