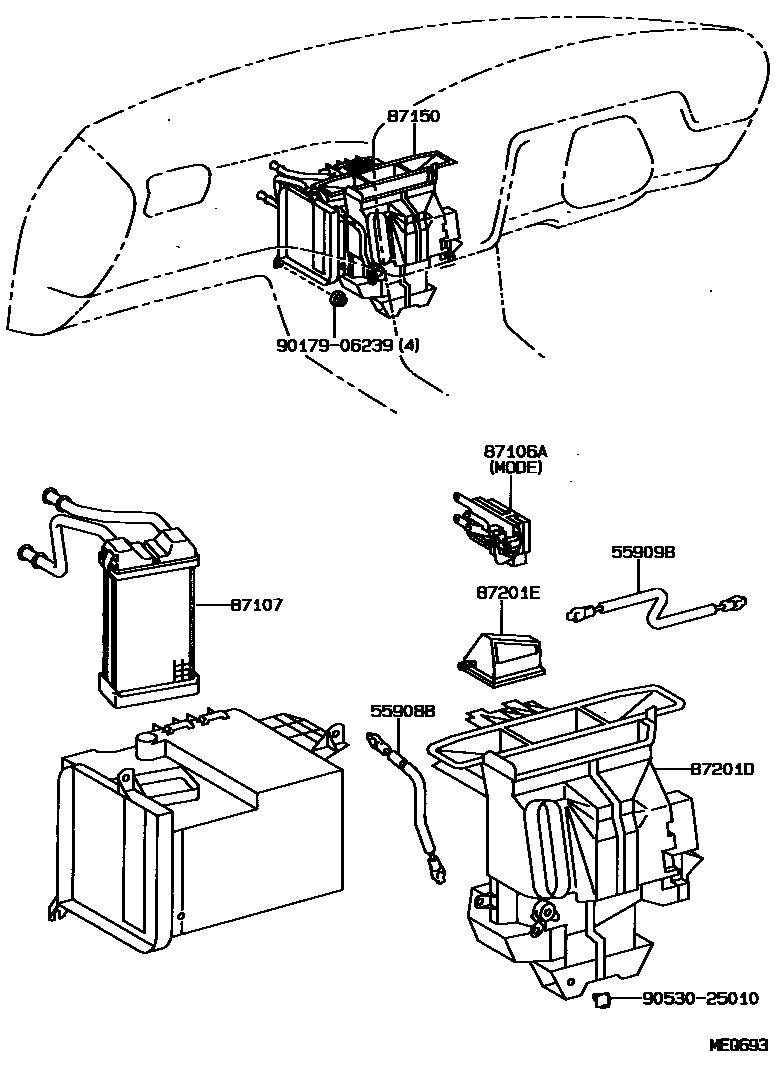

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1RADIATOR 0003 1RADIATOR 0005 1RADIATOR 0007 1BLOWER 0008 1W(AUTO AIR CONDITIONER)

55908BCABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main87286-32020iCV30,SV3#,VZV3#199007-199406

55909BCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-32130iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199206

87106ASERVO SUB-ASSY, DAMPER

main87106-32070iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

MODE CONTROL

main87106-32080iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

AIR MIX CONTROL

main87106-32100iCV30,SV3#..GT,VR,VX,ZE,ZX199007-199206

main87106-32110iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-32080iSV3#,VZV3#199007-199406

main87107-32090iCV30199007-199406

87150RADIATOR ASSY, HEATER

main87150-32170iSV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

main87150-32180iVZV3#199007-199206

main87150-32190iSV3#..GT,VR,VX,ZE,ZX199007-199206

main87150-32200iCV30,SV3#..GT,VR,VX,ZE,ZX199007-199206

main87150-32210iSV3#..ETO,LUM,VL,XT199206-199406

main87150-32220iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199206

main87150-32230iCV30..VR,ZE199007-199206

main87150-32240iCV30..ETO,ZV199007-199206

main87150-32250iSV3#..ETO,LUM,VL,XT199206-199406

main87150-32260iCV30..ETO,LUM199206-199406

main87150-32270iCV30,SV3#..ETO,LUM,VL,XT199206-199406

main87150-32280iCV30..VX,ZX199206-199406

87201DDUCT SUB-ASSY, AIR

main87201-32220iCV30,SV3#,VZV3#199007-199406

87201EDUCT SUB-ASSY, AIR, NO.2

main87201-32230iCV30,SV3#,VZV3#199007-199406

9017906239

main90179-06239

9053025010

main90530-25010

9 parts on this diagram · 5 diagrams in section
