HORN

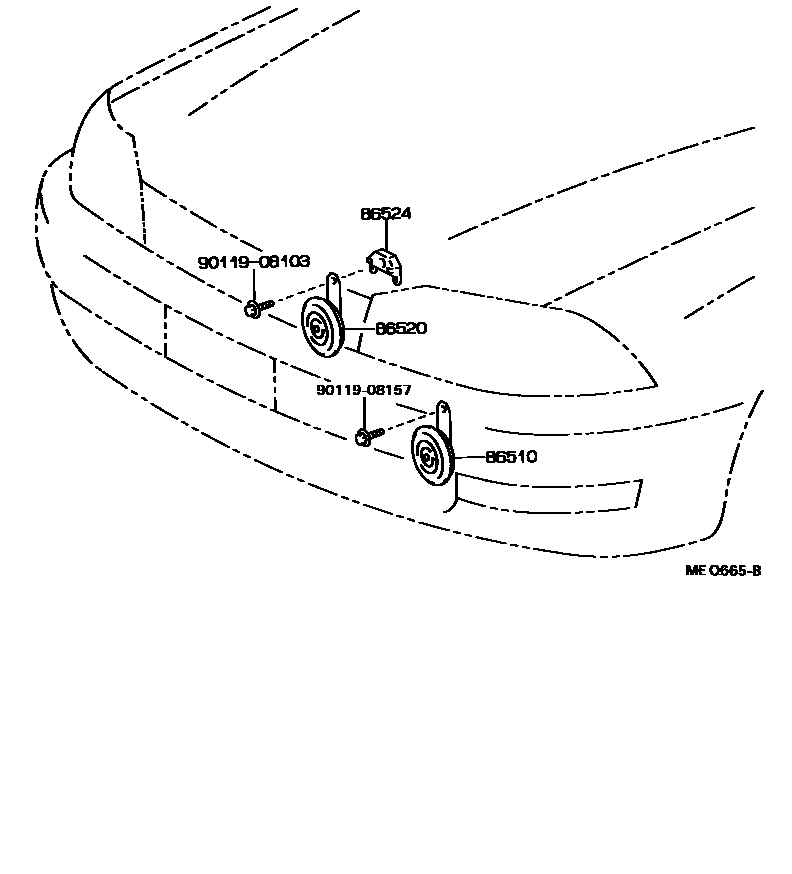

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-32070i199007-199406

86520HORN ASSY, LOW PITCHED

main86520-32040i199007-199406

86524SPACER, HORN

main86524-32020i199007-199406

9011908103

main90119-08103

9011908157

main90119-08157

5 parts on this diagram · 1 diagram in section
