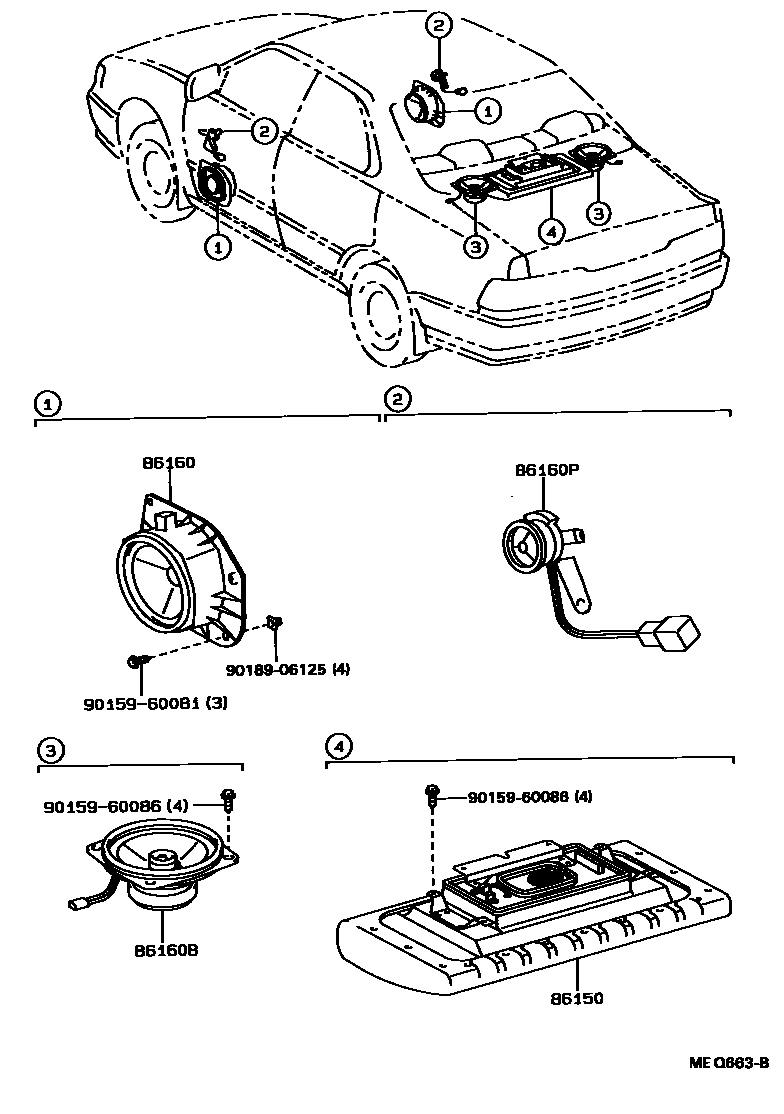

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-32200iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199007-199406

86160SPEAKER ASSY, FRONT NO.1

main86160-32280iCV30,SV30,35..VL,XT,ZV199007-199406

main86160-32290iCV30,SV30,35..VL,XT,ZV199007-199406

main86160-32300iSV30..VL,XT199007-199406

main86160-32300iCV30,SV3#..SED..(ETO,LUM,VE)199007-199406

main86160-32310iSV30..VL,XT199007-199406

main86160-32310iCV30,SV3#..SED..(ETO,LUM,VE)199007-199406

main86160-32340iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199406

main86160-32350iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199406

main86160-32380iVZV30199007-199105

main86160-32380iCV30,SV3#..HT..(ETO,VE)199007-199406

main86160-32390iVZV30199007-199406

main86160-32390iCV30,SV3#..HT..(ETO,VE)199007-199105

main86160-32420iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199406

main86160-32430iCV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX)199007-199406

86160BSPEAKER ASSY, REAR

main86160-32260iCV30,SV30,35..SED..ETO199312-199406

main86160-32260iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main86160-32260iCV30,SV30,35..SED..ETO199312-199406

main86160-32270iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199007-199406

86160PSPEAKER ASSY, FRONT NO.2

main86160-32240iSV32,33..SED..VX;CV30,SV30,35,VZV3#..PRO,VR,VX,ZE,ZX199007-199406

main86160-32240iSV32,33..SED..VX;CV30,SV30,35,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

main86160-32250iSV32,33..ZX;SV32,33..HT..VX199007-199406

main86160-32250iSV32,33..SED..VX;CV30,SV30,35,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

9015960081

main90159-60081

9015960086

main90159-60086

9018906125

main90189-06125

7 parts on this diagram · 1 diagram in section
