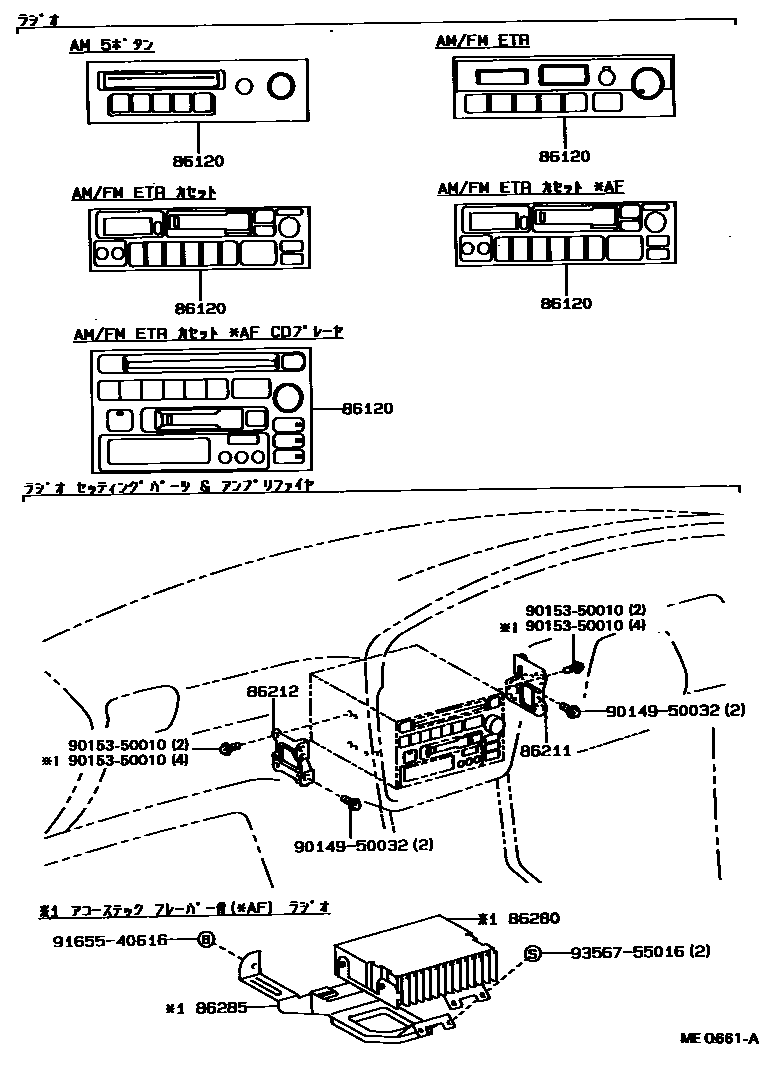

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO & AMPRIFIER 0002 1CONDENSER 0003 1NOISE FILTER

86120RECEIVER ASSY, RADIO

main86120-10290iSV30..VL,XT199007-199206

main86120-20870iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199105

main86120-20871iSV32,33..ZX;SV32,33..HT..VX199206-199406

main86120-27010iSV30..VL,XT199206-199406

main86120-28200iCV30,SV3#..ETO,LUM199206-199406

sub86120-28240

main86120-2B410iCV30,SV30,35..LUM199312-199406

main86120-32450iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199105-199206

main86120-32460iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199105

main86120-32470iVZV30199007-199105

86211BRACKET, RADIO, NO.1

main86211-32060iCV30,SV3#,VZV3#199007-199406

86212BRACKET, RADIO, NO.2

main86212-32060iCV30,SV3#,VZV3#199007-199406

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-32100iSV32,33..ZX;SV32,33..HT..VX199206-199406

main86280-32110iCV30,SV30,35..HT..(VR,VX)199206-199406

main86280-32120iSV32,33..ZX199206-199406

86285BRACKET, AMPLIFIER, NO.1

main86285-32040iSV32,33..ZX;SV32,33..HT..VX199206-199406

main86285-32050iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199105-199206

9014950032

main90149-50032

9015350010

main90153-50010

9165540616

main91655-40616

9356755016

main93567-55016

9 parts on this diagram · 3 diagrams in section
