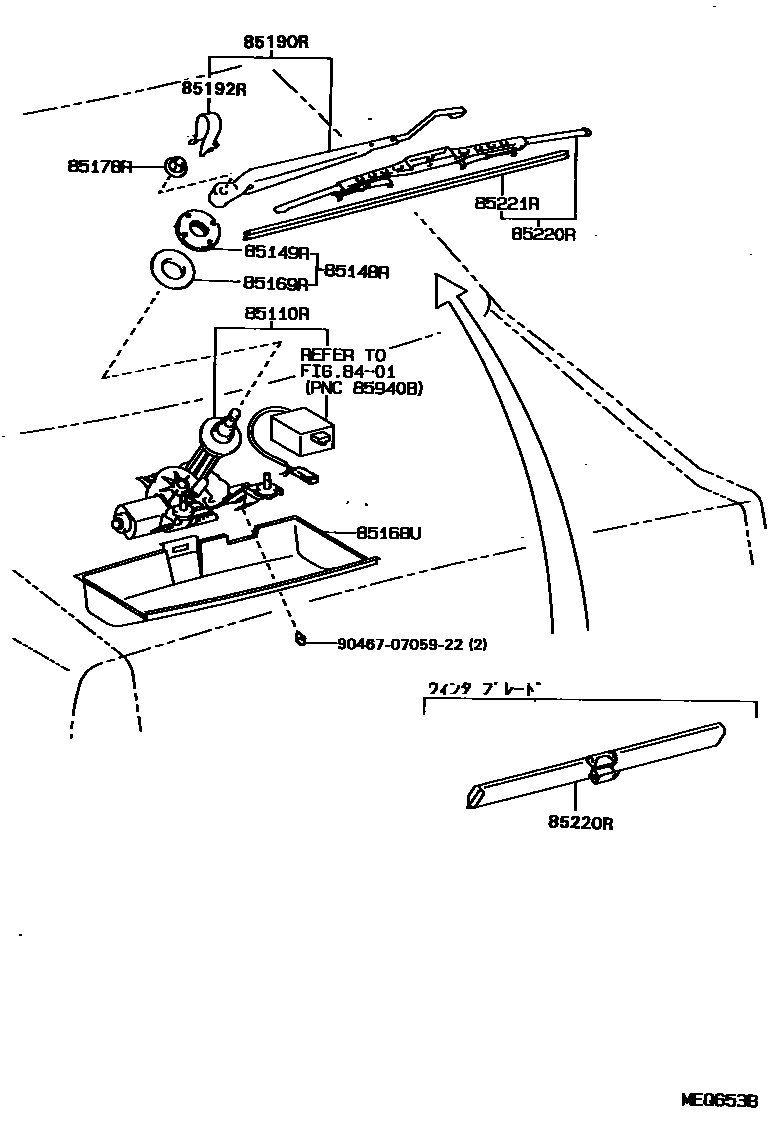

REAR WIPER

8401

85110RMOTOR ASSY, REAR WIPER

main85130-32280iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

main85130-32280iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

main85130-32290iCV30,SV3#..HT..(GT,VR,VX)199007-199406

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85133-12770iCV30,SV3#..SED..(VR,VX,ZE,ZX)199308-199406

main85133-12770iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199308-199406

main85148-12020iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199308

main85148-12020iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199308

85149RNUT, WIPER MOTOR

main90179-22013iCV30,SV3#..GT,VR,VX,ZE,ZX199007-199206

85168UCOVER, REAR WIPER

main85131-32280iCV30,SV3#..SED..(GT,VR,VX,ZE,ZX)199007-199206

main85131-32280iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

main85131-32290iCV30,SV3#..HT..(GT,VR,VX)199007-199406

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28002iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

main90210-28002iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iVZV3#199007-199206

main90179-06158iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

85190RARM ASSY, REAR WIPER

main85241-32010iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

main85241-32010iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

85192RCOVER, REAR WIPER ARM

main85192-13060iVZV3#199007-199206

main85192-13060iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

85220RBLADE ASSY, REAR WIPER

main85220-1A030iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199105

sub85291-30030

sub85291-33010

main85242-32010iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

main85242-32010iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

main85291-33010iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199109-199406

85221RBLADE, REAR WIPER

main85243-32010iCV30,SV3#..SED..(VR,VX,ZE,ZX)199206-199406

sub85214-22360

main85243-32010iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

sub85214-22360

904670705922

main90467-0705922

12 parts on this diagram · 1 diagram in section
