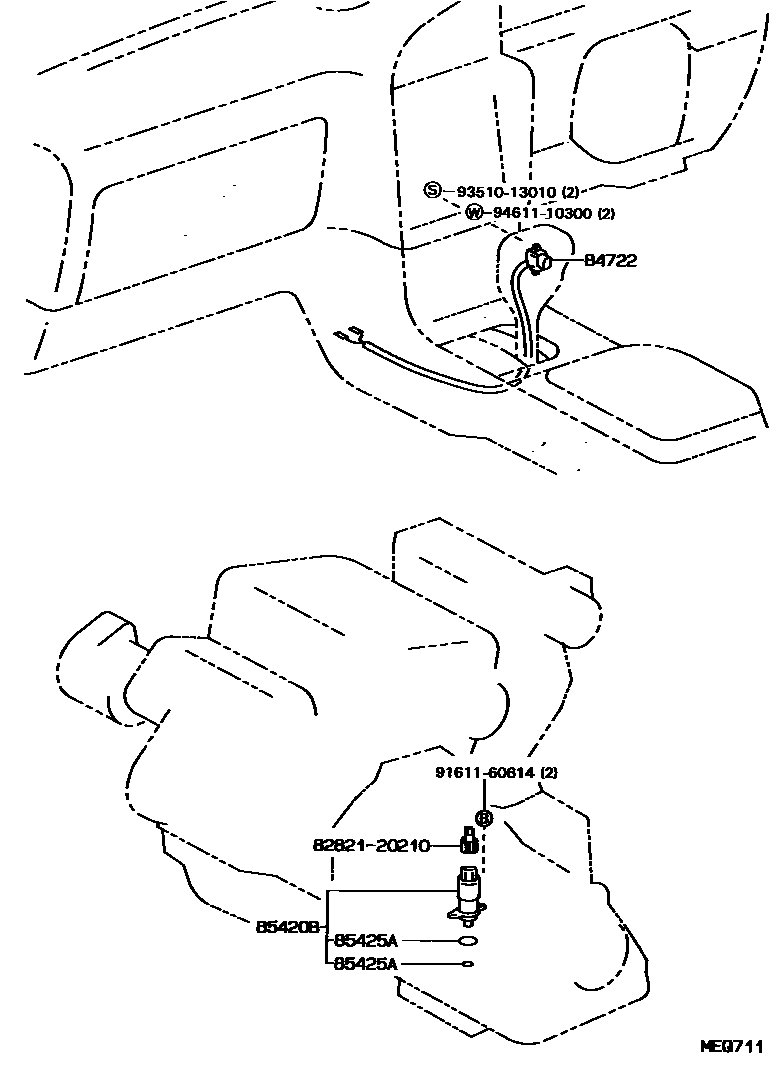

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT 0003 1ECT 0004 1ECT

84722SWITCH, TRANSMISSION CONTROL

main84722-32060-02iCV30,SV3#,VZV3#..4FC199007-199206

TAUPE,TRIM9#

main84722-32060-03iCV30,SV3#,VZV3#..4FC199007-199206

MEDIUM GRAY,TRIM1#

main84722-32060-06iCV30,SV3#,VZV3#..HT..4FC199007-199206

SABLE,TRIM4#

main84722-32070-B0iCV30,SV3#,VZV3#..4FC199206-199406

MI.GRAY,TRIM1#

main84722-32070-E0iCV30,SV3#,VZV3#..4FC199206-199406

OAK,TRIM4#

main84722-32070-K0iCV30,SV3#,VZV3#..4FC199206-199406

TAUPE,TRIM9#

85420SOLENOID ASSY, TRANSMISSION

main85420-20110iSV32,33..4FC199206-199406

main85420-20130iSV32,33..4FC199007-199206

main85420-32021iSV32,33..4FC199007-199406

main85420-32041iSV32,33..4FC199007-199206

main85420-32102iSV35,VZV3#..4FC199007-199401

main85420-32120iSV35,VZV3#..4FC199007-199206

sub85420-32121

main85420-32140iSV32,33..4FC199206-199406

85420BSOLENOID ASSY, TRANSMISSION

main85420-20100iCV30,SV30..4FC199007-199406

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iCV30,SV30..4FC199007-199406

ID=7

main96721-19017iCV30,SV30..4FC199007-199406

ID=17

8282120210RETAINER, HEADLAMP HARNESS

main82821-20210

9161160614

main91611-60614

9351013010

main93510-13010

9461110300

main94611-10300

8 parts on this diagram · 4 diagrams in section
