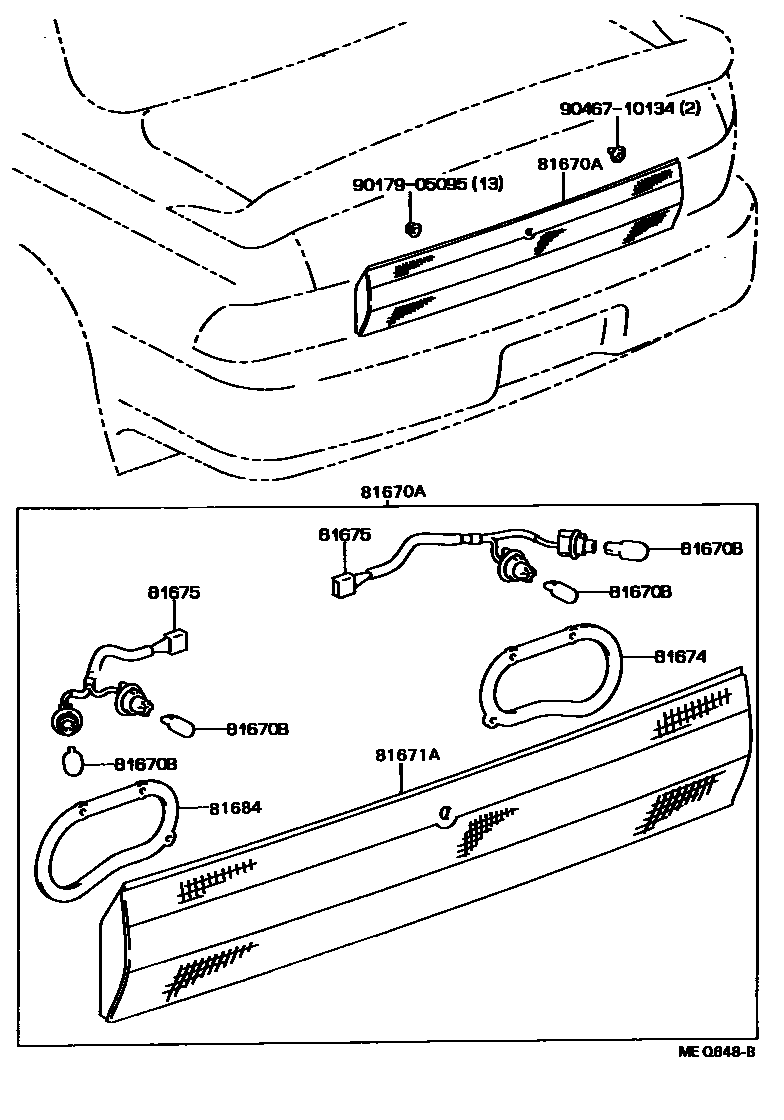

BACK UP LAMP

0001 1 0002 1 0003 1 0004 1

81670ALAMP ASSY, BACK-UP

main81580-32010iCV30,SV3#..CAM199206-199406

main81670-32060iCV30,SV3#..CAM199007-199206

main81670-32070iCV30,SV3#..VIS..SED199206-199406

main81670-32080iVZV3#199007-199206

81670BBULB(FOR BACK-UP LAMP)

main90981-11039×2iCV30,SV3#..VIS..SED199206-199406

sub90981-11059

main90981-13044×2iSV30,32,33..CAM199101-199406

main90981-13050×2iVZV3#199007-199206

sub90981-13043

main90981-13051iCV30,SV3#..CAM199007-199101

sub90981-11048

81671ALENS & BODY, BACK-UP LAMP

main81581-32010iCV30,SV3#..CAM199206-199406

main81671-32060iCV30,SV3#..CAM199007-199206

main81671-32070iCV30,SV3#..VIS..SED199206-199406

main81671-32080iVZV3#199007-199206

81674GASKET, BACK-UP LAMP BODY, RH

main81672-32070iCV30,SV3#..VIS..SED199206-199406

main81674-32060iCV30,SV3#..CAM199007-199406

81675SOCKET & WIRE, BACK-UP LAMP

main81585-32010×2iCV30,SV3#..CAM199206-199406

main81675-32060×2iCV30,SV3#..CAM199007-199206

main81675-32070×2iCV30,SV3#..VIS..SED199206-199406

main90075-99032×2iVZV3#199007-199206

81684GASKET, BACK UP LAMP BODY, LH

main81672-32070iCV30,SV3#..VIS..SED199206-199406

main81674-32060iCV30,SV3#..CAM199007-199406

9017905095

main90179-05095

9046710134

main90467-10134

8 parts on this diagram · 4 diagrams in section
