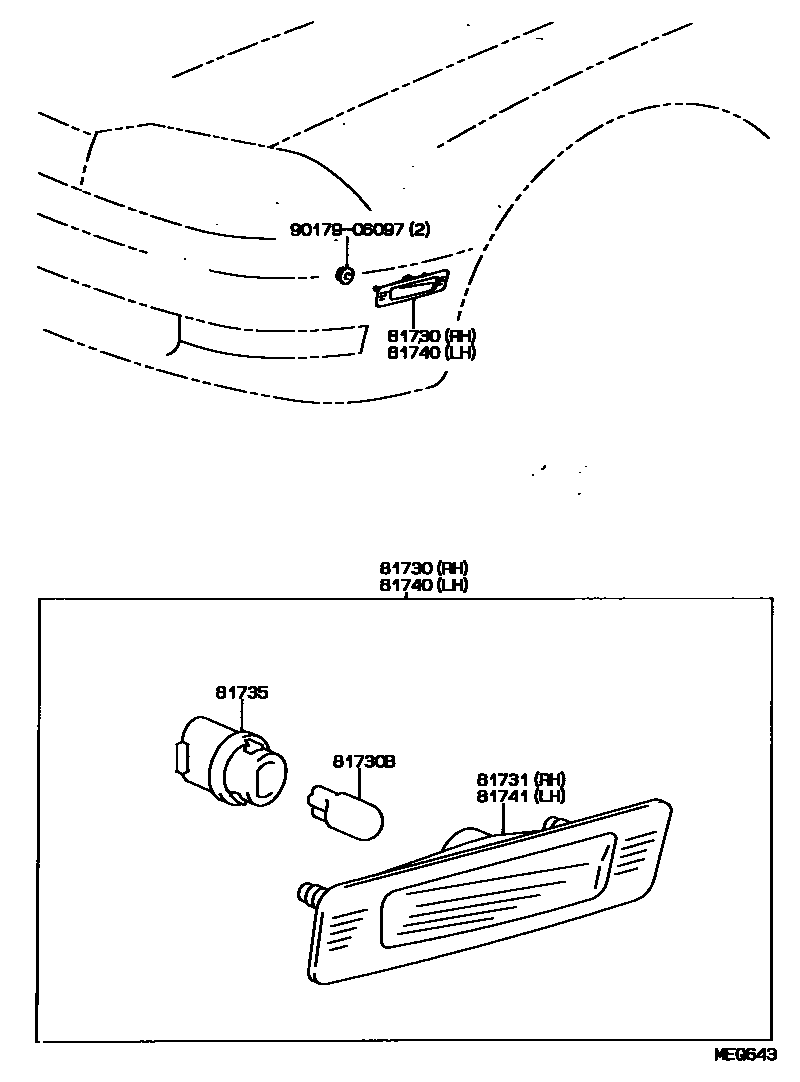

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-32010iCV30,SV3#,VZV3#..HT199007-199206

main81730-32020iCV30,SV3#,VZV3#..HT199206-199406

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iCV30,SV3#,VZV3#..HT199007-199406

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-32010iCV30,SV3#,VZV3#..HT199007-199206

main81731-32020iCV30,SV3#,VZV3#..HT199206-199406

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-12180×2iCV30,SV3#,VZV3#..HT199007-199206

main90075-99079×2iCV30,SV3#,VZV3#..HT199206-199406

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-32010iCV30,SV3#,VZV3#..HT199007-199206

main81740-32020iCV30,SV3#,VZV3#..HT199206-199406

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-32010iCV30,SV3#,VZV3#..HT199007-199206

main81741-32020iCV30,SV3#,VZV3#..HT199206-199406

9017906097

main90179-06097

7 parts on this diagram · 1 diagram in section
