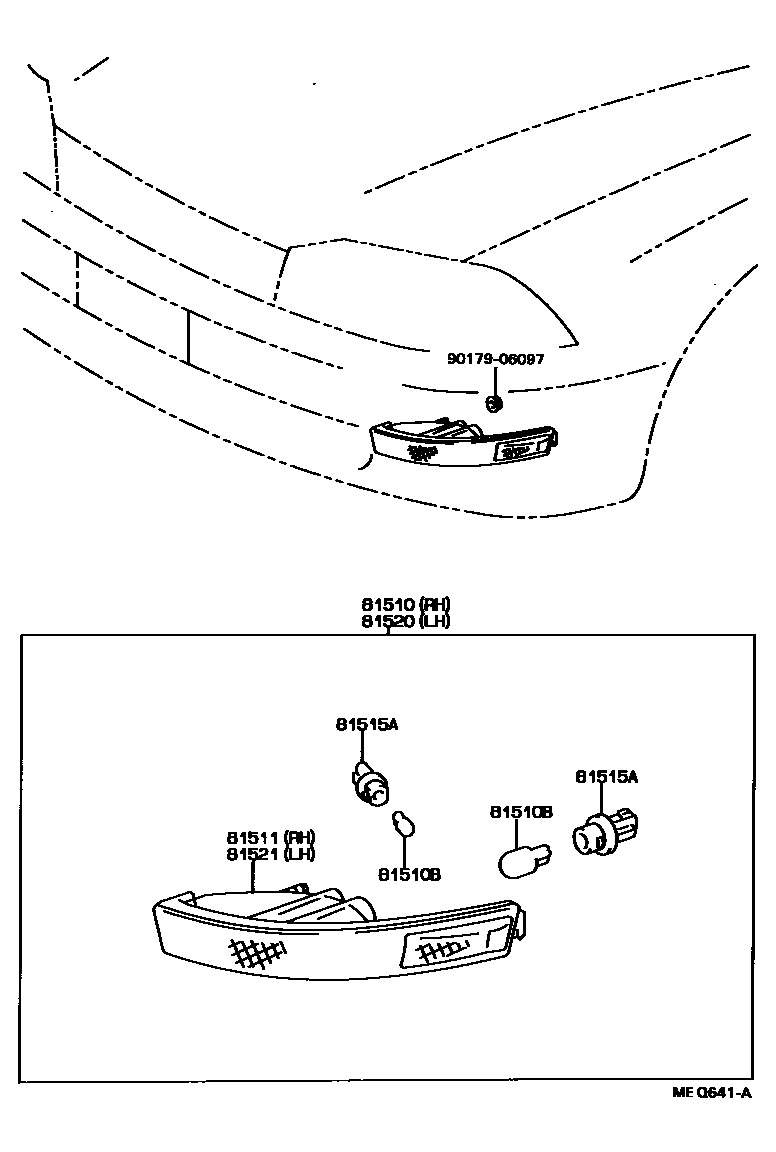

FRONT TURN SIGNAL LAMP

0001 1 0002 1 0003 1 0004 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-32150iCV30,SV3#..SED199206-199406

main81510-32160iCV30,SV3#..SED199007-199206

main81510-32170iVZV3#199007-199206

main81510-32180iCV30,SV3#..HT199007-199206

main81510-32190iVZV3#199206-199406

main81510-32200iCV30,SV3#..HT199206-199406

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iVZV3#;CV30,SV3#..SED199206-199406

main90981-13050×2iCV30,SV3#..HT199101-199406

main99132-11210×2iVZV3#199007-199206

main99132-12050×2iCV30,SV3#..SED199007-199406

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-32150iCV30,SV3#..SED199206-199406

main81511-32160iCV30,SV3#..SED199007-199206

main81511-32170iVZV3#199007-199206

main81511-32180iCV30,SV3#..HT199007-199206

main81511-32190iVZV3#199206-199406

main81511-32200iCV30,SV3#..HT199206-199406

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-32180×2iCV30,SV3#..HT199007-199206

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main81615-87705×2iVZV3#199007-199206

main81735-12180×2iCV30,SV3#..SED199007-199206

SIDE TURN

main90075-99032×2iCV30,SV3#..SED199007-199206

FRONT TURN

main90075-99079×2iCV30,SV3#..SED199206-199406

SIDE TURN

main90075-99080×2iCV30,SV3#,VZV3#..HT199206-199406

FRONT TURN

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-32150iCV30,SV3#..SED199206-199406

main81520-32160iCV30,SV3#..SED199007-199206

main81520-32170iVZV3#199007-199206

main81520-32180iCV30,SV3#..HT199007-199206

main81520-32190iVZV3#199206-199406

main81520-32200iCV30,SV3#..HT199206-199406

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-32150iCV30,SV3#..SED199206-199406

main81521-32160iCV30,SV3#..SED199007-199206

main81521-32170iVZV3#199007-199206

main81521-32180iCV30,SV3#..HT199007-199206

main81521-32190iVZV3#199206-199406

main81521-32200iCV30,SV3#..HT199206-199406

9017906097

main90179-06097

8 parts on this diagram · 4 diagrams in section
