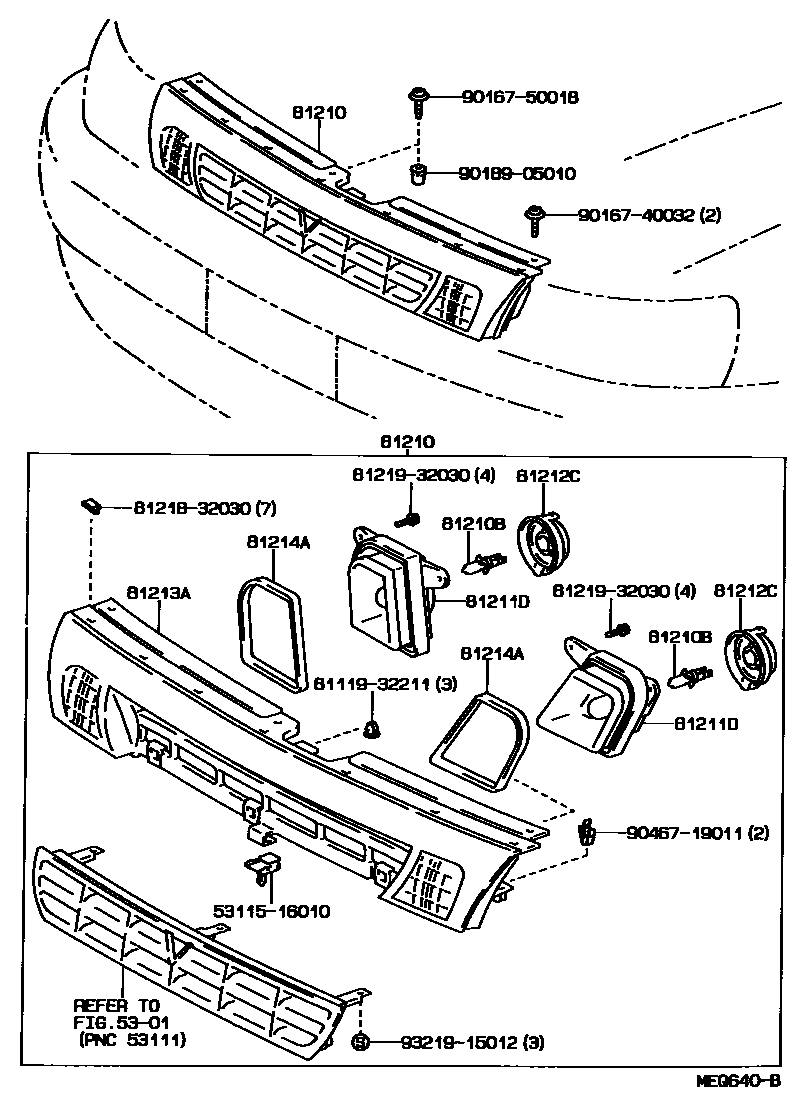

FOG LAMP

0001 1 0002 1

5301RADIATOR GRILLE

→ Go to FIG 53-01

81210LAMP ASSY, FOG

main81210-32030iCV30,SV3#..HT199007-199206

main81210-32040iCV30,SV3#..HT199206-199209

main81210-32041iCV30,SV3#..HT199209-199406

main81220-32040iCV30,SV3#..HT199206-199209

main81220-32041iCV30,SV3#..HT199209-199406

81210BBULB, FOG LAMP

main90981-13039×2iCV30,SV3#..HT199007-199406

81211LENS, FOG LAMP

main81211-32040iCV30,SV3#..HT199206-199406

main81221-32040iCV30,SV3#..HT199206-199406

81211DLAMP UNIT, FOG LAMP

main81211-32030iCV30,SV3#..HT199007-199206

main81221-32030iCV30,SV3#..HT199007-199206

81212CCOVER, FOG LAMP

main81139-32040×2iCV30,SV3#..HT199206-199406

main81212-32030×2iCV30,SV3#..HT199007-199206

81213ABODY, FOG LAMP

main81213-32030iCV30,SV3#..HT199007-199206

81214APACKING, FOG LAMP BODY

main81214-32030iCV30,SV3#..HT199007-199206

main81224-32030iCV30,SV3#..HT199007-199206

5311516010CUSHION, RUBBER(FOR RADIATOR GRILLE)

main53115-16010

8111932211SCREW, HEADLAMP

main81119-32211

8121832030REFLECTOR, FOG LAMP

main81218-32030

8121932030BOLT, FOG LAMP

main81219-32030

9016740032

main90167-40032

9016750018

main90167-50018

9018905010

main90189-05010

9046719011

main90467-19011

9321915012

main93219-15012

17 parts on this diagram · 2 diagrams in section
