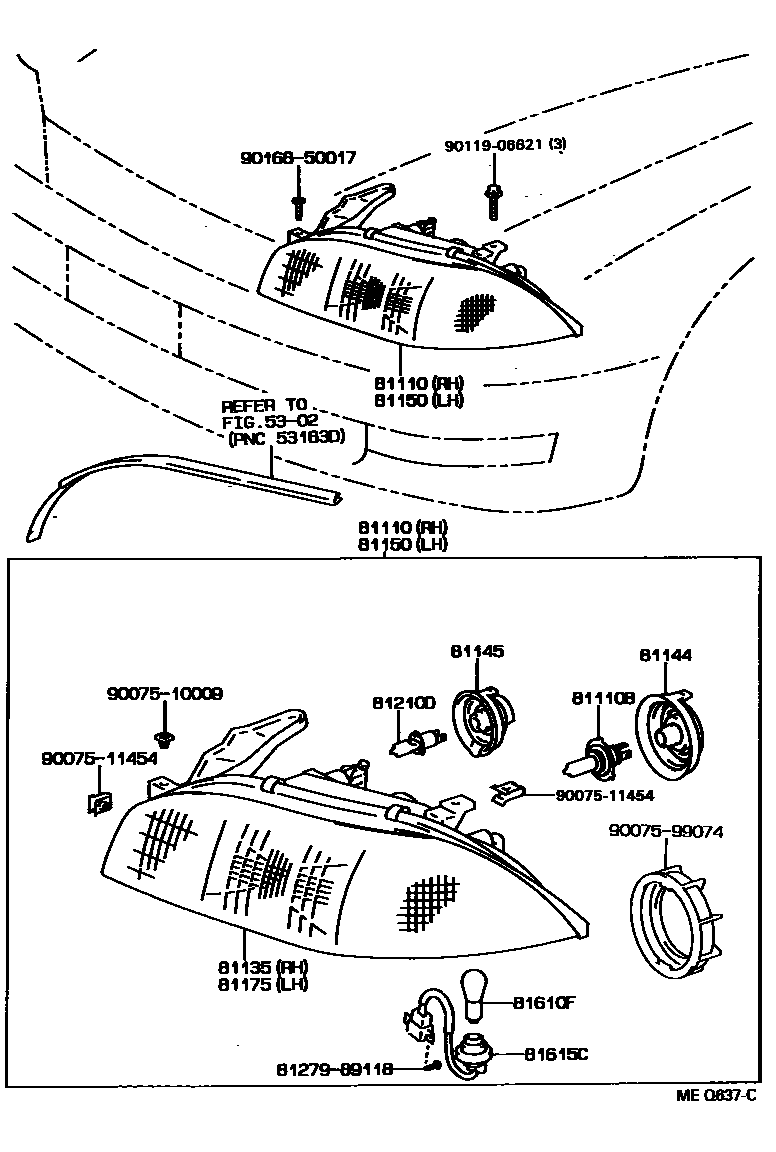

HEADLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5302

81110HEADLAMP ASSY, RH

main81110-32270iCV30,SV30..SED..ETO199105-199206

main81110-32280iCV30,SV30,35..SED..(ETO,VL,XT,ZV)199007-199206

main81110-32310iVZV3#199007-199206

main81110-32320iCV30,SV30,35..HT..ETO199007-199206

main81110-32330iCV30,SV3#..HT..(GT,VE,VR,VX)199007-199206

main81110-32350iVZV3#199206-199406

main81110-32370iCV30,SV3#..HT..(VR,VX)199206-199406

main81110-32380iCV30,SV3#..HT..ETO199206-199406

main81120-32300iCV30,SV3#..SED..(LUM,VR,VX,ZE,ZX)199206-199306

main81120-32301iCV30,SV30,35..SED..ETO199308-199406

main81120-32340iCV30,SV3#..SED..(ETO,VL,XT)199206-199306

main81120-32341iCV30,SV3#..SED..(ETO,VL,XT)199306-199406

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iCV30,SV3#,VZV3#199007-199206

sub90981-13058

main90981-22002×2iCV30,SV3#..HT199206-199406

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-32270iCV30,SV3#..SED199007-199206

main81130-32300iCV30,SV3#..SED..(LUM,VR,VX,ZE,ZX)199206-199306

main81130-32301iCV30,SV30,35..SED..ETO199308-199406

main81130-32310iVZV3#199007-199112

main81130-32311iVZV3#199112-199206

main81130-32320iCV30,SV3#..HT199007-199206

main81130-32340iCV30,SV3#..SED..(ETO,VL,XT)199206-199306

main81130-32341iCV30,SV3#..SED..(ETO,VL,XT)199306-199406

main81130-32350×2iVZV3#199206-199406

main81130-32370iCV30,SV3#..HT199206-199406

81144COVER, HEADLAMP, NO.1

main81139-20730iCV30,SV3#..SED199007-199012

main81139-23010×2iCV30,SV3#..HT199112-199206

main81179-32310×2iCV30,SV3#,VZV3#..HT199206-199406

main90075-99016iCV30,SV3#..SED199007-199012

main90075-99075×2iCV30,SV3#..SED199206-199406

81145COVER, HEADLAMP, NO.2

main81139-32310×2iVZV3#199007-199406

main90075-99008×2iCV30,SV3#..SED199007-199206

main90075-99090×2iCV30,SV3#..SED199206-199406

81150HEADLAMP ASSY, LH

main81150-32270iCV30,SV30..SED..ETO199105-199206

main81150-32280iCV30,SV30,35..SED..(ETO,VL,XT,ZV)199007-199206

main81150-32310iVZV3#199007-199206

main81150-32320iCV30,SV30,35..HT..ETO199007-199206

main81150-32330iCV30,SV3#..HT..(GT,VE,VR,VX)199007-199206

main81150-32350iVZV3#199206-199406

main81150-32370iCV30,SV30,35..HT..ETO199308-199406

main81150-32380iCV30,SV3#..HT..ETO199206-199406

main81160-32300iCV30,SV3#..SED..(LUM,VR,VX,ZE,ZX)199206-199306

main81160-32301iCV30,SV3#..SED..(LUM,VR,VX,ZE,ZX)199306-199406

main81160-32340iCV30,SV3#..SED..(ETO,VL,XT)199206-199306

main81160-32341iCV30,SV3#..SED..(ETO,VL,XT)199306-199406

81175UNIT ASSY, HEADLAMP, LH

main81170-32270iCV30,SV3#..SED199007-199206

main81170-32300iCV30,SV3#..SED..(LUM,VR,VX,ZE,ZX)199206-199306

main81170-32301iCV30,SV30,35..SED..ETO199308-199406

main81170-32310iVZV3#199007-199112

main81170-32311iVZV3#199112-199206

main81170-32320iCV30,SV3#..HT199007-199206

main81170-32340iCV30,SV3#..SED..(ETO,VL,XT)199206-199306

main81170-32341iCV30,SV3#..SED..(ETO,VL,XT)199306-199406

main81170-32350iVZV3#199206-199406

main81170-32370iCV30,SV3#..HT199206-199406

81210DBULB, FOG LAMP

main90981-13018×2iVZV3#199007-199406

main90981-13027×2iCV30,SV3#..SED..(GT,LUM,VE,VR,VX,ZE,ZX)199007-199008

81610FBULB(FOR CLEARANCE LAMP)

main90981-12010×2iCV30,SV30,35..SED..ETO199304-199308

main90981-13036×2iCV30,SV30,35..SED..ETO199308-199406

main99132-12050×2iCV30,SV30,35..ETO,VL,XT,ZV199007-199206

main99132-21210×2iCV30,SV3#..HT..ETO199206-199406

81615CSOCKET & WIRE, CLEARANCE LAMP

main81125-32270×2iCV30,SV30..SED..ETO199105-199206

main81125-32280×2iCV30,SV30,35..SED..(ETO,VL,XT,ZV)199007-199206

main81125-32300×2iCV30,SV30,35..SED..ETO199308-199406

main81125-32340×2iCV30,SV3#..SED..(ETO,VL,XT)199206-199406

main81138-32310×2iCV30,SV30..HT..ETO199105-199206

main81138-32320×2iCV30,SV30,35..HT..ETO199007-199206

main81138-32350×2iVZV3#199206-199406

main81138-32370×2iCV30,SV3#..HT199206-199406

8127989118WASHER, SIDE TURN SIGNAL LAMP

main81279-89118

9007510009

main90075-10009

9007511454

main90075-11454

9007599074

main90075-99074

9011906621

main90119-06621

9016850017

main90168-50017

17 parts on this diagram · 6 diagrams in section
