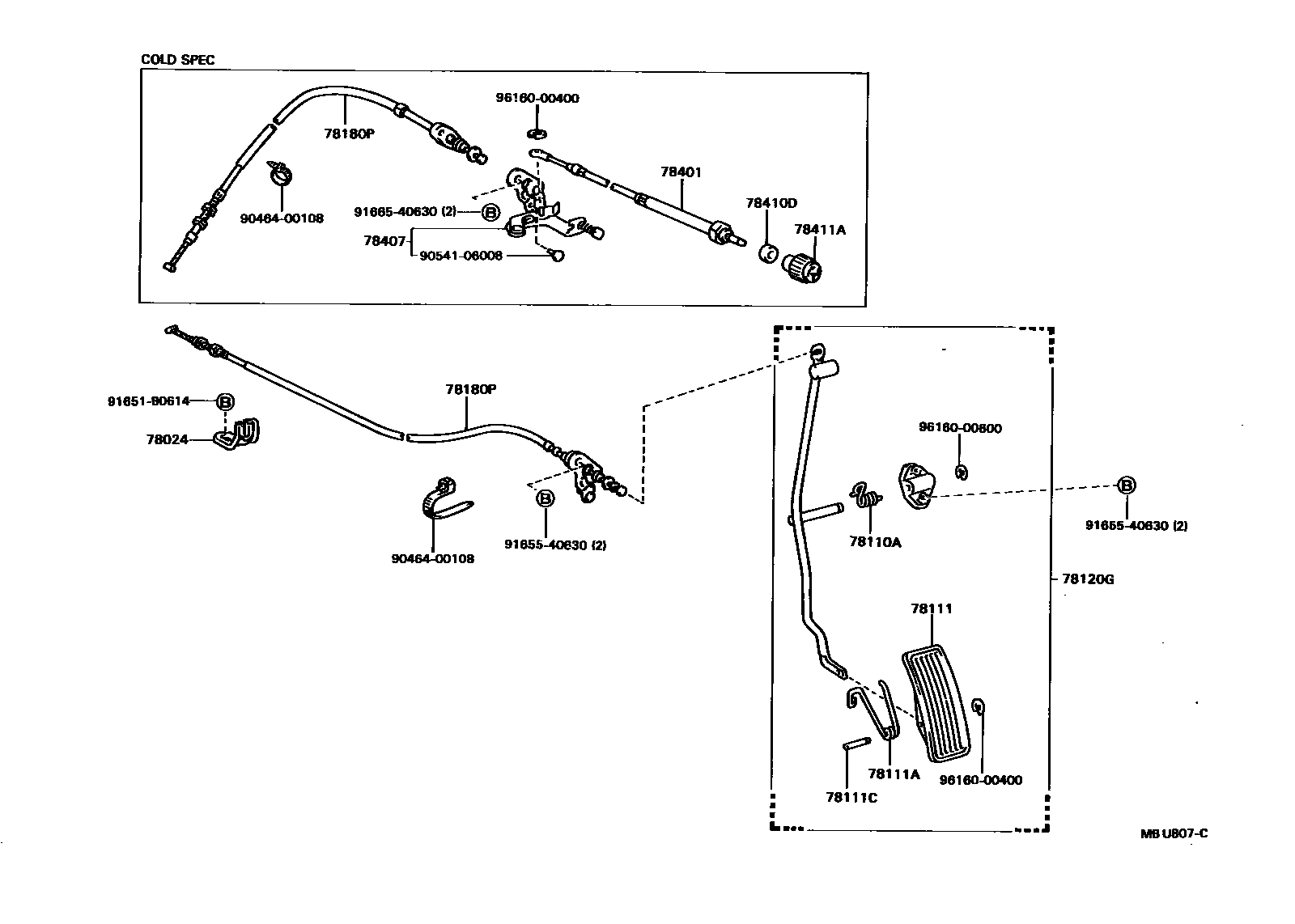

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20090iSV30199206-199406

main78024-20120iSV32,33..GT199007-199206

main78024-20130iSV30199007-199206

main78024-32110iVZV30,31199007-199206

main78024-32120iSV32,33,35..ETO,LUM,VE,VX,ZV,ZX199007-199406

main78024-32140iCV30199007-199406

main78024-32150iVZV32,33199105-199406

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iCV30,SV3#,VZV3#..4FC199011-199406

main90508-23069iCV30,SV3#,VZV3#..4FC199007-199011

main90508-28004iCV30,SV3#,VZV30,31..5F199007-199406

78111PEDAL, ACCELERATOR

main78111-12100iCV30,SV3#,VZV3#199007-199406

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23119iCV30,SV3#,VZV3#199007-199406

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCV30,SV3#,VZV3#199007-199406

78120GROD ASSY, ACCELERATOR PEDAL

main78120-32120iSV3#,VZV30,31..5F199007-199406

main78120-32130iSV3#,VZV3#..4FC199007-199406

main78120-32140iCV30..5F199007-199406

main78120-32150iCV30..4FC199007-199406

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-32100iCV30199007-199406

main78180-32150iCV30..5F199007-199406

main78180-32181iSV30199007-199206

main78180-32200iVZV3#199112-199406

main78180-32380iSV32,33..GT199007-199206

main78180-32400iSV32,33,35..ETO,LUM,VE,VX,ZV,ZX199007-199406

main78180-32420iVZV3#199007-199112

main78180-32440iSV30199206-199406

78401CABLE SUB-ASSY, THROTTLE CONTROL

main78401-32030iCV30..5F199007-199406

78407ARM SUB-ASSY, THROTTLE CONTROL

main78407-32020iCV30..5F199007-199406

78410DNUT, THROTTLE

main90179-11007iCV30..5F199007-199406

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iCV30..5F199007-199406

9046400108

main90464-00108

9054106008

main90541-06008

91651B0614

main91651-B0614

9165540630

main91655-40630

9166540630

main91665-40630

9616000400

main96160-00400

9616000600

main96160-00600

18 parts on this diagram · 5 diagrams in section
