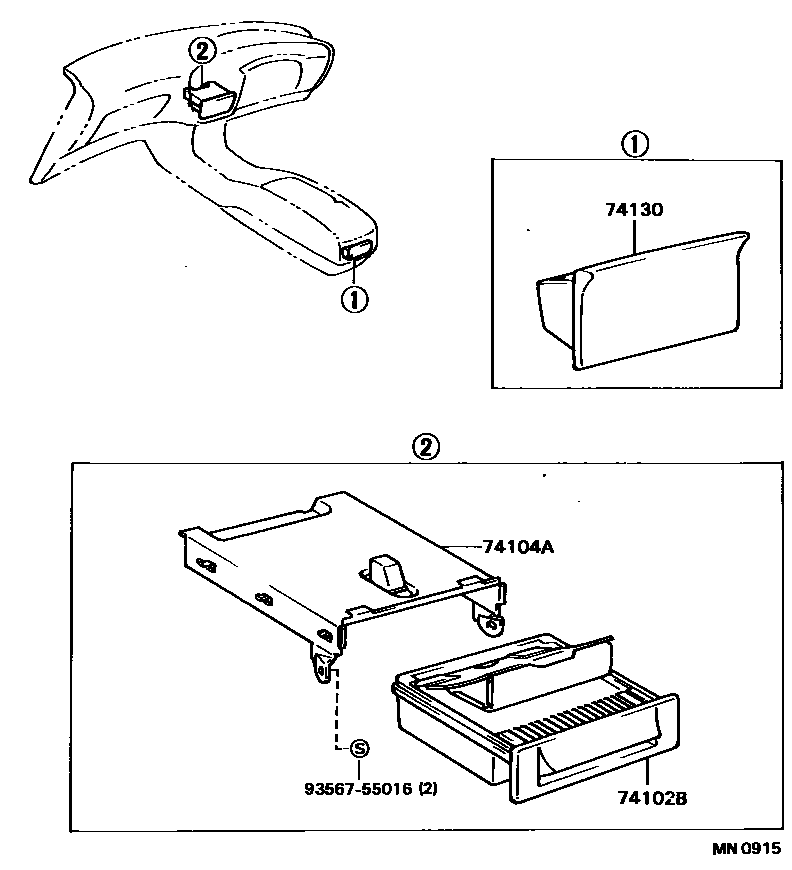

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-32060-02iCV30,SV30,35..ETO,VL,XT,ZV199007-199206

TAUPE,TRIM9#

main74102-32060-03iCV30,SV30,35..ETO,VL,XT,ZV199007-199206

MEDIUM GRAY,TRIM1#

main74102-32060-06iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

main74102-32060-B0iSV35..LUM199304-199403

main74102-32060-B0iSV30..VL,XT199206-199308

MI.GRAY,TRIM1#

main74102-32060-E0iSV30..VL,XT199206-199308

OAK,TRIM4#

main74102-32060-E0iSV35..LUM199304-199403

main74102-32060-K0iSV30..VL,XT199206-199308

TAUPE,TRIM9#

main74102-32061-B0iSV30..VL,XT199308-199406

MI.GRAY,TRIM1#

main74102-32061-E0iSV30..VL,XT199308-199406

OAK,TRIM4#

main74102-32061-K0iSV30..VL,XT199308-199406

TAUPE,TRIM9#

main74102-32070-02iCV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main74102-32070-02iCV30,SV30..ETO199105-199206

main74102-32070-03iCV30,SV30..ETO199106-199206

main74102-32070-03iCV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main74102-32070-06iCV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)199007-199206

SABLE,TRIM4#

main74102-32070-B0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199206-199308

MI.GRAY,TRIM1#

main74102-32070-E0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199206-199308

OAK,TRIM4#

main74102-32070-K0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199206-199308

TAUPE,TRIM9#

main74102-32071-B0iVZV3#199308-199406

MI.GRAY,MI.GRAY,TRIM1#

main74102-32071-E0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199308-199406

OAK,TRIM4#

main74102-32071-K0iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199308-199406

TAUPE,TRIM9#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-32050iSV35..LUM199304-199403

main74104-32050iSV30..VL,XT199007-199406

main74104-32060iCV30,SV3#,VZV3#..ETO,LUM,PRO,VR,VX,ZE,ZX199007-199406

main74104-32060iCV30,SV30..ETO199105-199206

74130RECEPTACLE ASSY, REAR ASH

main74109-32040-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main74109-32040-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main74109-32040-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main74109-32040-B0iCV30,SV3#,VZV3#199206-199406

MEDIUM GRAY,TRIM1#

main74109-32040-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main74109-32040-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

9356755016

main93567-55016

4 parts on this diagram · 1 diagram in section
