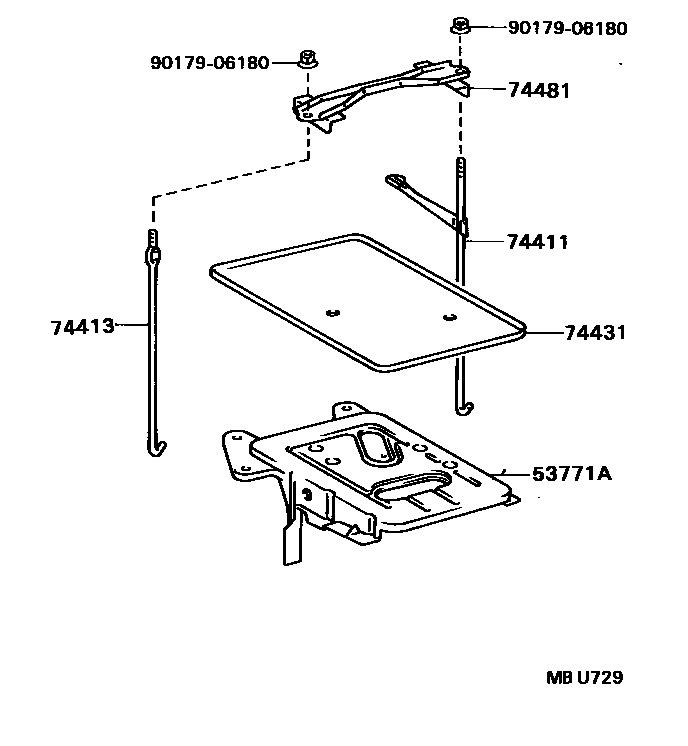

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-32030iCV30,SV3#,VZV3#199007-199406

74411CARRIER, BATTERY

main74403-32060iCV30,SV3#,VZV3#199206-199209

main74403-32061iCV30,SV3#,VZV3#199209-199406

74413BOLT, BATTERY CLAMP

main74451-32060iCV30,SV3#,VZV3#199007-199406

74431TRAY, BATTERY

main74431-14020iSV30;VZV30,31..5F;SV32,33,35..4FC..(ETO,LUM,VE,VX,ZV,ZX); SV32,33,35..5F..(ETO,LUM,VE,VX,ZV,ZX)199007-199406

main74431-14030iCV30..5F199007-199406

main74431-14040iCV30..4FC; CV30..5F199007-199406

main74431-14050iSV32,33,35..5F..(ETO,LUM,VE,VX,ZV,ZX)199007-199406

main74431-20010iVZV30,31..5F199007-199206

74481CLAMP, BATTERY HOLD DOWN

main74404-32090iCV30199007-199008

main74404-32091iCV30199008-199406

main74404-32100iVZV30,31..5F;SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main74404-32110iVZV30,31..5F199007-199206

9017906180

main90179-06180

6 parts on this diagram · 1 diagram in section
