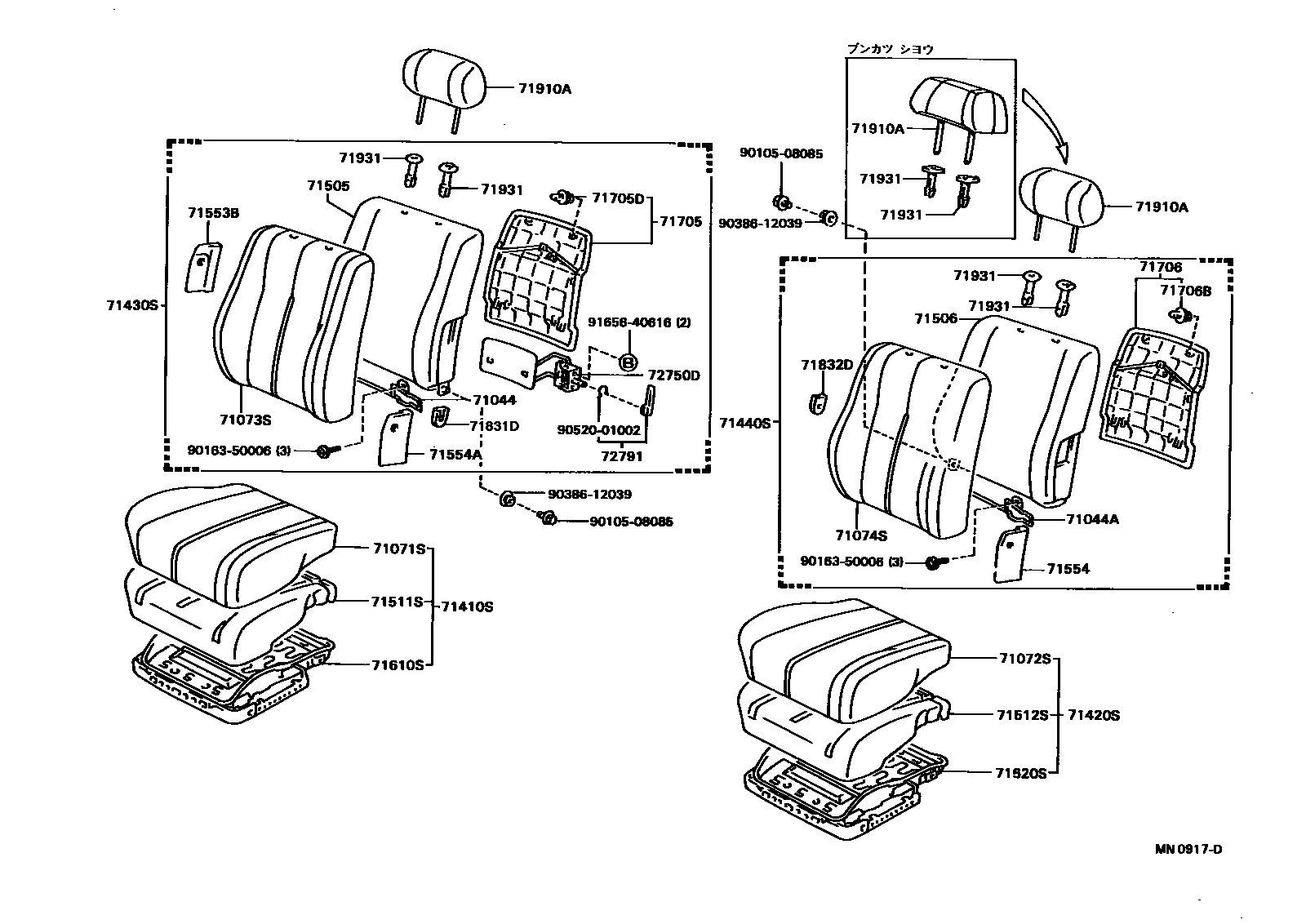

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0004 1 0005 1

71044WIRE SUB-ASSY, FRONT SEATBACK, LOWER RH

main71044-32010iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199311-199406

71044AWIRE SUB-ASSY, FRONT SEATBACK, LOWER LH

main71044-32010iCV30,SV3#..HT..ETO;CV30,SV3#..SED..(VR,VX,ZE,ZX)199311-199406

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3H100-02iSV30..VL,XT199007-199206

TAUPE,TRIM9#

main71071-3H100-03iSV30..VL,XT199007-199206

MEDIUM GRAY,TRIM1#

main71071-3H110-02iCV30,SV30,35..ETO,ZV199007-199206

TAUPE,TRIM9#

main71071-3H110-03iCV30,SV30,35..ETO,ZV199007-199206

MEDIUM GRAY,TRIM1#

main71071-3H110-06iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

main71071-3H120-02iSV30,32,33..LUM,VE199007-199206

TAUPE,TRIM9#

main71071-3H120-03iSV30,32,33..LUM,VE199007-199206

MEDIUM GRAY,TRIM1#

main71071-3H120-06iSV30,32,33..HT..VE199007-199206

SABLE,TRIM4#

main71071-3H130-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main71071-3H130-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main71071-3H130-06iCV30,SV3#..HT..(VR,VX)199007-199206

SABLE,TRIM4#

main71071-3H140-02iSV32,33..GT199007-199206

TAUPE,TRIM9#

main71071-3H140-03iSV32,33..GT199007-199206

MEDIUM GRAY,TRIM1#

main71071-3H140-06iSV32,33..HT..GT199007-199206

SABLE,TRIM4#

main71071-3H160-02iVZV3#199007-199206

TAUPE,TRIM9#

main71071-3H160-03iVZV3#199007-199206

MEDIUM GRAY,TRIM1#

main71071-3H160-06iVZV3#199007-199206

SABLE,TRIM4#

main71071-3H170-02iVZV3#199007-199106

main71071-3H170-03iVZV3#199007-199106

main71071-3H170-06iSV32,33..HT..4FC..VX199112-199206

main71071-3H180-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71071-3H180-B2iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

main71071-3H200-B0iCV30,SV30,35..ZV199105-199206

main71071-3H200-K0iCV30,SV30,35..ZV199105-199206

main71071-3H210-B1iVZV3#199206-199406

MI.GRAY,TRIM1#

main71071-3H210-E1iVZV3#199206-199406

OAK,TRIM4#

main71071-3H210-K1iVZV3#199206-199406

TAUPE,TRIM9#

main71071-3H220-B1iSV32,33..HT..4FC..VX199309-199312

main71071-3H220-E1iVZV3#199206-199406

main71071-3H220-K1iVZV3#199206-199406

main71071-3H230-B0iSV30..VL,XT199206-199406

MI.GRAY,TRIM1#

main71071-3H230-E0iSV30..VL,XT199206-199406

OAK,TRIM4#

main71071-3H230-K0iSV30..VL,XT199206-199406

TAUPE,TRIM9#

main71071-3H240-B0iCV30,SV3#..ETO,LUM199206-199406

MI.GRAY,TRIM1#

main71071-3H240-E0iCV30,SV3#..ETO,LUM199206-199406

OAK,TRIM4#

main71071-3H240-K0iCV30,SV3#..ETO,LUM199206-199406

TAUPE,TRIM9#

main71071-3H250-B0iCV30,SV30,35..LUM199312-199406

main71071-3H250-E0iCV30,SV30,35..LUM199312-199406

main71071-3H250-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

main71071-3H260-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-3H110-02iSV30..VL,XT199007-199206

TAUPE,TRIM9#

main71072-3H110-03iSV30..VL,XT199007-199206

MEDIUM GRAY,TRIM1#

main71072-3H120-02iCV30,SV30,35..ETO,ZV199007-199206

TAUPE,TRIM9#

main71072-3H120-03iCV30,SV30,35..ETO,ZV199007-199206

MEDIUM GRAY,TRIM1#

main71072-3H120-06iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

main71072-3H130-02iSV30,32,33..LUM,VE199007-199206

TAUPE,TRIM9#

main71072-3H130-03iCV30,SV30..ETO199105-199206

main71072-3H130-06iSV30,32,33..HT..VE199007-199206

SABLE,TRIM4#

main71072-3H140-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main71072-3H140-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main71072-3H140-06iCV30,SV3#..HT..(VR,VX)199007-199206

SABLE,TRIM4#

main71072-3H150-02iSV32,33..GT199007-199206

TAUPE,TRIM9#

main71072-3H150-03iSV32,33..GT199007-199206

MEDIUM GRAY,TRIM1#

main71072-3H150-06iSV32,33..HT..GT199007-199206

SABLE,TRIM4#

main71072-3H170-02iVZV3#199007-199206

TAUPE,TRIM9#

main71072-3H170-03iVZV3#199007-199206

MEDIUM GRAY,TRIM1#

main71072-3H170-06iSV32,33..HT..4FC..VX199112-199206

main71072-3H180-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71072-3H180-B2iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

main71072-3H200-B0iSV32,33..HT..4FC..VX199401-199406

main71072-3H200-E0iVZV3#199206-199406

OAK,TRIM4#

main71072-3H200-K0iVZV3#199206-199406

TAUPE,TRIM9#

main71072-3H230-B0iSV30..VL,XT199206-199406

MI.GRAY,TRIM1#

main71072-3H230-E0iSV30..VL,XT199206-199406

OAK,TRIM4#

main71072-3H230-K0iSV30..VL,XT199206-199406

TAUPE,TRIM9#

main71072-3H240-B0iCV30,SV3#..ETO,LUM199206-199406

MI.GRAY,TRIM1#

main71072-3H240-E0iCV30,SV3#..ETO,LUM199206-199406

OAK,TRIM4#

main71072-3H240-K0iCV30,SV3#..ETO,LUM199206-199406

TAUPE,TRIM9#

main71072-3H250-B0iCV30,SV30,35..LUM199312-199406

main71072-3H250-E0iCV30,SV30,35..ETO199308-199312

main71072-3H250-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

main71072-3H260-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-32770-02iSV30..VL,XT199007-199206

TAUPE,TRIM9#

main71073-32770-03iSV30..VL,XT199007-199206

MEDIUM GRAY,TRIM1#

main71073-32780-02iCV30,SV30,35..ETO,ZV199007-199206

TAUPE,TRIM9#

main71073-32780-03iCV30,SV30,35..ETO,ZV199007-199206

MEDIUM GRAY,TRIM1#

main71073-32780-06iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

main71073-32790-02iCV30,SV30..ETO199105-199206

main71073-32790-03iCV30,SV30..ETO199105-199206

main71073-32790-06iSV30,32,33..HT..VE199007-199206

SABLE,TRIM4#

main71073-32800-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main71073-32800-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main71073-32800-06iCV30,SV3#..HT..(VR,VX)199007-199206

SABLE,TRIM4#

main71073-32810-02iSV32,33..GT199007-199206

TAUPE,TRIM9#

main71073-32810-03iSV32,33..GT199007-199206

MEDIUM GRAY,TRIM1#

main71073-32810-06iSV32,33..HT..GT199007-199206

SABLE,TRIM4#

main71073-32820-02iVZV3#199007-199206

TAUPE,TRIM9#

main71073-32820-03iVZV3#199007-199206

MEDIUM GRAY,TRIM1#

main71073-32820-06iVZV3#199007-199206

SABLE,TRIM4#

main71073-32830-02iVZV30,31..5F199007-199106

main71073-32830-03iVZV30,31..5F199007-199106

main71073-32830-06iVZV30,31..5F199007-199106

main71073-32840-02iVZV3#..4FC199007-199106

main71073-32840-03iSV32,33..HT..4FC..VX199112-199206

main71073-32840-06iVZV32,33199106-199206

main71073-32850-03iSV35..HT..VX;SV32,33..HT..5F..VX199106-199206

main71073-32850-B2iSV35..HT..VX;SV32,33..HT..5F..VX199206-199406

main71073-32860-03iSV32,33,VZV32,33..HT..4FC..(PRO,VX)199106-199206

main71073-32860-B2iSV32,33,VZV3#..HT..4FC..(PRO,VX)199206-199406

main71073-32880-B1iVZV3#199206-199406

MI.GRAY,TRIM1#

main71073-32880-E1iVZV3#199206-199406

OAK,TRIM4#

main71073-32880-K1iVZV3#199206-199406

TAUPE,TRIM9#

main71073-3H010-B1iVZV3#199206-199406

main71073-3H010-E1iSV32,33..HT..4FC..VX199309-199312

main71073-3H010-K1iVZV3#199206-199406

main71073-3H020-B0iSV30..VL,XT199206-199406

MI.GRAY,TRIM1#

main71073-3H020-E0iSV30..VL,XT199206-199406

OAK,TRIM4#

main71073-3H020-K0iSV30..VL,XT199206-199406

TAUPE,TRIM9#

main71073-3H030-B0iCV30,SV3#..ETO,LUM199206-199406

MI.GRAY,TRIM1#

main71073-3H030-E0iCV30,SV3#..ETO,LUM199206-199406

OAK,TRIM4#

main71073-3H030-K0iCV30,SV3#..ETO,LUM199206-199406

TAUPE,TRIM9#

main71073-3H040-B0iCV30,SV30,35..LUM199312-199406

main71073-3H040-E0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

OAK,TRIM4#

main71073-3H040-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

main71073-3H050-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-32470-02iSV30..VL,XT199007-199206

TAUPE,TRIM9#

main71074-32470-03iSV30..VL,XT199007-199206

MEDIUM GRAY,TRIM1#

main71074-32480-02iCV30,SV30,35..ETO,ZV199007-199206

TAUPE,TRIM9#

main71074-32480-03iCV30,SV30,35..ETO,ZV199007-199206

MEDIUM GRAY,TRIM1#

main71074-32480-06iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

main71074-32490-02iSV30,32,33..LUM,VE199007-199206

TAUPE,TRIM9#

main71074-32490-03iCV30,SV30..ETO199105-199206

main71074-32490-06iSV30,32,33..HT..VE199007-199206

SABLE,TRIM4#

main71074-32500-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main71074-32500-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main71074-32500-06iCV30,SV3#..HT..(VR,VX)199007-199206

SABLE,TRIM4#

main71074-32510-02iSV32,33..GT199007-199206

TAUPE,TRIM9#

main71074-32510-03iSV32,33..GT199007-199206

MEDIUM GRAY,TRIM1#

main71074-32510-06iSV32,33..HT..GT199007-199206

SABLE,TRIM4#

main71074-32520-02iVZV3#199007-199206

TAUPE,TRIM9#

main71074-32520-03iVZV3#199007-199206

MEDIUM GRAY,TRIM1#

main71074-32520-06iSV32,33..HT..4FC..VX199112-199206

main71074-32530-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71074-32530-B2iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

main71074-32550-B0iSV32,33..HT..4FC..VX199309-199312

main71074-32550-E0iVZV3#199206-199406

OAK,TRIM4#

main71074-32550-K0iVZV3#199206-199406

TAUPE,TRIM9#

main71074-32560-B0iSV30..VL,XT199206-199406

MI.GRAY,TRIM1#

main71074-32560-E0iSV30..VL,XT199206-199406

OAK,TRIM4#

main71074-32560-K0iSV30..VL,XT199206-199406

TAUPE,TRIM9#

main71074-32570-B0iCV30,SV3#..ETO,LUM199206-199406

MI.GRAY,TRIM1#

main71074-32570-E0iCV30,SV3#..ETO,LUM199206-199406

OAK,TRIM4#

main71074-32570-K0iCV30,SV3#..ETO,LUM199206-199406

TAUPE,TRIM9#

main71074-32580-B0iCV30,SV30,35..LUM199312-199406

main71074-32580-E0iCV30,SV30,35..LUM199312-199406

main71074-32580-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

main71074-32590-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-32580-02iSV30..VL,XT199007-199206

***,TAUPE,TRIM9#

main71410-32580-03iSV30..VL,XT199007-199206

***,MEDIUM GRAY,TRIM1#

main71410-32890-02iCV30,SV30,35..ETO,ZV199007-199206

***,TAUPE,TRIM9#

main71410-32890-03iCV30,SV30,35..ETO,ZV199007-199206

***,MEDIUM GRAY,TRIM1#

main71410-32890-06iCV30,SV30,35..HT..ETO199007-199206

***,SABLE,TRIM4#

main71410-3H010-02iSV30,32,33..LUM,VE199007-199206

***,TAUPE,TRIM9#

main71410-3H010-03iCV30,SV30..ETO199105-199206

main71410-3H010-06iSV30,32,33..HT..VE199007-199206

***,SABLE,TRIM4#

main71410-3H020-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,TAUPE,TRIM9#

main71410-3H020-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,MEDIUM GRAY,TRIM1#

main71410-3H020-06iCV30,SV3#..HT..(VR,VX)199007-199206

***,SABLE,TRIM4#

main71410-3H030-02iSV32,33..GT199007-199206

***,TAUPE,TRIM9#

main71410-3H030-03iSV32,33..GT199007-199206

***,MEDIUM GRAY,TRIM1#

main71410-3H030-06iSV32,33..HT..GT199007-199206

***,SABLE,TRIM4#

main71410-3H050-02iVZV3#199007-199206

***,TAUPE,TRIM9#

main71410-3H050-03iVZV3#199007-199206

***,MEDIUM GRAY,TRIM1#

main71410-3H050-06iVZV3#199007-199206

***,SABLE,TRIM4#

main71410-3H060-02iVZV32,33199106-199206

main71410-3H060-03iVZV3#199007-199106

main71410-3H060-06iVZV3#199007-199106

main71410-3H070-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71410-3H070-B0iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

main71410-3H090-B0iCV30,SV30,35..ZV199105-199206

main71410-3H090-K0iCV30,SV30,35..ZV199105-199206

main71410-3H100-B0iVZV3#199206-199406

***,MI.GRAY,TRIM1#

main71410-3H100-E0iVZV3#199206-199406

***,OAK,TRIM4#

main71410-3H100-K0iVZV3#199206-199406

***,TAUPE,TRIM9#

main71410-3H110-B0iVZV3#199206-199406

main71410-3H110-E0iVZV3#199206-199406

main71410-3H110-K0iVZV3#199206-199406

main71410-3H120-B0iSV30..VL,XT199206-199406

***,MI.GRAY,TRIM1#

main71410-3H120-E0iSV30..VL,XT199206-199406

***,OAK,TRIM4#

main71410-3H120-K0iSV30..VL,XT199206-199406

***,TAUPE,TRIM9#

main71410-3H130-B0iCV30,SV3#..ETO,LUM199206-199406

***,MI.GRAY,TRIM1#

main71410-3H130-E0iCV30,SV3#..ETO,LUM199206-199406

***,OAK,TRIM4#

main71410-3H130-K0iCV30,SV3#..ETO,LUM199206-199406

***,TAUPE,TRIM9#

main71410-3H140-B0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,MI.GRAY,TRIM1#

main71410-3H140-E0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,OAK,TRIM4#

main71410-3H140-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,TAUPE,TRIM9#

main71410-3H150-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-32880-02iSV30..VL,XT199007-199206

***,TAUPE,TRIM9#

main71420-32880-03iSV30..VL,XT199007-199206

***,MEDIUM GRAY,TRIM1#

main71420-32890-02iCV30,SV30,35..ETO,ZV199007-199206

***,TAUPE,TRIM9#

main71420-32890-03iCV30,SV30,35..ETO,ZV199007-199206

***,MEDIUM GRAY,TRIM1#

main71420-32890-06iCV30,SV30,35..HT..ETO199007-199206

***,SABLE,TRIM4#

main71420-3H010-02iCV30,SV30..ETO199105-199206

main71420-3H010-03iSV30,32,33..LUM,VE199007-199206

***,MEDIUM GRAY,TRIM1#

main71420-3H010-06iSV30,32,33..HT..VE199007-199206

***,SABLE,TRIM4#

main71420-3H020-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,TAUPE,TRIM9#

main71420-3H020-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,MEDIUM GRAY,TRIM1#

main71420-3H020-06iCV30,SV3#..HT..(VR,VX)199007-199206

***,SABLE,TRIM4#

main71420-3H030-02iSV32,33..GT199007-199206

***,TAUPE,TRIM9#

main71420-3H030-03iSV32,33..GT199007-199206

***,MEDIUM GRAY,TRIM1#

main71420-3H030-06iSV32,33..HT..GT199007-199206

***,SABLE,TRIM4#

main71420-3H050-02iVZV3#199007-199206

***,TAUPE,TRIM9#

main71420-3H050-03iVZV3#199007-199206

***,MEDIUM GRAY,TRIM1#

main71420-3H050-06iVZV3#199007-199206

***,SABLE,TRIM4#

main71420-3H060-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71420-3H060-B0iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

main71420-3H080-B0iVZV3#199206-199406

***,MI.GRAY,TRIM1#

main71420-3H080-E0iVZV3#199206-199406

***,OAK,TRIM4#

main71420-3H080-K0iVZV3#199206-199406

***,TAUPE,TRIM9#

main71420-3H120-B0iSV30..VL,XT199206-199406

***,MI.GRAY,TRIM1#

main71420-3H120-E0iSV30..VL,XT199206-199406

***,OAK,TRIM4#

main71420-3H120-K0iSV30..VL,XT199206-199406

***,TAUPE,TRIM9#

main71420-3H130-B0iCV30,SV3#..ETO,LUM199206-199406

***,MI.GRAY,TRIM1#

main71420-3H130-E0iCV30,SV3#..ETO,LUM199206-199406

***,OAK,TRIM4#

main71420-3H130-K0iCV30,SV3#..ETO,LUM199206-199406

***,TAUPE,TRIM9#

main71420-3H140-B0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,MI.GRAY,TRIM1#

main71420-3H140-E0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,OAK,TRIM4#

main71420-3H140-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,TAUPE,TRIM9#

main71420-3H150-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-32730-02iSV30..VL,XT199007-199206

***,TAUPE,TRIM9#

main71430-32730-03iSV30..VL,XT199007-199206

***,MEDIUM GRAY,TRIM1#

main71430-32740-02iCV30,SV30,35..ETO,ZV199007-199206

***,TAUPE,TRIM9#

main71430-32740-03iCV30,SV30,35..ETO,ZV199007-199206

***,MEDIUM GRAY,TRIM1#

main71430-32740-06iCV30,SV30,35..HT..ETO199007-199206

***,SABLE,TRIM4#

main71430-32750-02iSV30,32,33..LUM,VE199007-199206

***,TAUPE,TRIM9#

main71430-32750-03iSV30,32,33..LUM,VE199007-199206

***,MEDIUM GRAY,TRIM1#

main71430-32750-06iSV30,32,33..HT..VE199007-199206

***,SABLE,TRIM4#

main71430-32760-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,TAUPE,TRIM9#

main71430-32760-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,MEDIUM GRAY,TRIM1#

main71430-32760-06iCV30,SV3#..HT..(VR,VX)199007-199206

***,SABLE,TRIM4#

main71430-32770-02iSV32,33..GT199007-199206

***,TAUPE,TRIM9#

main71430-32770-03iSV32,33..GT199007-199206

***,MEDIUM GRAY,TRIM1#

main71430-32770-06iSV32,33..HT..GT199007-199206

***,SABLE,TRIM4#

main71430-32800-02iVZV3#199007-199206

***,TAUPE,TRIM9#

main71430-32800-03iVZV3#199007-199206

***,MEDIUM GRAY,TRIM1#

main71430-32800-06iVZV3#199007-199206

***,SABLE,TRIM4#

main71430-32810-02iVZV30,31..5F199007-199106

main71430-32810-03iVZV30,31..5F199007-199106

main71430-32810-06iVZV30,31..5F199007-199106

main71430-32820-02iVZV32,33199106-199206

main71430-32820-03iVZV3#..4FC199007-199106

main71430-32820-06iVZV3#..4FC199007-199106

main71430-32830-03iSV35..HT..VX;SV32,33..HT..5F..VX199106-199206

main71430-32830-B0iSV35..HT..VX;SV32,33..HT..5F..VX199206-199406

main71430-32840-03iSV32,33,VZV32,33..HT..4FC..(PRO,VX)199106-199206

main71430-32840-B0iSV32,33,VZV3#..HT..4FC..(PRO,VX)199206-199406

main71430-32850-B0iVZV3#199206-199406

***,MI.GRAY,TRIM1#

main71430-32850-E0iVZV3#199206-199406

***,OAK,TRIM4#

main71430-32850-K0iVZV3#199206-199406

***,TAUPE,TRIM9#

main71430-32870-B0iVZV3#199206-199406

main71430-32870-E0iVZV3#199206-199406

main71430-32870-K0iVZV3#199206-199406

main71430-32880-B0iSV30..VL,XT199206-199406

***,MI.GRAY,TRIM1#

main71430-32880-E0iSV30..VL,XT199206-199406

***,OAK,TRIM4#

main71430-32880-K0iSV30..VL,XT199206-199406

***,TAUPE,TRIM9#

main71430-32890-B0iCV30,SV3#..ETO,LUM199206-199406

***,MI.GRAY,TRIM1#

main71430-32890-E0iCV30,SV3#..ETO,LUM199206-199406

***,OAK,TRIM4#

main71430-32890-K0iCV30,SV3#..ETO,LUM199206-199406

***,TAUPE,TRIM9#

main71430-3H010-B0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,MI.GRAY,TRIM1#

main71430-3H010-E0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,OAK,TRIM4#

main71430-3H010-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,TAUPE,TRIM9#

main71430-3H020-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-32600-02iSV30..VL,XT199007-199206

***,TAUPE,TRIM9#

main71440-32600-03iSV30..VL,XT199007-199206

***,MEDIUM GRAY,TRIM1#

main71440-32610-02iCV30,SV30,35..ETO,ZV199007-199206

***,TAUPE,TRIM9#

main71440-32610-03iCV30,SV30,35..ETO,ZV199007-199206

***,MEDIUM GRAY,TRIM1#

main71440-32620-02iCV30,SV30..ETO199105-199206

main71440-32620-03iSV30,32,33..LUM,VE199007-199206

***,MEDIUM GRAY,TRIM1#

main71440-32620-06iSV30,32,33..HT..VE199007-199206

***,SABLE,TRIM4#

main71440-32630-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,TAUPE,TRIM9#

main71440-32630-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

***,MEDIUM GRAY,TRIM1#

main71440-32630-06iCV30,SV3#..HT..(VR,VX)199007-199206

***,SABLE,TRIM4#

main71440-32640-02iSV32,33..GT199007-199206

***,TAUPE,TRIM9#

main71440-32640-03iSV32,33..GT199007-199206

***,MEDIUM GRAY,TRIM1#

main71440-32640-06iSV32,33..HT..GT199007-199206

***,SABLE,TRIM4#

main71440-32670-02iVZV3#199007-199206

***,TAUPE,TRIM9#

main71440-32670-03iVZV3#199007-199206

***,MEDIUM GRAY,TRIM1#

main71440-32670-06iVZV3#199007-199206

***,SABLE,TRIM4#

main71440-32680-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71440-32680-B0iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

main71440-32690-B0iVZV3#199206-199406

***,MI.GRAY,TRIM1#

main71440-32690-E0iVZV3#199206-199406

***,OAK,TRIM4#

main71440-32690-K0iVZV3#199206-199406

***,TAUPE,TRIM9#

main71440-32700-B0iSV30..VL,XT199206-199406

***,MI.GRAY,TRIM1#

main71440-32700-E0iSV30..VL,XT199206-199406

***,OAK,TRIM4#

main71440-32700-K0iSV30..VL,XT199206-199406

***,TAUPE,TRIM9#

main71440-32710-B0iCV30,SV3#..ETO,LUM199206-199406

***,MI.GRAY,TRIM1#

main71440-32710-E0iCV30,SV3#..ETO,LUM199206-199406

***,OAK,TRIM4#

main71440-32710-K0iCV30,SV3#..ETO,LUM199206-199406

***,TAUPE,TRIM9#

main71440-32720-B0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,MI.GRAY,TRIM1#

main71440-32720-E0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,OAK,TRIM4#

main71440-32720-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

***,TAUPE,TRIM9#

main71440-32730-B0iSV32,33..ZX;SV32,33..HT..VX199206-199406

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-32010iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199406

main71505-32020iCV30,SV30,35..LUM199312-199406

main71505-32030iSV32,33..GT199007-199206

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-32010iCV30,SV3#..HT..ETO;CV30,SV3#..SED..(VR,VX,ZE,ZX)199303-199406

main71506-32020iSV32,33..GT199007-199206

main71506-32030iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199406

main71506-32040iCV30,SV3#..SED..(ETO,LUM,VL,XT);CV30,SV3#,VZV3#..HT..(PRO,VR,VX)199303-199406

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-32140iCV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main71511-32150iSV32,33..GT199007-199206

main71511-32160iVZV32,33199106-199406

main71511-32170iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199406

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-32140iCV30,SV3#,VZV3#..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main71511-32150iSV32,33..ZX;SV32,33..HT..VX199206-199406

main71511-33030iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199406

71553BPAD, FRONT SEATBACK, B

main71553-32020iCV30,SV30,35..LUM199312-199406

71554PAD, FRONT SEATBACK, C

main71554-32020iCV30,SV3#,VZV3#199007-199406

main71554-32050iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199406

71554APAD, FRONT SEATBACK, CENTER

main71553-32020iCV30,SV3#..ETO,LUM,VL,XT199206-199406

main71554-32030iCV30,SV30,35..ETO199308-199312

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32090iSV30..VL,XT199206-199406

main71610-32100iCV30,SV30,35..ZV199105-199206

main71610-32110iSV32,33,35..HT..VX199106-199406

sub71610-32120

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-32030iCV30,SV3#,VZV3#199007-199406

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-32270-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main71705-32270-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main71705-32270-06iCV30,SV3#..HT..(VR,VX)199007-199206

SABLE,TRIM4#

main71705-32280-02iSV32,33..GT199007-199107

TAUPE,TRIM9#

main71705-32280-03iSV32,33..GT199007-199107

MEDIUM GRAY,TRIM1#

main71705-32280-06iSV32,33..HT..GT199007-199206

SABLE,TRIM4#

main71705-32280-12iSV32,33..GT199107-199206

TAUPE,TRIM9#

main71705-32280-13iSV32,33..GT199107-199206

MEDIUM GRAY,TRIM1#

main71705-32280-C0iSV32,33..ZX;SV32,33..HT..VX199206-199309

main71705-32280-C1iSV32,33..ZX;SV32,33..HT..VX199309-199406

main71705-32290-02iVZV3#199007-199206

TAUPE,TRIM9#

main71705-32290-03iVZV3#199007-199206

MEDIUM GRAY,TRIM1#

main71705-32290-06iSV32,33..HT..4FC..VX199112-199206

main71705-32310-B0iVZV3#199206-199406

MI.GRAY,TRIM1#

main71705-32310-E0iVZV3#199206-199406

OAK,TRIM4#

main71705-32310-K0iVZV3#199206-199406

TAUPE,TRIM9#

main71705-32320-B0iCV30,SV30,35..LUM199312-199406

main71705-32320-E0iCV30,SV30,35..LUM199312-199406

main71705-32320-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

main71705-33060-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71705-33060-B1iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

71705DCLIP, FRONT SEATBACK BOARD

main71769-32011×2iSV32,33..HT..4FC..VX199112-199206

main71769-33010×2iCV30,SV30,35..LUM199312-199406

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-32270-02iCV30,SV3#..VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main71705-32270-03iCV30,SV3#..VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main71705-32270-06iCV30,SV3#..HT..(VR,VX)199007-199206

SABLE,TRIM4#

main71705-32280-02iSV32,33..GT199007-199107

TAUPE,TRIM9#

main71705-32280-03iSV32,33..GT199007-199107

MEDIUM GRAY,TRIM1#

main71705-32280-06iSV32,33..HT..GT199007-199206

SABLE,TRIM4#

main71705-32280-12iSV32,33..GT199107-199206

TAUPE,TRIM9#

main71705-32280-13iSV32,33..GT199107-199206

MEDIUM GRAY,TRIM1#

main71705-32280-C0iSV32,33..ZX;SV32,33..HT..VX199206-199309

main71705-32280-C1iSV32,33..ZX;SV32,33..HT..VX199309-199406

main71705-32290-02iVZV3#199007-199206

TAUPE,TRIM9#

main71705-32290-03iVZV3#199007-199206

MEDIUM GRAY,TRIM1#

main71705-32290-06iVZV3#199007-199206

SABLE,TRIM4#

main71705-32310-B0iVZV3#199206-199406

MI.GRAY,TRIM1#

main71705-32310-E0iSV32,33..HT..4FC..VX199309-199312

main71705-32310-K0iVZV3#199206-199406

TAUPE,TRIM9#

main71705-32320-B0iCV30,SV30,35..ETO199304-199307

main71705-32320-E0iCV30,SV30,35..LUM199312-199406

main71705-32320-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

main71705-33060-03iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71705-33060-B1iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

71706BCLIP, FRONT SEATBACK BOARD

main71769-32011×2iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199110

main71769-33010×2iCV30,SV30,35..LUM199312-199406

71831DCOVER, FRONT SEAT HINGE, RH

main71831-16010iCV30,SV3#,VZV3#199007-199406

71832DCOVER, FRONT SEAT HINGE, LH

main71831-16010iCV30,SV3#,VZV3#199007-199406

71910AHEADREST ASSY, FRONT SEAT

main71910-32470-B0iSV32,33..HT..4FC..VX199401-199406

main71910-32470-E0iSV32,33..HT..4FC..VX199309-199312

main71910-32470-K0iVZV3#199206-199406

main71910-32480-02×2iSV30..VL,XT199007-199206

TAUPE,TRIM9#

main71910-32480-03×2iSV30..VL,XT199007-199206

MEDIUM GRAY,TRIM1#

main71910-32480-E0×2iSV30..VL,XT199206-199406

OAK,TRIM4#

main71910-32480-K0×2iSV30..VL,XT199206-199406

TAUPE,TRIM9#

main71910-32480-S4×2iSV30..VL,XT199206-199406

MI.GRAY,TRIM1#

main71910-32490-02×2iCV30,SV30,35..ETO,ZV199007-199206

TAUPE,TRIM9#

main71910-32490-03×2iCV30,SV30,35..ETO,ZV199007-199206

MEDIUM GRAY,TRIM1#

main71910-32490-06×2iCV30,SV30,35..HT..ETO199007-199206

SABLE,TRIM4#

main71910-32500-02×2iCV30,SV30..ETO199105-199206

main71910-32500-03×2iSV30,32,33..LUM,VE199007-199206

MEDIUM GRAY,TRIM1#

main71910-32500-06×2iSV30,32,33..HT..VE199007-199206

SABLE,TRIM4#

main71910-32510-02×2iCV30,SV3#..VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main71910-32510-03×2iCV30,SV3#..VR,VX,ZE,ZX199007-199206

MEDIUM GRAY,TRIM1#

main71910-32510-06×2iCV30,SV3#..HT..(VR,VX)199007-199206

SABLE,TRIM4#

main71910-32520-02×2iSV32,33..GT199007-199106

TAUPE,TRIM9#

main71910-32520-03×2iSV32,33..GT199007-199106

MEDIUM GRAY,TRIM1#

main71910-32520-06×2iSV32,33..HT..GT199007-199206

SABLE,TRIM4#

main71910-32520-12×2iSV32,33..GT199106-199206

TAUPE,TRIM9#

main71910-32520-13×2iSV32,33..GT199106-199206

MEDIUM GRAY,TRIM1#

main71910-32520-C0×2iSV32,33..ZX;SV32,33..HT..VX199206-199305

main71910-32520-C1×2iSV32,33..ZX;SV32,33..HT..VX199310-199406

main71910-32530-03×2iSV32,33,35,VZV32,33..HT..(PRO,VX)199106-199206

main71910-32530-B0×2iSV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

main71910-32540-02×2iVZV3#199007-199206

TAUPE,TRIM9#

main71910-32540-03×2iVZV3#199007-199206

MEDIUM GRAY,TRIM1#

main71910-32540-06×2iVZV3#199007-199206

SABLE,TRIM4#

main71910-32570-B0×2iSV30..XT199304-199406

main71910-32570-E0×2iCV30,SV3#..ETO,LUM199306-199406

OAK,TRIM4#

main71910-32570-K0×2iCV30,SV3#..ETO,LUM199306-199406

TAUPE,TRIM9#

main71910-32580-B0×2iCV30,SV30,35..LUM199312-199406

main71910-32580-E0×2iCV30,SV30,35..LUM199312-199406

main71910-32580-K0iCV30,SV3#..SED..(VR,VX,ZE,ZX)199305-199306

main71920-32030-B0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

main71920-32030-E0iCV30,SV30..HT..ETO199212-199303

main71920-32030-K0iCV30,SV3#..VR,VX,ZE,ZX199206-199406

main71920-32050-B1iSV32,33..HT..4FC..VX199309-199312

main71920-32050-E1iSV32,33..HT..4FC..VX199309-199312

main71920-32050-K1iVZV3#199206-199406

71931SUPPORT, FRONT SEAT HEADREST

main71930-10070-B0×2iCV30,SV3#,VZV3#199210-199406

sub71930-12070

sub71930-32020

main71930-10070-E1×2iCV30,SV3#,VZV3#199210-199406

sub71930-12070

sub71930-32020

main71930-10070-K0×2iCV30,SV3#,VZV3#199210-199406

sub71930-12070

sub71930-32020

main71930-32010-02×2iCV30,SV3#,VZV3#199007-199106

main71930-32010-03×2iCV30,SV3#,VZV3#199007-199106

main71930-32010-06×2iCV30,SV3#,VZV3#..HT199007-199206

main71930-32010-B0×2iCV30,SV3#,VZV3#199106-199210

main71930-32010-E0×2iCV30,SV3#,VZV3#199206-199210

main71930-32010-K0×2iCV30,SV3#,VZV3#199106-199210

main71931-10020-B0×2iCV30,SV3#,VZV3#199210-199406

sub71931-12040

main71931-10020-E1×2iCV30,SV3#,VZV3#199210-199406

sub71931-12040

main71931-10020-K0×2iCV30,SV3#,VZV3#199210-199406

sub71931-12040

main71931-32010-02×2iCV30,SV3#,VZV3#199007-199106

main71931-32010-03×2iCV30,SV3#,VZV3#199007-199106

main71931-32010-06×2iCV30,SV3#,VZV3#..HT199007-199206

main71931-32010-B0×2iCV30,SV3#,VZV3#199106-199210

main71931-32010-E0×2iCV30,SV3#,VZV3#199206-199210

main71931-32010-K0×2iCV30,SV3#,VZV3#199106-199210

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-32040iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199406

main72750-32050iSV32,33,35..HT..VX199106-199406

72791LEVER, LUMBAR SUPPORT

main72791-22020-10iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199206

TAUPE,TRIM9#

main72791-22020-46iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

SABLE,TRIM4#

main72791-22020-B0iCV30,SV30,35..LUM199312-199406

main72791-22020-E8iCV30,SV30,35..ETO199308-199312

main72791-22020-K0iCV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX199206-199406

TAUPE,TRIM9#

9010508085

main90105-08085

9016350006

main90163-50006

9038612039

main90386-12039

9052001002

main90520-01002

9165640616

main91656-40616

34 parts on this diagram · 4 diagrams in section
