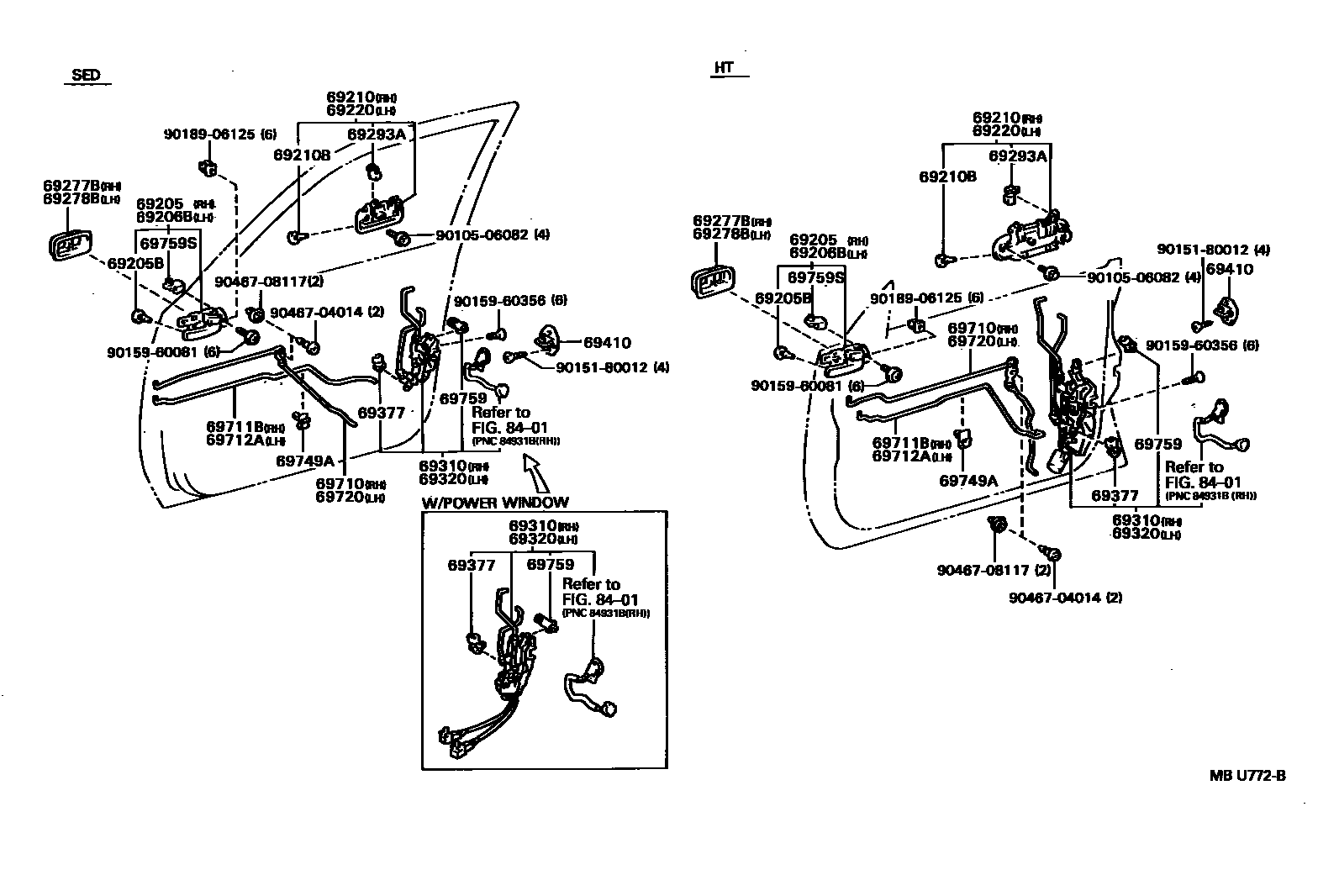

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-32070-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main69205-32070-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main69205-32070-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main69205-32070-E0iCV30,SV3#,VZV3#199206-199308

OAK,TRIM4#

main69205-32070-K0iCV30,SV3#,VZV3#199206-199308

TAUPE,TRIM9#

main69205-32070-S4iCV30,SV3#,VZV3#199206-199308

MEDIUM GRAY,TRIM1#

main69205-32071-E0iCV30,SV3#,VZV3#199308-199406

OAK,TRIM4#

main69205-32071-K0iCV30,SV3#,VZV3#199308-199406

TAUPE,TRIM9#

main69205-32071-S4iCV30,SV3#,VZV3#199308-199406

MEDIUM GRAY,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iCV30,SV3#,VZV3#199007-199406

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-32070-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main69206-32070-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main69206-32070-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main69206-32070-E0iCV30,SV3#,VZV3#199206-199308

OAK,TRIM4#

main69206-32070-K0iCV30,SV3#,VZV3#199206-199308

TAUPE,TRIM9#

main69206-32070-S4iCV30,SV3#,VZV3#199206-199308

MEDIUM GRAY,TRIM1#

main69206-32071-E0iCV30,SV3#,VZV3#199308-199406

OAK,OAK,TRIM4#

main69206-32071-K0iCV30,SV3#..SED199308-199406

TAUPE,TRIM9#

main69206-32071-S4iCV30,SV3#..SED199308-199406

MEDIUM GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32090-02iCV30,SV3#..SED199007-199101

RED MICA M,3J9

main69210-32090-03iCV30,SV3#..SED199007-199206

DARK BLUISH GRAY M,191

main69210-32090-07iCV30,SV3#..SED199007-199206

MED TURQUOISE OPAL,744

main69210-32090-08iCV30,SV3#..SED199007-199106

SUPER WHITE 2,040

main69210-32090-11iCV30,SV3#..SED199206-199209

DK BLUISHGRAY MICA,191

main69210-32090-13iCV30,SV3#..SED199007-199206

AMETHYST SILVER M,920

main69210-32090-17iCV30,SV3#..SED199101-199206

GRAYISH GREEN M,6K6

main69210-32090-A0iSV35..SED199106-199206

SUPER WHITE 2,040

main69210-32090-E1iCV30,SV3#..SED199206-199209

LI BEIGE ME,4M3

main69210-32090-G0iCV30,SV3#..SED199206-199209

DARK GREEN MICA,6M1

main69210-32090-G1iCV30,SV3#..SED199206-199209

GRAYISH GREEN ME,6K6

main69210-32090-K0iCV30,SV3#..SED199206-199209

GRAYISH PURPLE M,923

main69210-32091-11iCV30,SV3#..SED199209-199406

BLUISHGRAY MICA,191

main69210-32091-A0iCV30,SV3#..SED199209-199406

SUPER WHITE 2,040

main69210-32091-E1iCV30,SV3#..SED199209-199406

LIGTH BEIGE ME,4M3

main69210-32091-G0iCV30,SV3#..SED199209-199406

DARK GREEN ME,6M1

main69210-32091-G1iCV30,SV3#..SED199209-199406

GRAYISH GREEN ME,6K6

main69210-32091-K0iCV30,SV3#..SED199209-199406

GRAYISH PUPLE ME,923

main69210-32100-03iCV30,SV3#,VZV3#..HT199007-199206

DARK BLUISH GRAY M,191

main69210-32100-04iCV30,SV3#,VZV3#..HT199206-199406

SUPER WHITE 2,040

main69210-32100-07iCV30,SV3#..HT199007-199206

MED TURQUOISE OPAL,744

main69210-32100-08iCV30,SV3#,VZV3#..HT199007-199206

SUPER WHITE 2,040

main69210-32100-09iCV30,SV30,35..ETO199308-199406

main69210-32100-11iCV30,SV3#,VZV3#..HT199206-199406

DK BLUISHGRAY MICA,191

main69210-32100-12iCV30,SV3#,VZV3#..HT199007-199101

RED MICA M,3J9

main69210-32100-13iCV30,SV3#,VZV3#..HT199007-199206

AMETHYST SILVER M,920

main69210-32100-17iCV30,SV3#,VZV3#..HT199101-199206

GRAYISH GREEN M,6K6

main69210-32100-18iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

WHITE PEARL MICA,25R

main69210-32100-23iVZV3#199007-199206

BLUISH GRAY ARGEN M,187

main69210-32100-33iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

DEEP PURPLE MICA,26R

main69210-32100-E1iCV30,SV3#,VZV3#..HT199206-199406

LI BEIGE ME,4M3

main69210-32100-G0iCV30,SV3#,VZV3#..HT199206-199406

DK.GREEN MC,6M1

main69210-32100-G1iCV30,SV3#,VZV3#..HT199206-199406

GRAYISH GREEN ME,6K6

main69210-32100-G2iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199406

OLIVE BREEZE TONING,25U

main69210-32100-K0iCV30,SV3#,VZV3#..HT199206-199406

GRAYISH PURPLE M,923

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014×4iCV30,SV3#..SED199007-199406

main90541-04018×4iCV30,SV3#,VZV3#..HT199007-199406

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32090-02iCV30,SV3#..SED199007-199101

RED MICA M,3J9

main69220-32090-03iCV30,SV3#..SED199007-199206

DARK BLUISH GRAY M,191

main69220-32090-07iCV30,SV3#..SED199007-199206

MED TURQUOISE OPAL,744

main69220-32090-08iCV30,SV3#..SED199007-199106

SUPER WHITE 2,040

main69220-32090-11iCV30,SV3#..SED199206-199209

DK BLUISHGRAY MICA,191

main69220-32090-13iCV30,SV3#..SED199007-199206

AMETHYST SILVER M,920

main69220-32090-17iCV30,SV3#..SED199101-199206

GRAYISH GREEN M,6K6

main69220-32090-A0iSV35..SED199106-199206

SUPER WHITE 2,040

main69220-32090-E1iCV30,SV3#..SED199206-199209

LI BEIGE ME,4M3

main69220-32090-G0iCV30,SV3#..SED199206-199209

DARK GREEN MICA,6M1

main69220-32090-G1iCV30,SV3#..SED199206-199209

GRAYISH GREEN ME,6K6

main69220-32090-K0iCV30,SV3#..SED199206-199209

GRAYISH PURPLE M,923

main69220-32091-11iCV30,SV3#..SED199209-199406

BLUISHGRAY MICA,191

main69220-32091-A0iCV30,SV3#..SED199209-199406

SUPER WHITE 2,040

main69220-32091-E1iCV30,SV3#..SED199209-199406

LIGTH BEIGE ME,4M3

main69220-32091-G0iCV30,SV3#..SED199209-199406

DARK GREEN ME,6M1

main69220-32091-G1iCV30,SV3#..SED199209-199406

GRAYISH GREEN ME,6K6

main69220-32091-K0iCV30,SV3#..SED199209-199406

GRAYISH PUPLE ME,923

main69220-32100-03iCV30,SV3#,VZV3#..HT199007-199206

DARK BLUEISH GRAY M,191

main69220-32100-04iCV30,SV3#,VZV3#..HT199206-199406

SUPER WHITE 2,040

main69220-32100-07iCV30,SV3#..HT199007-199206

MED TURQUOISE MICA,744

main69220-32100-08iCV30,SV3#,VZV3#..HT199007-199206

SUPER WHITE 2,040

main69220-32100-09iCV30,SV30,35..ETO199308-199406

main69220-32100-11iCV30,SV3#,VZV3#..HT199206-199406

DK BLUISHGRAY MICA,191

main69220-32100-12iCV30,SV3#,VZV3#..HT199007-199101

RED MICA M,3J9

main69220-32100-13iCV30,SV3#,VZV3#..HT199007-199206

AMETHYST SILVER M,920

main69220-32100-17iCV30,SV3#,VZV3#..HT199101-199206

GRAYISH GREEN M,6K6

main69220-32100-18iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

WHITE PEARL MICA,25R

main69220-32100-23iVZV3#199007-199206

BLUEISH GRAY ARGEN M,187

main69220-32100-33iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

DEEP PURPLE MICA,26R

main69220-32100-E1iCV30,SV3#,VZV3#..HT199206-199406

LI BEIGE ME,4M3

main69220-32100-G0iCV30,SV3#,VZV3#..HT199206-199406

DK.GREEN MC TONING G,6M1

main69220-32100-G1iCV30,SV3#,VZV3#..HT199206-199406

GRAYISH GREEN ME,6K6

main69220-32100-G2iCV30,SV30..HT..ETO199212-199303

main69220-32100-K0iCV30,SV3#,VZV3#..HT199206-199406

GRAYISH PURPLE M,923

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-32060-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main69277-32060-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main69277-32060-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main69277-32060-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main69277-32060-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main69277-32060-S4iCV30,SV3#,VZV3#199206-199406

MEDIUM GRAY,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-32050-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main69278-32050-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main69278-32050-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main69278-32050-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main69278-32050-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main69278-32050-S4iCV30,SV3#,VZV3#199206-199406

MEDIUM GRAY,TRIM1#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iCV30,SV3#,VZV3#199007-199406

main69293-12060iCV30,SV3#,VZV3#199007-199406

69310LOCK ASSY, FRONT DOOR, RH

main69030-32230iCV30,SV30,35..ZV199007-199206

main69030-32240iCV30,SV3#,VZV30,31..HT199007-199206

main69030-32250iCV30,SV3#,VZV3#..HT199206-199406

main69030-32260iSV30..VL,XT199206-199406

main69310-32390iCV30,SV30,35..VL,XT,ZV199007-199206

main69310-32400iSV30..VL,XT199206-199406

69320LOCK ASSY, FRONT DOOR, LH

main69040-32210iCV30,SV30,35..ZV199007-199206

main69040-32230iCV30,SV3#,VZV30,31..HT199007-199206

main69040-32240iVZV32,33199105-199206

main69040-32250iSV30..VL,XT199206-199406

main69320-32380iCV30,SV30,35..VL,XT,ZV199007-199206

main69320-32390iSV30..VL,XT199206-199406

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24010iCV30,SV3#..SED199007-199406

main69759-24020iCV30,SV3#..SED199007-199406

main69759-50030×2iCV30,SV3#,VZV3#..HT199007-199406

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iCV30,SV3#,VZV3#199007-199406

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-32010iCV30,SV3#..SED199007-199406

main69710-32020iCV30,SV3#,VZV3#..HT199007-199406

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-32060iCV30,SV3#..SED199007-199406

main69711-32070iCV30,SV3#,VZV3#..HT199007-199406

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-32050iCV30,SV3#..SED199007-199406

main69712-32060iCV30,SV3#,VZV3#..HT199007-199406

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-32010iCV30,SV3#..SED199007-199406

main69720-32020iCV30,SV3#,VZV3#..HT199007-199406

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010×2iCV30,SV3#,VZV3#199007-199406

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050×2iCV30,SV3#,VZV3#199007-199406

main69759-24060×2iCV30,SV3#,VZV3#199007-199406

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050×2iCV30,SV3#,VZV3#199007-199406

main69759-24070×2iCV30,SV3#,VZV3#199007-199406

8401

9010506082

main90105-06082

9015180012

main90151-80012

9015960081

main90159-60081

9015960356

main90159-60356

9018906125

main90189-06125

9046704014

main90467-04014

9046708117

main90467-08117

28 parts on this diagram · 1 diagram in section
