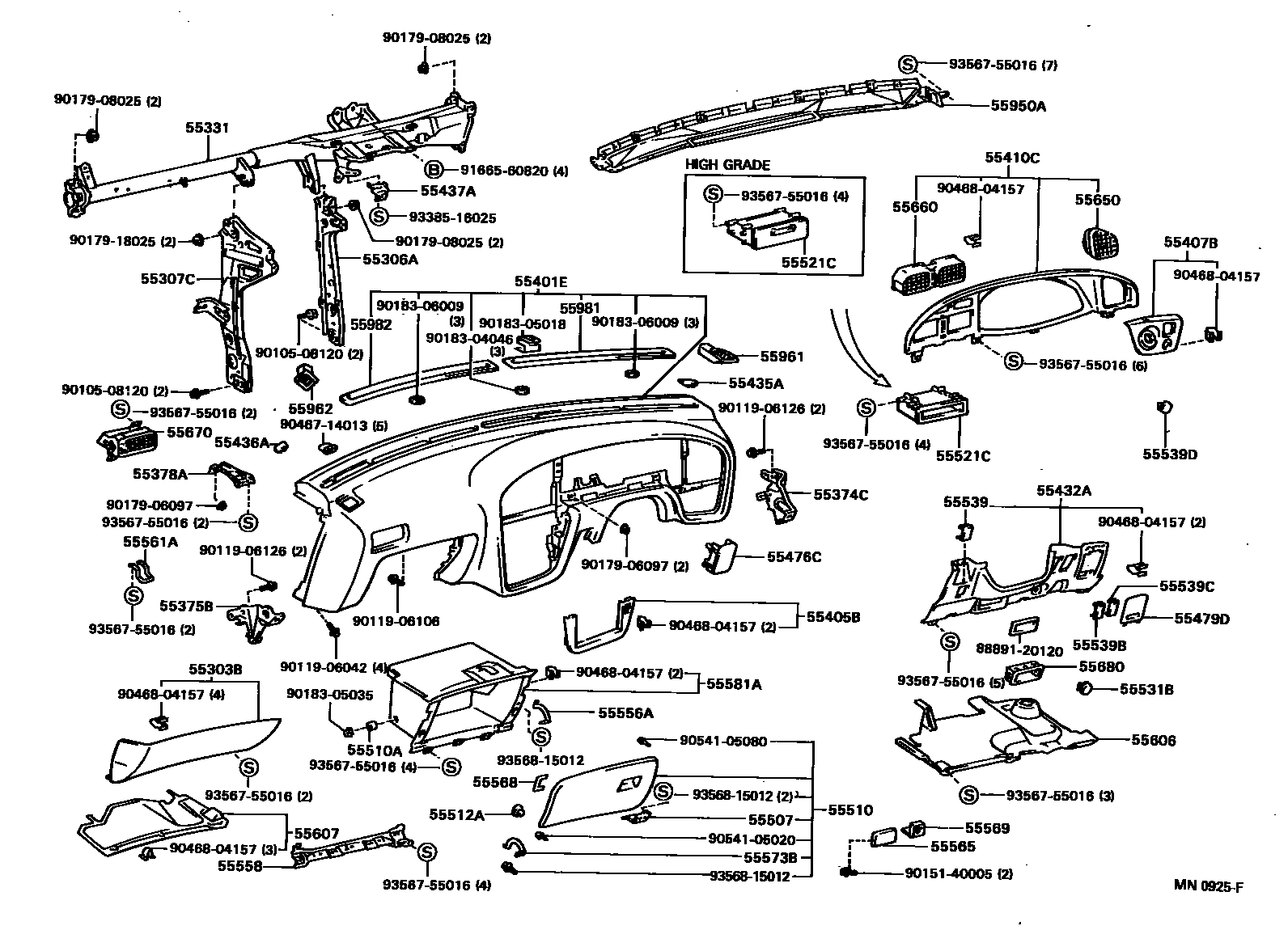

INSTRUMENT PANEL & GLOVE COMPARTMENT

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-32010-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55303-32010-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55303-32010-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55303-32010-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55303-32010-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55303-32010-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-32100iCV30,SV3#,VZV3#199007-199406

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-32070iCV30,SV3#,VZV3#199007-199406

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-32090iCV30,SV3#,VZV3#199007-199406

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-32030iCV30,SV3#,VZV3#199007-199406

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-32040iCV30,SV3#,VZV3#199007-199406

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-32050iCV30,SV3#,VZV3#199007-199406

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-32090-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55401-32090-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55401-32090-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55401-32090-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55401-32090-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55401-32090-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-32110iCV30,SV3#,VZV3#199007-199406

55407BBASE SUB-ASSY, SWITCH HOLE

main55407-32030iCV30,SV3#,VZV3#199007-199406

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-32040iCV30,SV3#,VZV3#199007-199406

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55045-32010-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55045-32010-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55045-32010-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55045-32011-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55045-32011-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55045-32011-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-32020-02iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199206

TAUPE,TRIM9#

main55435-32020-03iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199206

MEDIUM GRAY,TRIM1#

main55435-32020-06iCV30,SV3#..HT..(ETO,VE)199007-199206

SABLE,TRIM4#

main55435-32021iCV30,SV3#..ETO,LUM,VL,XT199206-199406

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-32020-02iCV30,SV3#199007-199206

TAUPE,TRIM9#

main55436-32020-03iCV30,SV3#199007-199206

MEDIUM GRAY,TRIM1#

main55436-32020-06iCV30,SV3#..HT199007-199206

SABLE,TRIM4#

main55436-32021iCV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM)199206-199406

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-32010iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199406

55476CGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-32010-02iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

TAUPE,TRIM9#

main55476-32010-03iSV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F199007-199206

MEDIUM GRAY,TRIM1#

main55476-32010-06iSV35..HT;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F199007-199206

SABLE,TRIM4#

main55476-32010-E0iSV35;CV30,SV30,32,33..5F199206-199406

OAK,TRIM4#

main55476-32010-K0iSV35;CV30,SV30,32,33..5F199206-199406

TAUPE,TRIM9#

main55476-32010-S4iSV35;CV30,SV30,32,33..5F199206-199406

MI.GRAY,TRIM1#

55479DGARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER

main55479-32030-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55479-32030-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55479-32030-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55479-32030-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55479-32030-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55479-32030-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-32030×2iCV30,SV3#,VZV3#199007-199406

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-32070-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55550-32070-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55550-32070-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55550-32070-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55550-32070-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55550-32070-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main58871-30020iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199308

55512APLATE, GLOVE COMPARTMENT

main55512-22070iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199406

55521CCOVER, STEREO OPENING

main55521-16030iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199105

main55521-32010iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199105-199108

main55521-32011iCV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX199108-199406

sub55521-32020

55531BCOVER, CHOKE KNOB HOLE

main55531-32010-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55531-32010-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55531-32010-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55531-32010-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55531-32010-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55531-32010-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-20080-13iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-16iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

sub55539-12130

sub55539-32010

main55539-20080-22iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

sub55539-12130

sub55539-32010

main55539-20080-B0iCV30,SV3#,VZV3#199206-199406

MEDIUM GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

sub55539-12130

sub55539-32010

main55539-20080-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

sub55539-12130

sub55539-32010

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20080-13iVZV32199105-199206

MEDIUM GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-16iCV30,SV3#,VZV30,31..HT199007-199206

SABLE,TRIM4#

sub55539-12130

sub55539-32010

main55539-20080-22iVZV32199105-199206

TAUPE,TRIM9#

sub55539-12130

sub55539-32010

main55539-20080-B0iCV30,SV3#199206-199406

MEDIUM GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-E0iCV30,SV3#199206-199406

OAK,TRIM4#

sub55539-12130

sub55539-32010

main55539-20080-K0iCV30,SV3#199206-199406

TAUPE,TRIM9#

sub55539-12130

sub55539-32010

55539CCOVER, SPARE SWITCH HOLE

main55539-20080-13iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-16iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

sub55539-12130

sub55539-32010

main55539-20080-22iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

sub55539-12130

sub55539-32010

main55539-20080-B0iCV30,SV3#,VZV3#199206-199406

MEDIUM GRAY,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

sub55539-12130

sub55539-32010

main55539-20080-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

sub55539-12130

sub55539-32010

55539DCOVER, SPARE SWITCH HOLE

main55531-32020iCV30,SV3#,VZV3#199007-199406

55556AARM, GLOVE COMPARTMENT DOOR CHECK, RH

main55556-32010iCV30,SV3#..ETO,LUM,VE,VL,XT,ZV199007-199308

main55556-32020iCV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX199007-199308

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-32040iCV30,SV3#,VZV3#199007-199203

main55558-32041iCV30,SV3#,VZV3#199203-199406

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32030iCV30,SV3#,VZV3#199007-199406

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

sub55565-24010

main55565-22020-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

sub55565-24010

main55565-22020-12iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

sub55565-24010

main55565-22020-B0iCV30,SV3#,VZV3#199206-199406

MEDIUM GRAY,TRIM1#

sub55565-24010

main55565-22020-E1iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

sub55565-24010

main55565-22020-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

sub55565-24010

55568PLATE, GLOVE COMPARTMENT DOOR PAD

main55568-32010iCV30,SV3#,VZV3#199007-199406

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55569-22030-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55569-22030-12iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55569-22030-B0iCV30,SV3#,VZV3#199206-199406

MEDIUM GRAY,TRIM1#

main55569-22030-E1iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55569-22030-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

55573BARM, GLOVE COMPARTMENT DOOR CHECK, LH

main55573-32020iCV30,SV3#,VZV3#199007-199406

55581ACOMPARTMENT, GLOVE

main55581-32030iCV30,SV3#,VZV3#199007-199406

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-32050iSV30..VR,ZE;CV30,SV32,33,35,VZV3#199007-199308

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-32030iSV30..VR,ZE;CV30,SV32,33,35,VZV3#199007-199308

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-32100iCV30,SV3#,VZV3#199007-199406

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-32100iCV30,SV3#,VZV3#199007-199406

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-32090-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55670-32090-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55670-32090-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55670-32090-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55670-32090-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55670-32090-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-16iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55680-14030-42iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55680-14030-B0iCV30,SV3#,VZV3#199007-199406

MEDIUM GRAY,TRIM1#

main55680-14030-E3iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55680-14030-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

55950ANOZZLE ASSY, DEFROSTER

main55950-32050iCV30,SV3#,VZV3#199007-199406

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-32080-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55961-32080-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55961-32080-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55961-32080-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55961-32080-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55961-32080-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-32060-02iCV30,SV3#,VZV3#199007-199206

TAUPE,TRIM9#

main55962-32060-03iCV30,SV3#,VZV3#199007-199206

MEDIUM GRAY,TRIM1#

main55962-32060-06iCV30,SV3#,VZV3#..HT199007-199206

SABLE,TRIM4#

main55962-32060-E0iCV30,SV3#,VZV3#199206-199406

OAK,TRIM4#

main55962-32060-K0iCV30,SV3#,VZV3#199206-199406

TAUPE,TRIM9#

main55962-32060-S4iCV30,SV3#,VZV3#199206-199406

MI.GRAY,TRIM1#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-32060iCV30,SV3#,VZV3#199007-199406

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-32060iCV30,SV3#,VZV3#199007-199406

8889120120PACKING (FOR COOLER)

main88891-20120

9010508120

main90105-08120

9011906042

main90119-06042

9011906106

main90119-06106

9011906126

main90119-06126

9015140005

main90151-40005

9017906097

main90179-06097

9017908025

main90179-08025

9017918025

main90179-18025

9018304046

main90183-04046

9018305018

main90183-05018

9018305035

main90183-05035

9018306009

main90183-06009

9046714013

main90467-14013

9046804157

main90468-04157

9054105020

main90541-05020

9054105080

main90541-05080

9166560820

main91665-60820

9338516025

main93385-16025

9356755016

main93567-55016

9356815012

main93568-15012

67 parts on this diagram · 1 diagram in section
