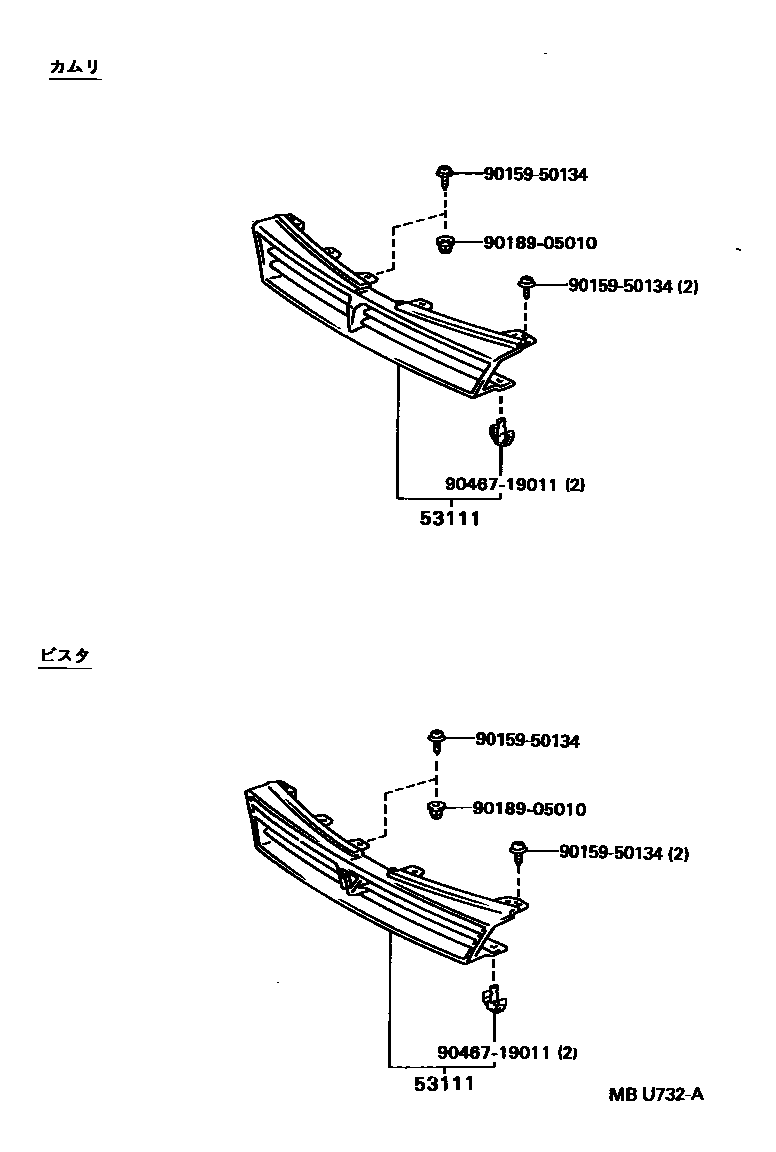

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

53111GRILLE, RADIATOR

main53101-32170iCV30,SV3#..HT199007-199206

main53101-32190iVZV3#199007-199206

main53101-32200iCV30,SV3#..VIS..SED199206-199406

main53101-32210iVZV3#199206-199406

main53101-32230iCV30,SV3#..CAM199206-199406

main53111-32180iCV30,SV3#..VIS..SED199007-199206

main53111-32190iCV30,SV3#..CAM199007-199206

main53111-32250iCV30,SV3#..HT199206-199406

9015950134

main90159-50134

9018905010

main90189-05010

9046719011

main90467-19011

4 parts on this diagram · 4 diagrams in section
