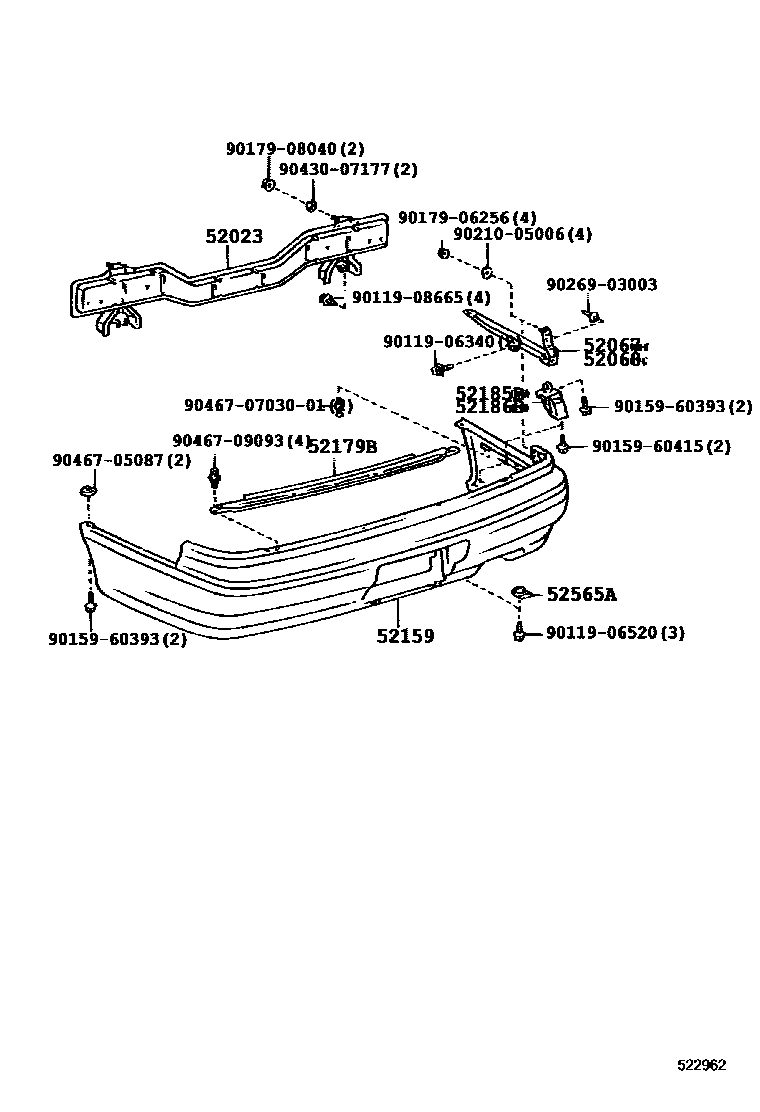

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-32150iCV30,SV3#..SED199007-199406

main52023-32160iCV30,SV3#,VZV3#..HT199007-199406

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-32050iCV30,SV3#..SED199007-199406

main52067-32060iCV30,SV3#,VZV3#..HT199007-199406

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-32050iCV30,SV3#..SED199007-199406

main52068-32060iCV30,SV3#,VZV3#..HT199007-199406

52159COVER, REAR BUMPER

main52159-32270-02iCV30,SV3#..SED199007-199101

RED MICA M,3J9

main52159-32270-03iCV30,SV3#..SED199007-199206

AMETHYST SILVER M,920

main52159-32270-07iCV30,SV3#..SED199007-199206

MED TURQUOISE OPAL,744

main52159-32270-08iCV30,SV3#..SED199007-199206

SUPER WHITE 2,040

main52159-32270-13iCV30,SV3#..SED199007-199206

DARK BLUEISH GRAY M,191

main52159-32270-17iCV30,SV3#..SED199101-199206

GRAYSH GREEN M,6K6

main52159-32280-A0iCV30,SV3#..SED199206-199208

SUPER WHITE 2,040

main52159-32280-B0iCV30,SV3#..SED199206-199208

DK BLUISHGRAY MICA,191

main52159-32280-E0iCV30,SV3#..SED199206-199208

LI BEIGE ME,4M3

main52159-32280-G0iCV30,SV3#..SED199206-199208

GRAYISH GREEN ME,6K6

main52159-32280-G1iCV30,SV3#..SED199206-199208

DK GREEN MICA,6M1

main52159-32280-K0iCV30,SV3#..SED199206-199208

GRAYISH PURPLE M,923

main52159-32281-A0iCV30,SV3#..SED199208-199406

SUPER WHITE 2,040

main52159-32281-B0iCV30,SV3#..SED199208-199406

DK BLUISHGRAY MICA,191

main52159-32281-E0iCV30,SV3#..SED199208-199406

LI.BEIGE ME,4M3

main52159-32281-G0iCV30,SV3#..SED199208-199406

GRAYISH GREEN ME,6K6

main52159-32281-G1iCV30,SV3#..SED199208-199406

DK GREEN MICA,6M1

main52159-32281-K0iCV30,SV3#..SED199208-199406

GRAYISH PURPLE ME,923

main52159-32290-A0iCV30,SV32,33,35..SED..(VX,ZX)199206-199208

main52159-32290-B0iCV30,SV32,33,35..SED..(VX,ZX)199206-199208

main52159-32290-E0iCV30,SV32,33,35..SED..(VX,ZX)199206-199208

main52159-32290-G0iCV30,SV32,33,35..SED..(VX,ZX)199206-199208

main52159-32290-G1iCV30,SV32,33,35..SED..(VX,ZX)199206-199208

main52159-32290-K0iCV30,SV32,33,35..SED..(VX,ZX)199206-199208

main52159-32291-A0iCV30,SV32,33,35..SED..(VX,ZX)199208-199406

main52159-32291-B0iCV30,SV32,33,35..SED..(VX,ZX)199208-199406

main52159-32291-E0iCV30,SV32,33,35..SED..(VX,ZX)199208-199406

main52159-32291-G0iCV30,SV32,33,35..SED..(VX,ZX)199208-199406

main52159-32291-G1iCV30,SV32,33,35..SED..(VX,ZX)199208-199406

main52159-32291-K0iCV30,SV32,33,35..SED..(VX,ZX)199208-199406

main52159-32300-02iCV30,SV3#,VZV3#..HT199007-199101

RED MICA M,3J9

main52159-32300-03iCV30,SV3#,VZV3#..HT199007-199206

AMETHYST SILVER M,920

main52159-32300-04iCV30,SV3#,VZV3#..HT199206-199208

SUPER WHITE 2,040

main52159-32300-07iCV30,SV3#..HT199007-199206

MED TURQUOISE OPAL,744

main52159-32300-08iCV30,SV3#,VZV3#..HT199007-199206

SUPER WHITE 2,040

main52159-32300-13iVZV3#199007-199206

BLUEISH GRAY ARGEN M,187

main52159-32300-17iCV30,SV3#,VZV3#..HT199101-199206

GRAYISH GREEN M,6K6

main52159-32300-19iCV30,SV3#,VZV3#..HT199206-199208

DK BLUISHGRAY MICA,191

main52159-32300-23iCV30,SV3#,VZV3#..HT199007-199206

DARK BLUEISH GRAY M,191

main52159-32300-E0iCV30,SV3#,VZV3#..HT199206-199208

LI BEIGE ME,4M3

main52159-32300-G0iCV30,SV3#,VZV3#..HT199206-199208

GRAYISH GREEN ME,6K6

main52159-32300-G2iCV30,SV3#,VZV3#..HT199206-199208

DK GREEN MICA,6M1

main52159-32300-K0iCV30,SV3#,VZV3#..HT199206-199208

GRAYISH PURPLE M,923

main52159-32301-04iCV30,SV3#,VZV3#..HT199208-199406

SUPER WHITE 2,040

main52159-32301-19iCV30,SV3#,VZV3#..HT199208-199406

DK BLUISHGRAY MICA,191

main52159-32301-E0iCV30,SV3#,VZV3#..HT199208-199406

LI BEIGE ME,4M3

main52159-32301-G0iCV30,SV3#,VZV3#..HT199208-199406

GRAYISH GREEN ME,6K6

main52159-32301-G2iCV30,SV3#,VZV3#..HT199208-199406

DK GREEN MICA,6M1

main52159-32301-K0iCV30,SV3#,VZV3#..HT199208-199406

GRAYISH PURPLE M,923

main52159-32310-03iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

DRESSY NIGHT TONNING,26R

main52159-32310-08iCV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX)199007-199206

GRACIOUS PEARL TONNI,25R

main52159-32310-A0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199208

GRACIOUS PEARLTONING,25R

main52159-32310-G3iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199206-199208

OLIVE BREEZE TONING,25U

main52159-32311-A0iCV30,SV30..HT..ETO199212-199303

main52159-32311-A0iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199208-199406

GRACIOUS PEARLTONING,25R

main52159-32311-A0iCV30,SV30,35..ETO199308-199406

main52159-32311-G3iCV30,SV30..HT..ETO199212-199303

main52159-32311-G3iCV30,SV3#,VZV3#..HT..(PRO,VR,VX)199208-199406

OLIVE BREEZE TONING,25U

main52159-32320-A1iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199208

main52159-32320-B0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199208

main52159-32320-E0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199208

main52159-32320-G0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199208

main52159-32320-G2iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199208

main52159-32320-K0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199208

main52159-32321-A1iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199208-199406

main52159-32321-B0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199208-199406

main52159-32321-E0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199208-199406

main52159-32321-G0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199208-199406

main52159-32321-G2iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199208-199406

main52159-32321-K0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199208-199406

main52159-32330-A0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199208

main52159-32331-A0iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199208-199406

main52159-32331-G3iCV30,SV32,33,35,VZV3#..HT..(PRO,VX)199206-199406

52179BPLATE, REAR BUMPER BAR

main52179-32040iCV30,SV3#..SED199007-199309

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-32020iCV30,SV3#,VZV3#..HT199007-199406

main52185-32030iCV30,SV3#..SED199007-199406

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-32020iCV30,SV3#,VZV3#..HT199007-199406

main52186-32030iCV30,SV3#..SED199007-199406

52565ARETAINER, REAR BUMPER, LOWER

main52565-32050iCV30,SV3#,VZV3#199007-199406

9011906340

main90119-06340

9011906520

main90119-06520

9011908665

main90119-08665

9015960393

main90159-60393

9015960415

main90159-60415

9017906256

main90179-06256

9017908040

main90179-08040

9021005006

main90210-05006

9026903003

main90269-03003

9043007177

main90430-07177

9046705087

main90467-05087

904670703001

main90467-0703001

9046709093

main90467-09093

21 parts on this diagram · 4 diagrams in section
