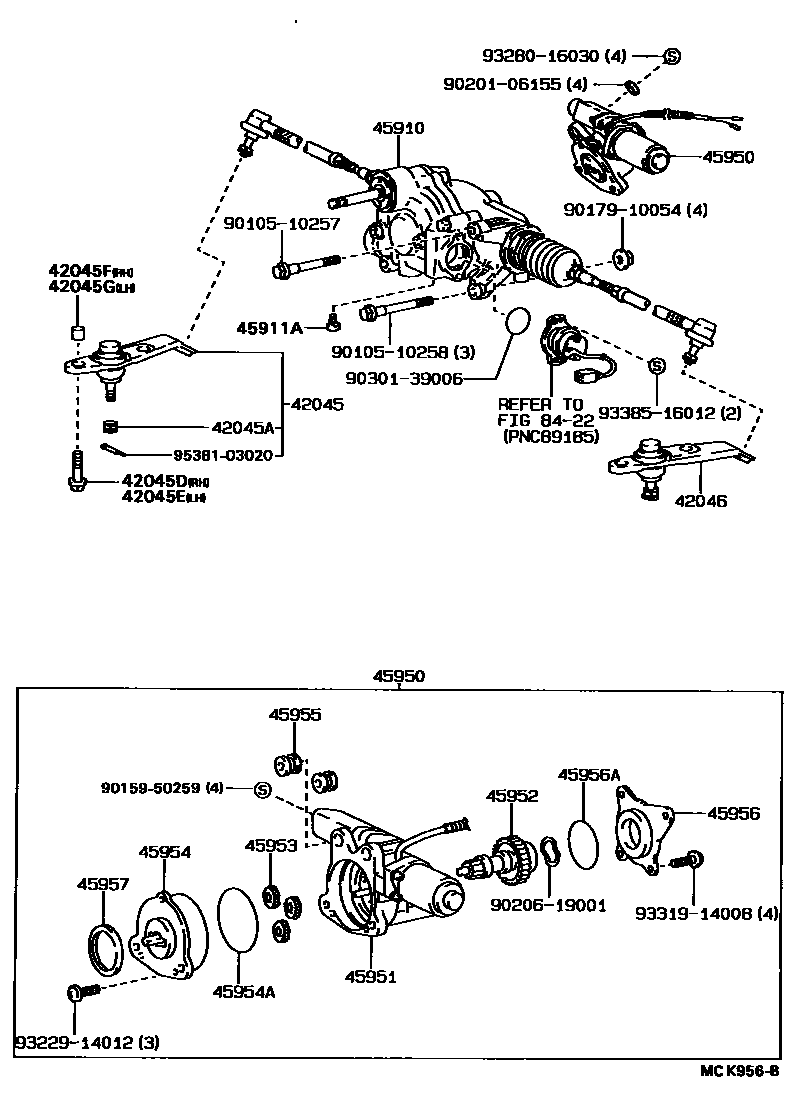

REAR STEERING GEAR (4WS)

0001 1 0002 1

42045ARM SUB-ASSY, REAR STEERING KNUCKLE, RH

main42045-29015iSV33,VZV31,33199007-199406

42045ANUT (FOR REAR STEERING KNUCKLE ARM)

main90171-14002×2iSV33,VZV31,33199007-199406

42045DBOLT (FOR REAR STEERING KNUCKLE ARM, RH)

main90105-12191×2iSV33,VZV31,33199007-199406

42045EBOLT (FOR REAR STEERING KNUCKLE ARM, LH)

main90105-12191×2iSV33,VZV31,33199007-199406

42045FPIN (FOR REAR STEERING KNUCKLE ARM, RH)

main90253-15016×2iSV33,VZV31,33199007-199406

42045GPIN (FOR REAR STEERING KNUCKLE ARM, LH)

main90253-15016×2iSV33,VZV31,33199007-199406

42046ARM SUB-ASSY, REAR STEERING KNUCKLE, LH

main42046-29015iSV33,VZV31,33199007-199406

45910GEAR ASSY, REAR STEERING

main45910-32010iSV33,VZV31,33199007-199406

45911HOUSING, REAR STEERING GEAR

main45911-32010iSV33,VZV31,33199007-199406

45911ABOLT, NO.1(FOR REAR STEERING GEAR HOUSING)

main90110-08021iSV33,VZV31,33199007-199406

45950CONVERTER ASSY, REAR STEERING ANGLE RATIO

main45950-32010iSV33,VZV31,33199007-199406

45951HOUSING, REAR STEERING ANGLE RATIO CONVERTER

main45951-32010iSV33,VZV31,33199007-199406

45952SHAFT, REAR STEERING ANGLE RATIO CONVERTER

main45952-20010iSV33,VZV31,33199007-199406

45953GEAR, REAR STEERING ANGLE RATIO CONVERTER

main45953-20010×3iSV33,VZV31,33199007-199406

45954FRAME, REAR STEERING ANGLE RATIO CONVERTER

main45954-32010iSV33,VZV31,33199007-199406

45954ARING, O(FOR REAR STEERING ANGLE RATIO CONVERTER FRAME)

main90301-67002iSV33,VZV31,33199007-199406

45955BUSH, REAR STEERING ANGLE RATIO CONVERTER

main45955-20010×2iSV33,VZV31,33199007-199406

45956CAP, REAR STEERING ANGLE RATIO CONVERTER

main45956-20010iSV33,VZV31,33199007-199406

45956ARING, O(FOR REAR STEERING ANGLE RATIO CONVERTER CAP)

main96711-24047iSV33,VZV31,33199007-199406

45957SEAL(FOR REAR STEERING ANGLE RATIO CONVERTER)

main45957-20010iSV33,VZV31,33199007-199406

8422

9010510257

main90105-10257

9010510258

main90105-10258

9015950259

main90159-50259

9017910054

main90179-10054

9020106155

main90201-06155

9020619001

main90206-19001

9030139006

main90301-39006

9322914012

main93229-14012

9328016030

main93280-16030

9331914008

main93319-14008

9338516012

main93385-16012

9538103020

main95381-03020

33 parts on this diagram · 2 diagrams in section
