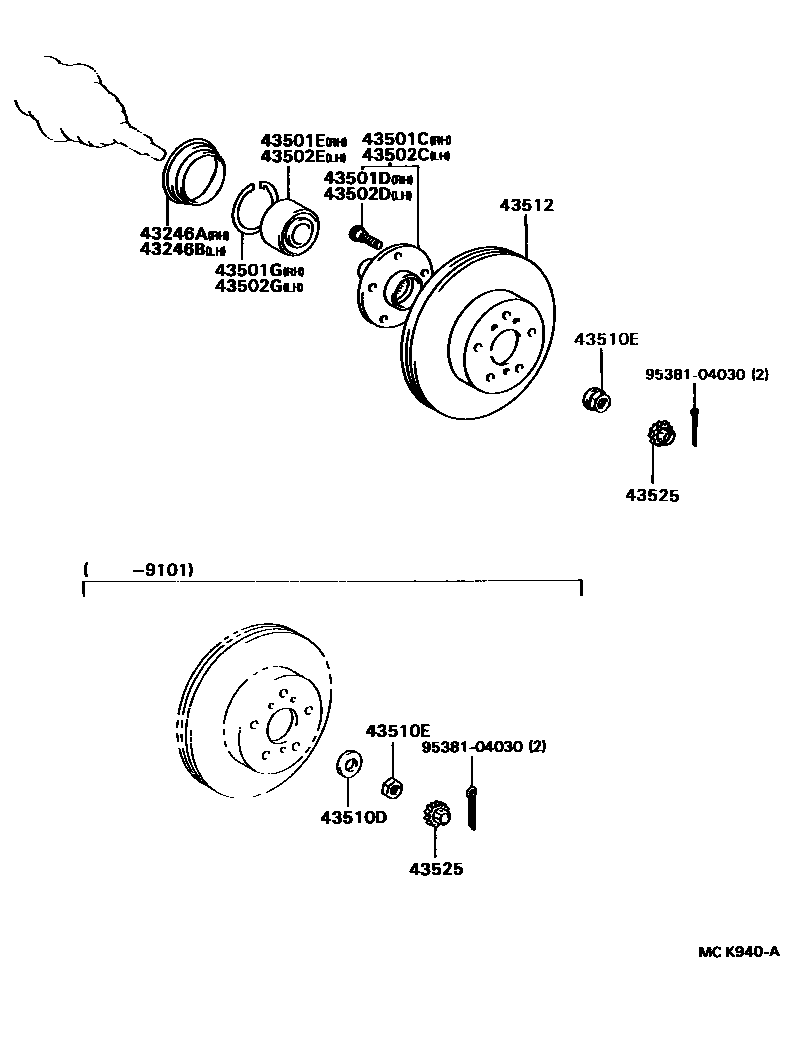

FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-17020iCV30,SV3#,VZV3#199206-199406

main43246-32020iSV3#,VZV3#199007-199206

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-17020iCV30,SV30,32,35,VZV30,32199007-199406

main43246-32020iSV3#,VZV3#199007-199406

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32070iSV33..GT,VX,ZX;CV30,SV30,32,35,VZV3#199007-199105

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iCV30,SV3#,VZV3#199007-199406

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43008iSV33..GT,VX,ZX;CV30,SV30,32,35,VZV3#199007-199105

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iSV33..GT,VX,ZX;CV30,SV30,32,35,VZV3#199007-199105

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32070iCV30,SV3#,VZV3#199007-199406

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iCV30,SV3#,VZV3#199007-199406

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43008iCV30,SV3#,VZV3#199007-199406

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iCV30,SV3#,VZV3#199007-199406

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012×2iCV30,SV3#,VZV3#199007-199101

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001×2iCV30,SV3#,VZV3#199007-199101

main90179-22020×2iCV30,SV3#,VZV3#199101-199406

43512DISC, FRONT

main43512-32220×2iCV30,SV30199007-199406

main43512-32240×2iSV32,33,35..ETO,LUM,VE,VX,ZV,ZX199007-199406

main43512-32250×2iSV32,33,VZV3#..GT,PRO199007-199406

sub43512-42030

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010×2iCV30,SV3#,VZV3#199007-199101

main43525-20030×2iCV30,SV3#,VZV3#199101-199406

9538104030

main95381-04030

15 parts on this diagram · 1 diagram in section
