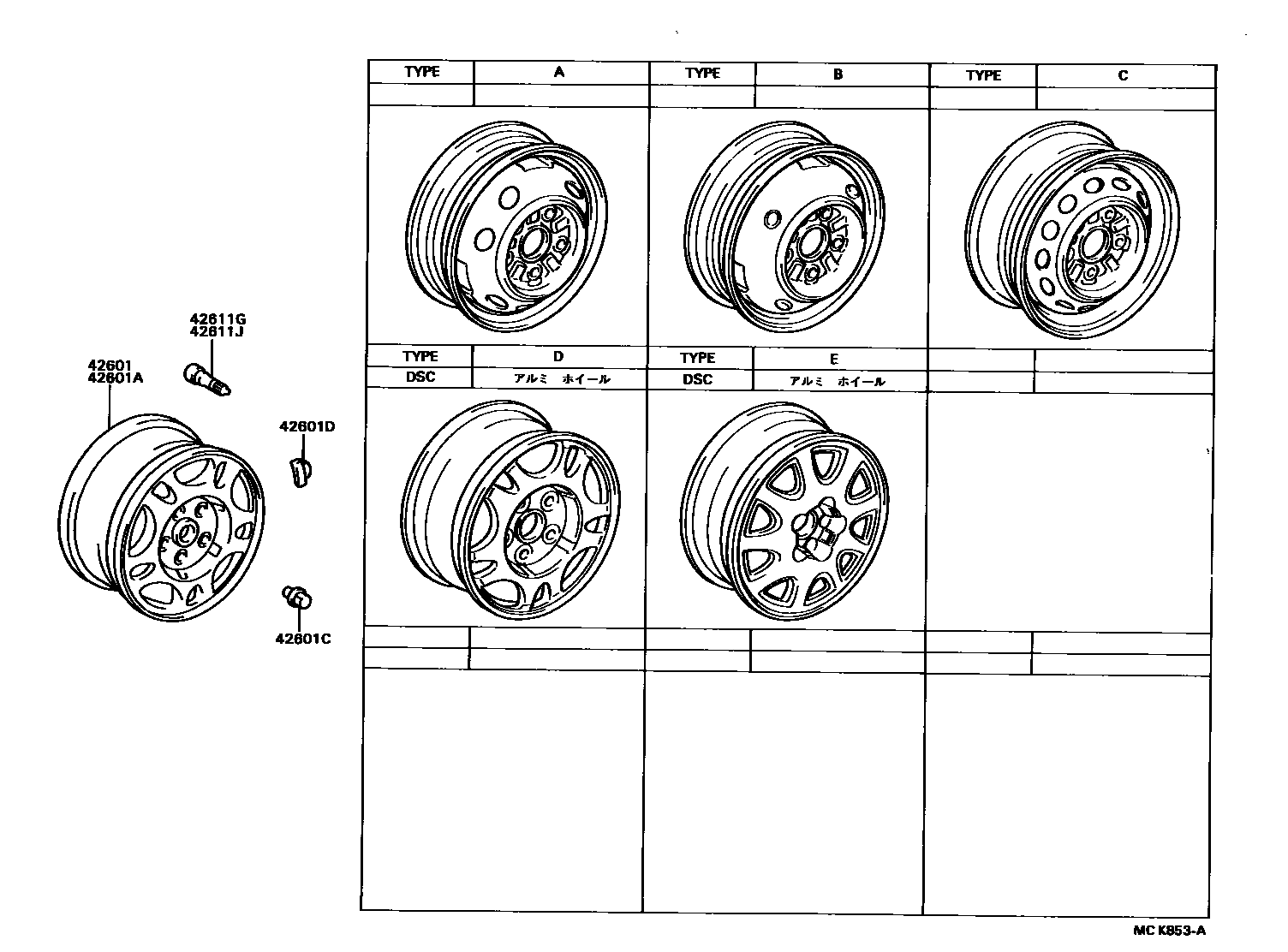

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-32260-01×4iCV30,SV3#199206-199406

main42611-32270-01×4iVZV32199206-199406

sub42611-32271

main42611-32290×4iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main42611-32300×4iSV32,33,VZV32,33..GT,PRO199007-199406

main42611-32310×4iCV30,SV30,32,33..ETO,LUM,VR,VX,ZE,ZX199206-199406

main42611-33040×4iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199106-199206

42601AWHEEL, DISC (FOR SPARE)

main42611-17130iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main42611-28210iSV32,33,VZV3#..GT,PRO199007-199406

sub42611-28211

main42611-32260-01iCV30,SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main42611-32270-01iVZV30,31199007-199206

sub42611-32271

main42611-32290iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main42611-32300iSV32,33,VZV32,33..GT,PRO199007-199406

main42611-32310×4iCV30,SV30,32,33..ETO,LUM,VR,VX,ZE,ZX199206-199406

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iVZV32,33199105-199206

main90942-01021×20iCV30,SV3#..ZE,ZX199206-199406

main90942-01058×20iCV30,SV30,32,33..ETO,LUM,VR,VX,ZE,ZX199206-199404

main90942-01062×20iSV32,33,VZV32,33..GT,PRO199007-199406

main90942-01083×20iCV30,SV30,32,33..ETO,LUM,VR,VX,ZE,ZX199404-199406

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iVZV32199206-199406

main90942-03020iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03022iVZV32199206-199406

main90942-03025iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03027iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03029iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03031iVZV32199206-199406

main90942-03041iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03098iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03099iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03100iVZV32199105-199206

main90942-03101iVZV32199105-199206

main90942-03102iVZV32199206-199406

main90942-03108iVZV32199206-199406

main90942-03109iVZV32199206-199406

main90942-03146iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main90942-03147iSV32,33..HT..ETO;SV32,33..SED..(ETO,LUM,VX);CV30,SV30..ETO,LUM,VR,VX,ZE,ZX199206-199406

main90942-03148iVZV32199206-199406

main90942-03149iVZV3#199007-199105

main90942-03150iVZV32199206-199406

main90942-03151iSV32,33,VZV32,33..GT,PRO199007-199406

main90942-03152iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main90942-03153iSV32,33..HT..ETO;SV32,33..SED..(ETO,LUM,VX);CV30,SV30..ETO,LUM,VR,VX,ZE,ZX199206-199406

main90942-03154iVZV32199206-199406

main90942-03155iSV32,33..HT..ETO;SV32,33..SED..(ETO,LUM,VX);CV30,SV30..ETO,LUM,VR,VX,ZE,ZX199206-199406

main90942-03156iVZV32199206-199406

main90942-03157iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main90942-03158iVZV32199206-199406

main90942-03159iSV32,33..HT..ETO;SV32,33..SED..(ETO,LUM,VX);CV30,SV30..ETO,LUM,VR,VX,ZE,ZX199206-199406

main90942-03160iVZV32199206-199406

main90942-03161iVZV32199105-199206

main90942-03167iSV32,33..HT..ETO;SV32,33..SED..(ETO,LUM,VX);CV30,SV30..ETO,LUM,VR,VX,ZE,ZX199206-199406

main90942-03194iVZV32199206-199406

main90942-03195iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03203iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03204iVZV32199105-199206

main90942-03205iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03206iVZV32199105-199206

main90942-03207iCV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199406

main90942-03208iVZV32199206-199406

main90942-03209iVZV32199206-199406

main90942-03210iCV30,SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX199007-199206

main90942-03211iVZV32199206-199406

main90942-03212iVZV32199206-199406

main90942-03213iSV32,33..HT..ETO;SV32,33..SED..(ETO,LUM,VX);CV30,SV30..ETO,LUM,VR,VX,ZE,ZX199206-199406

main90942-03214iVZV32199206-199406

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iCV30,SV3#,VZV3#199007-199406

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iCV30,SV3#,VZV3#199007-199406

6 parts on this diagram · 2 diagrams in section
