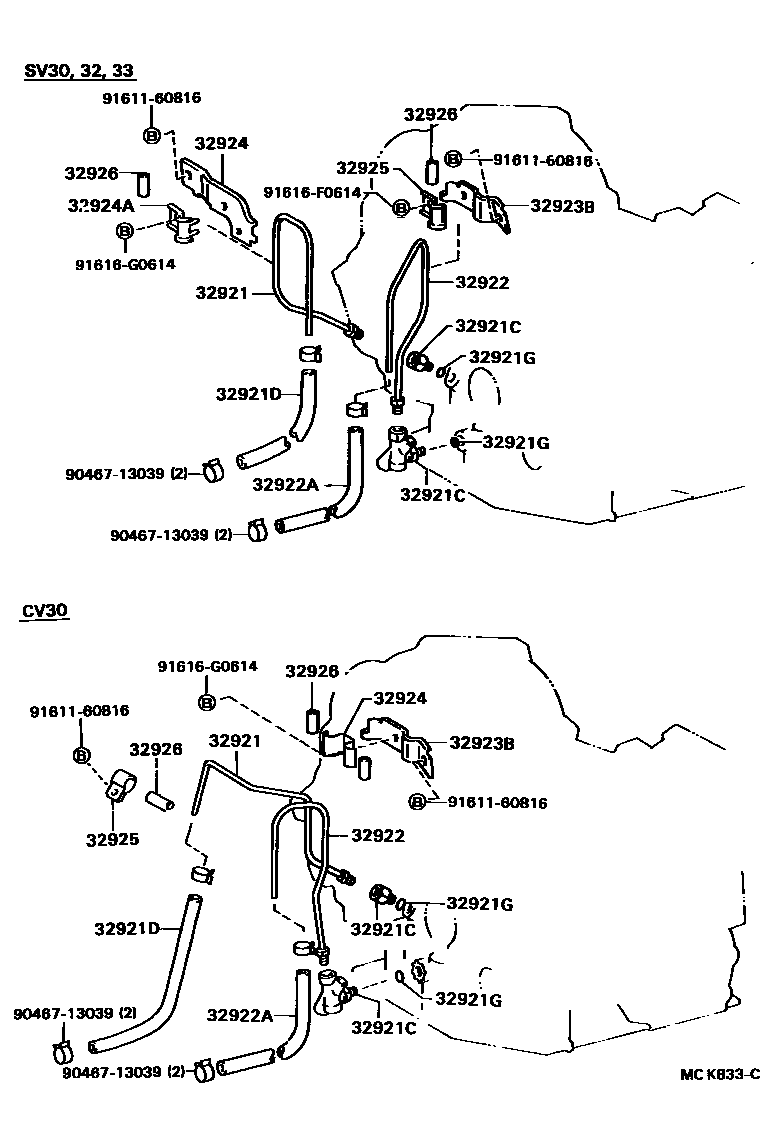

OIL COOLER & TUBE (ATM)

0001 1A140E,A140L 0002 1A540E,A540H

32921TUBE, OIL COOLER INLET, NO.1

main32921-32041iCV30..4FC199007-199406

main32921-32052iSV30,32,33..4FC199007-199406

sub32921-32051

main32921-32130iVZV3#..4FC199007-199406

main32921-32140iSV35..4FC199007-199406

32921CUNION(FOR OIL COOLER TUBE)

main32901-32030iSV35,VZV3#..4FC199007-199008

OUTLET

main32901-32040iCV30,SV30,32,33..4FC199007-199008

OUTLET

main32901-32060iSV35,VZV3#..4FC199008-199406

OUTLET

main32901-32070iCV30,SV30,32,33..4FC199008-199406

OUTLET

main32918-32010iSV35..4FC199007-199406

INLET

main90402-14004×2iCV30,SV30,32,33..4FC199206-199406

main90404-14007iCV30,SV30,32,33..4FC199007-199106

INLET

main90404-14018iSV32,33..4FC199106-199108

INLET

main90404-16021iVZV3#..4FC199007-199108

INLET

main90404-16031iVZV3#..4FC199108-199406

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15042iSV30,32,33..4FC199007-199406

main90445-15057iCV30..4FC199007-199406

sub32941-22310

main90445-17096iSV35..4FC199007-199406

main90445-17117iVZV3#..4FC199007-199201

main90445-17124iVZV3#..4FC199201-199206

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×3iSV35,VZV3#..4FC199206-199406

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32070iSV35,VZV3#..4FC199007-199008

main32922-32071iSV35,VZV3#..4FC199008-199206

main32922-32072iSV35,VZV3#..4FC199206-199406

main32922-32080iSV30,32,33..4FC199007-199008

main32922-32081iSV30,32,33..4FC199008-199406

main32922-32100iCV30..4FC199007-199008

main32922-32101iCV30..4FC199008-199406

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15048iCV30,SV30,32,33..4FC199007-199406

main90445-17106iSV35,VZV3#..4FC199007-199406

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20090iCV30,SV30,32,33..4FC199007-199406

main32923-32030iSV35..4FC199007-199406

main32923-32040iVZV3#..4FC199007-199406

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-20111iSV30,32,33..4FC199007-199406

main90462-12044iVZV3#..4FC199007-199406

main90462-12071×2iSV35..4FC199007-199406

main90462-12085iCV30..4FC199007-199406

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-10082iSV30,32,33..4FC199007-199406

32925CLAMP, OIL COOLER TUBE, NO.3

main32923-32060iSV35..4FC199007-199406

main90461-06207iCV30..4FC199007-199406

sub96221-24914

main90462-10082iSV30,32,33..4FC199007-199406

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×3iCV30..4FC199007-199301

main32926-30020iSV35,VZV3#..4FC199007-199406

main32926-32010iSV35,VZV3#..4FC199007-199406

9046713039

main90467-13039

9161160816

main91611-60816

91616F0614

main91616-F0614

91616G0614

main91616-G0614

15 parts on this diagram · 2 diagrams in section
