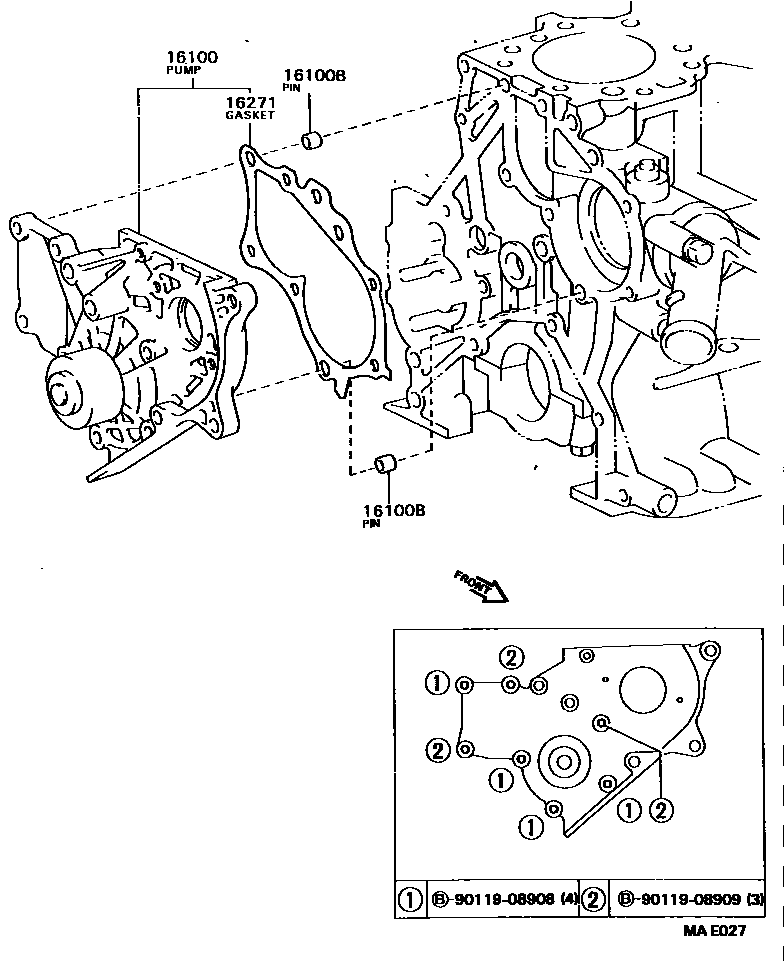

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-69206i1VZFE..VZV3#199007-199105

main16100-69295i2CT..CV30199007-199406

sub16100-69296

main16100-69305i1VZFE,4VZFE..VZV3#199105-199208

sub12315-62031

main16100-69335i4VZFE..VZV3#199208-199406

sub16100-69455

main16100-79175i3SGE..SV32,33199007-199206

sub16100-79176

main16100-79185i3SFE,4SFE..SV3#199007-199406

sub16100-79186

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2CT..CV30199007-199406

16271GASKET, WATER PUMP

main16271-64030i2CT..CV30199007-199406

sub16271-64031

9011908908

main90119-08908

9011908909

main90119-08909

5 parts on this diagram · 5 diagrams in section
