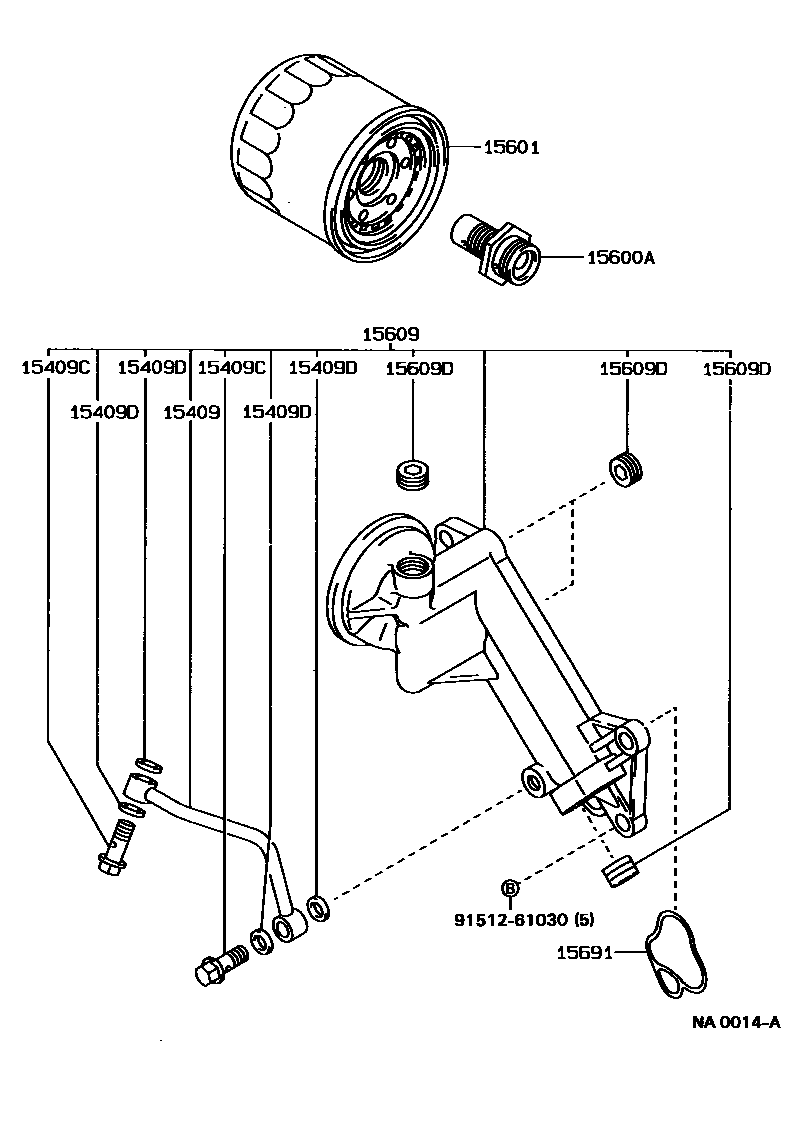

OIL FILTER

0001 1 0002 1 0003 1

15409PIPE OR HOSE, OIL FILTER OUTLET

main15431-64030i2CT..CV30199007-199406

15409CBOLT, UNION(FOR OIL FILTER OUTLET PIPE)

main90401-10031×2i2CT..CV30199007-199406

15409DGASKET(FOR OIL FILTER OUTLET PIPE)

main90430-10027×4i2CT..CV30199302-199305

main90430-10035×4i2CT..CV30199305-199406

15600AUNION(FOR OIL FILTER)

main15116-54021i2CT..CV30199106-199406

main90404-19002i3S#,4SFE..SV3#199007-199406

main90404-27001i2CT..CV30199007-199106

15601FILTER SUB-ASSY, OIL

main90915-03001i3S#,4SFE..SV3#199007-199204

main90915-03002i1VZFE,4VZFE..VZV3#199007-199204

main90915-03003i2CT..CV30199007-199106

main90915-10001i3S#,4SFE..SV3#199204-199406

sub90915-10003

main90915-20001i1VZFE,4VZFE..VZV3#199204-199406

sub90915-20003

main90915-30001i2CT..CV30199106-199406

15609BRACKET SUB-ASSY, OIL FILTER

main15608-64040i2CT..CV30199007-199406

sub15608-64041

main15671-62010i1VZFE,4VZFE..VZV3#199007-199406

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90344-53002×5i2CT..CV30199007-199406

15691GASKET, OIL FILTER

main15691-64040i2CT..CV30199007-199406

sub15691-64041

9151261030

main91512-61030

9 parts on this diagram · 3 diagrams in section
