VENTILATION HOSE

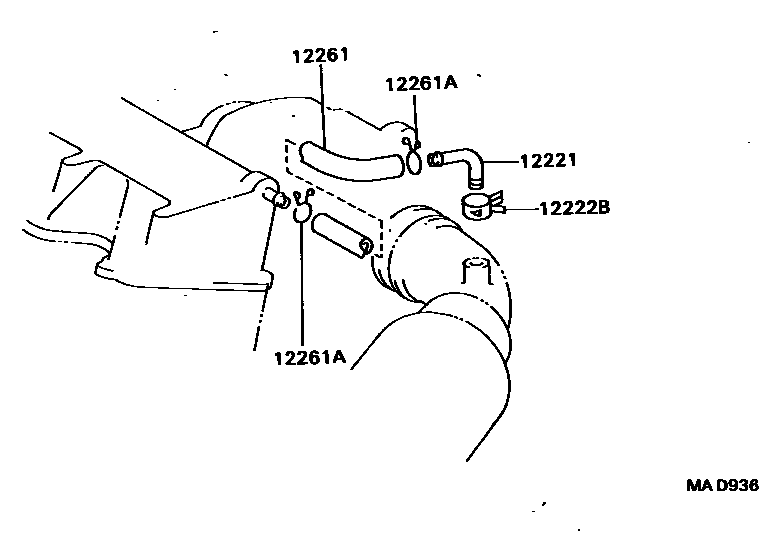

Parts diagram
12221TUBE, VENTILATION NO.1
main90407-10011i199007-199206
main90407-14026i199206-199406
12222BCLIP(FOR VENTILATION TUBE)
main96132-31000i199007-199206
sub96132-41500
main96132-41500i199206-199406
12261HOSE, VENTILATION
main12261-62020i199007-199206
main12261-62030i199105-199406
main12261-64070i199007-199206
main12261-64140i199206-199406
main12261-74020i199007-199406
main12261-88362i199007-199206
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199105-199406
main90467-15016i199206-199406
sub96135-51400
main90467-15120i199007-199206
main90467-17011i199007-199206
BODY SIDE
sub96134-51700
main90467-17012i199007-199206
HEAD COVER SIDE
main90467-18003i199206-199406

4 parts on this diagram · 5 diagrams in section
