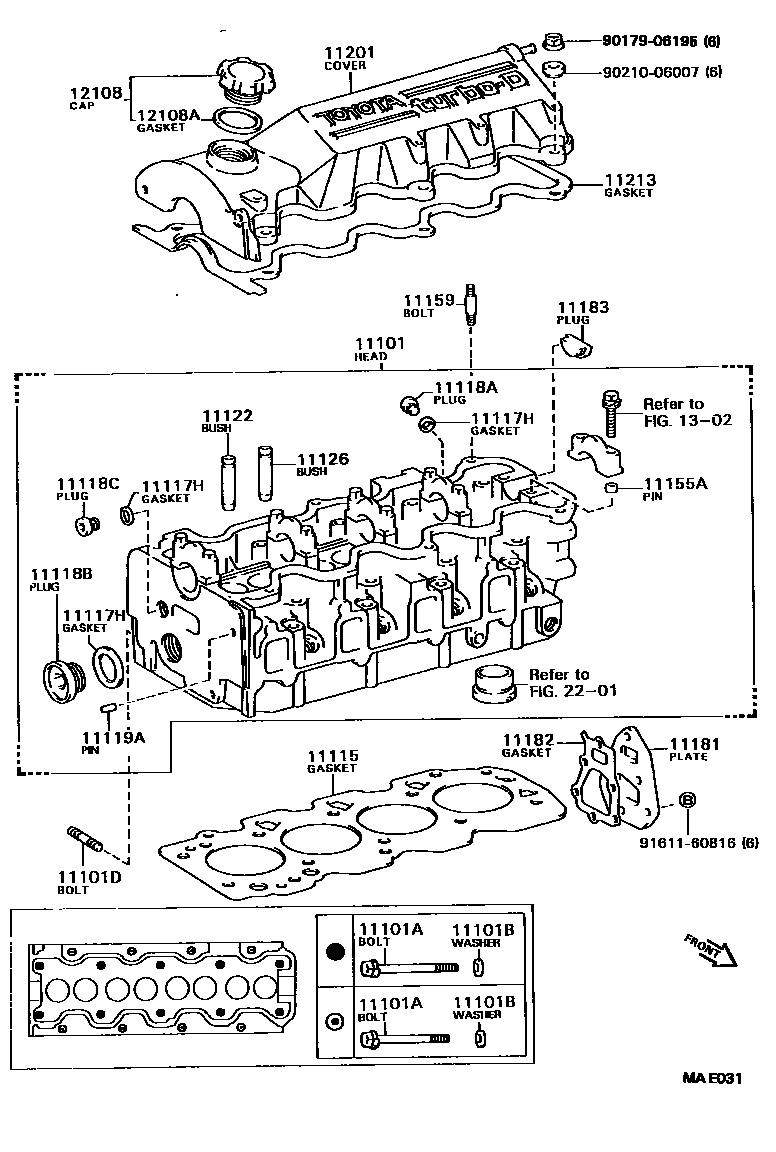

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

main11101-64132i2CT..CV30199007-199206

sub11101-64133

sub11115-64122

main11101-64170i2CT..CV30199206-199406

sub11101-64171

sub11115-64122

main11101-69065i1VZFE..VZV30,31199007-199106

sub11101-69066

sub90201-11028

main11101-69066i1VZFE..VZV30,31199106-199206

main11101-69075i4VZFE..VZV32,33199105-199406

main11101-74030i4SFE..SV30199007-199201

sub11101-74901

main11101-74030i4SFE..SV30199201-199206

W(CASE COVER PLUG)

sub11101-74901

main11101-74121i3SGE..SV32,33199007-199206

main11101-74130i3SFE..SV32,33,35199007-199201

sub11101-74900

main11101-74130i3SFE,4SFE..SV3#199206-199211

W(CASE PLUG COVER)

sub11101-74900

main11101-74130i3SFE..SV32,33,35199201-199206

W(CASE COVER PLUG)

sub11101-74900

main11101-74190i4SFE..SV30199201-199206

sub11101-74901

main11101-74200i3SFE,4SFE..SV3#199201-199211

sub11101-74900

main11101-79165i3SFE,4SFE..SV3#199211-199406

sub11101-79175

11101ABOLT(FOR CYLINDER HEAD SET)

main90109-10132i3SFE,4SFE..SV3#199007-199406

main90910-02077i1VZFE,4VZFE..VZV3#199007-199406

main90910-02094i3SGE..SV32,33199007-199206

main90910-02097i2CT..CV30199007-199206

11-1.25PX130-50

main90910-02097i2CT..CV30199206-199406

*11-1.25PX130-50

main90910-02099i2CT..CV30199206-199406

*11-1.25PX152-50

main90910-02099i2CT..CV30199007-199206

11-1.25PX152-50

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11018i1VZFE..VZV3#199007-199105

sub90201-11034

main90201-11026i3S#,4SFE..SV3#199007-199406

main90201-11028i1VZFE,4VZFE..VZV3#199105-199406

main90201-12222i2CT..CV30199007-199406

11101DBOLT, STUD(FOR WATER OUTLET)

main92122-60820i2CT..CV30199007-199406

11115GASKET, CYLINDER HEAD

main11115-62050i1VZFE..VZV30,31199007-199206

main11115-62060i4VZFE..VZV32,33199105-199406

main11115-64120i2CT..CV30199007-199101

sub11115-64121

main11115-64121i2CT..CV30199101-199406

sub11115-64122

main11115-74060i4SFE..SV30199007-199406

main11115-74070i3SFE..SV32,33,35199007-199406

main11115-74090i3SGE..SV32,33199007-199206

11117HGASKET(FOR WATER HOLE)

main90430-10204i2CT..CV30199007-199406

main90430-12010i2CT..CV30199007-199406

main90430-24013i1VZFE,4VZFE..VZV3#199105-199406

main90430-24246i1VZFE..VZV30,31199007-199406

main90430-33133i2CT..CV30199007-199406

11118APLUG, STRAIGHT, NO.1

main90341-10005i2CT..CV30199007-199406

main90341-27005i3SGE..SV32,33199007-199008

sub90341-27006

main90341-27006i3SGE..SV32,33199008-199206

main90341-32031i3SGE..SV32,33199007-199206

11118BPLUG, STRAIGHT, NO.2

main90341-32070i2CT..CV30199007-199406

11118CPLUG, STRAIGHT, NO.3

main90341-12013i2CT..CV30199007-199406

11119APIN, STRAIGHT, NO.1

main90250-06003i3S#,4SFE..SV3#199007-199406

main90250-06013i2CT..CV30199206-199406

main90250-06068i2CT..CV30199007-199406

11122BUSH, INTAKE VALVE GUIDE

main11122-16010i4SFE..SV30199007-199206

sub11122-16020

main11122-16020i1VZFE,4VZFE..VZV3#199007-199406

main11122-64010i2CT..CV30199007-199406

main11122-74030i3SFE,4SFE..SV3#199007-199406

main11122-88320i3SGE..SV32,33199007-199206

main11123-16010i4SFE..SV30199007-199206

main11123-16020i1VZFE,4VZFE..VZV3#199007-199406

main11123-64010i2CT..CV30199007-199406

main11123-74030i3SFE..SV32,33,35199007-199406

main11123-88320i3SGE..SV32,33199007-199206

11126BUSH, EXHAUST VALVE GUIDE

main11122-16010i3SFE,4SFE..SV3#199007-199406

sub11122-16020

main11122-16020i1VZFE,4VZFE..VZV3#199007-199406

main11122-64010i2CT..CV30199007-199206

main11122-88320i3SGE..SV32,33199007-199206

main11123-16010i3SFE,4SFE..SV3#199007-199406

main11123-16020i1VZFE,4VZFE..VZV3#199007-199406

main11123-64010i2CT..CV30199007-199206

main11123-88320i3SGE..SV32,33199007-199206

main11126-64010i2CT..CV30199206-199406

sub11126-64030

main11127-64010i2CT..CV30199206-199406

sub11127-64030

11155APIN, RING W/HEAD

main90253-10004i3S#,4SFE..SV3#199007-199406

main90253-11021i2CT..CV30199007-199406

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-06023i2CT..CV30199007-199206

11181PLATE, CYLINDER HEAD, REAR

main11181-62010i1VZFE..VZV30,31199007-199206

main11181-62020i4VZFE..VZV32,33199105-199406

main11181-64010i2CT..CV30199007-199406

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-64020i2CT..CV30199007-199406

sub11182-64021

11183PLUG, SEMICIRCULAR

main11183-62010i1VZFE,4VZFE..VZV3#199007-199406

main11183-64010i2CT..CV30199007-199406

main11183-74010i3SFE,4SFE..SV3#199007-199406

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-62020i1VZFE..VZV30,31199007-199206

main11201-62030i4VZFE..VZV32,33199105-199406

main11201-64090i2CT..CV30199007-199206

main11201-64110i2CT..CV30199206-199406

sub11201-64111

main11201-74020i4SFE..SV30199007-199206

main11201-74040i3SGE..SV32,33199007-199010

sub11201-74041

main11201-74041i3SGE..SV32,33199010-199012

sub11201-74042

main11201-74042i3SGE..SV32,33199012-199206

main11201-74050i3SFE..SV32,33,35199007-199406

sub11201-74051

11213GASKET, CYLINDER HEAD COVER

main11213-62010i1VZFE..VZV30,31199007-199206

main11213-62020i4VZFE..VZV32,33199105-199406

main11213-64040i2CT..CV30199007-199206

main11213-64060i2CT..CV30199206-199406

sub11213-64061

main11213-74020i3SFE,4SFE..SV3#199007-199406

main11213-74040i3SGE..SV32,33199007-199206

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i3S#,4SFE..SV3#199007-199312

sub12180-55010

main12180-46010i4VZFE..VZV32,33199105-199406

main12180-55010i3SFE,4SFE..SV3#199312-199406

main12180-65010i1VZFE..VZV30,31199007-199107

sub12180-65011

main12180-65011i1VZFE..VZV30,31199107-199206

12108AGASKET(FOR OIL FILLER CAP)

main12195-46010i4VZFE..VZV32,33199105-199107

sub12195-46011

main12195-46011i4VZFE..VZV32,33199107-199406

main90430-37004i1VZFE..VZV30,31199007-199206

main90430-37140i3S#,4SFE..SV3#199007-199406

1302

2201

9017906195

main90179-06195

9021006007

main90210-06007

9161160816

main91611-60816

26 parts on this diagram · 6 diagrams in section
