PARTIAL ENGINE ASSEMBLY

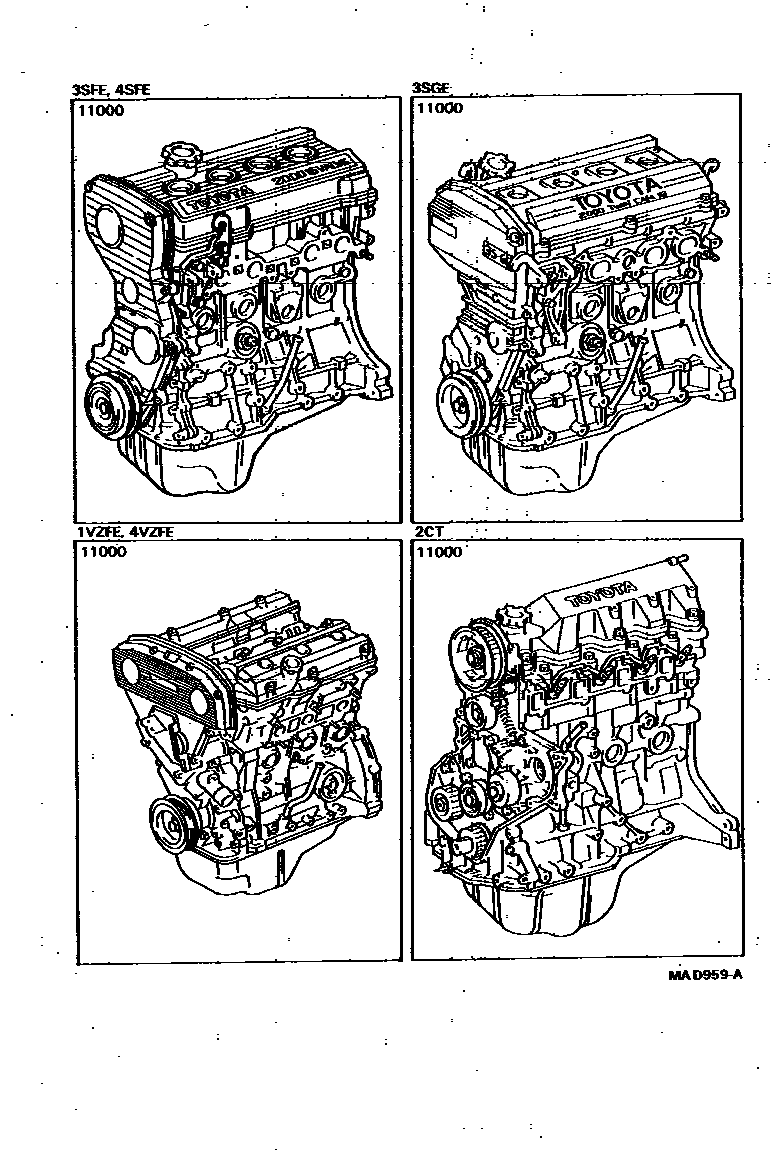

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-62060i199007-199105

main19000-62061i199105-199206

main19000-62100i199105-199308

main19000-62102i199308-199406

main19000-64560i199007-199110

main19000-64561i199110-199206

main19000-64690i199206-199406

main19000-74271i199007-199206

main19000-74300i199007-199008

main19000-74301i199008-199206

main19000-74370i199007-199406

main19000-74380i199007-199406

main19000-74480i199206-199406

1 parts on this diagram · 1 diagram in section
