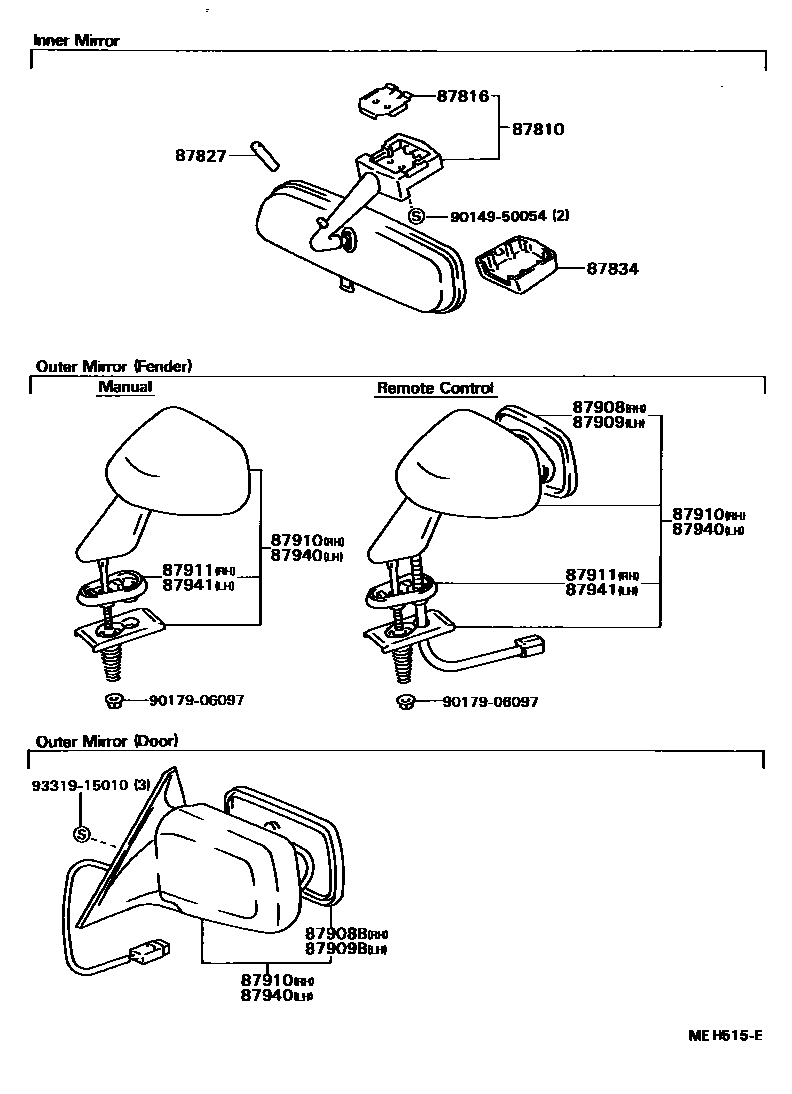

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main87810-14170-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main87810-14170-14iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

main87810-22190-02iCV20,SV2#,VZV20..SED198808-198810

MAROON,TRIM3#

main87810-22190-B0iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

main87810-22190-D0iCV20,SV2#,VZV20..SED198810-199007

MAROON,TRIM3#

main87810-22190-J0iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iCV20,SV2#,VZV20198808-199007

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iCV20,SV2#,VZV20..HT198808-199007

main87828-87003iCV20,SV2#,VZV20..SED198808-199007

main87828-87005iCV20,SV2#,VZV20..SED198808-199007

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-10iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main87834-20080-12iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main87834-20080-33iCV20,SV2#,VZV20..SED198808-199007

GRAY,TRIM1#,8#

main87834-20080-44iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-32300iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

87908BMIRROR SUB-ASSY, RH

main87931-32181iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-198812

main87931-32240iCV20,SV2#..LUM,VE,VL,XT198808-198812

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-32310iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

87909BMIRROR SUB-ASSY, LH

main87961-32180iCV20,SV2#..LUM,VE,VL,XT198808-198812

main87961-32191iSV22..XT198910-199007

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-32240iCV20,SV22,25..SED..(VL,XT)198808-198812

main87910-32241iCV20,SV22,25..SED..(VL,XT)198812-199007

main87910-32270iCV20,SV2#,VZV20..HT198808-199007

main87910-32280iCV20,SV22,25..HT..VL198808-198812

main87910-32281iCV20,SV22,25..HT..VL198812-199007

main87910-32290iSV22..LT,VC198808-199007

main87910-32300iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main87910-32320-02iCV20,SV22..SED..VL198808-198812

RED MICA,RED MICA,3H4

main87910-32320-03iCV20,SV22..SED..VL198808-198812

GRAY METALLIC,GRAY METALLIC,167

main87910-32320-04iCV20,SV22..SED..VL198808-198812

BLACKISH BLUE MICA-M,BLACKISH BLUE MICA M,8E4

main87910-32320-05iCV20,SV22..SED..VL198808-198812

LIGHT BEIGE METALLIC,LIGHT BEIGE METALLIC,4K1

main87910-32320-08iCV20,SV22..SED..VL198808-198812

SUPER WHITE,SUPER WHITE,040

main87910-32321-02iCV20,SV21,22..SED..(LUM,VE)198812-199007

RED MICA,3H4

main87910-32321-03iCV20..SED..VL;SV22,25..SED..(VL,XT)199001-199007

main87910-32321-04iCV20,SV22..SED..VL198812-198910

main87910-32321-05iCV20..SED..VL;SV22,25..SED..(VL,XT)199001-199007

main87910-32321-08iCV20,SV22..SED..VL198812-198910

main87910-32321-13iCV20..SED..VL;SV22,25..SED..(VL,XT)199001-199007

main87910-32331-03iCV20,SV21,22..LUM198901-199007

main87910-32331-05iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

LIGHT BEIGE METALLIC,4K1

main87910-32331-08iCV20,SV21,22..LUM198901-199007

main87910-32331-12iCV20,SV21,22..LUM198901-199007

main87910-32331-13iCV20,SV21,22..LUM198901-199007

main87910-32331-14iCV20,SV21,22..LUM198901-199007

main87910-32331-18iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

WHITE PEARL MICA,29J

main87910-32350-02iCV20,SV21,22..HT..VE198808-198812

main87910-32350-03iCV20,SV21,22..HT..VE198808-198812

main87910-32350-04iCV20,SV21,22..HT..VE198808-198812

BLACKISH BLUE MICA M,8E4

main87910-32350-05iCV20,SV21,22..HT..VE198808-198812

main87910-32350-08iCV20,SV21,22..HT..VE198808-198812

main87910-32350-13iCV20,SV21,22..HT..VE198808-198812

SILVER METALLIC,173

main87910-32350-18iVZV20..HT198808-198812

main87910-32351-02iSV25..HT..VL198910-199007

RED MICA,3H4

main87910-32351-03iCV20,SV21,22..HT..VE198812-199007

GRAY METALLIC,167

main87910-32351-04iCV20,SV21,22..HT..VE198812-199007

BLACKISH BLUE MICA M,8E4

main87910-32351-05iCV20,SV22..HT..VL198812-198905

main87910-32351-08iCV20,SV21,22..HT..VE198812-199007

SUPER WHITE,040

main87910-32351-13iCV20,SV21,22..HT..VE198812-199007

SILVER METALLIC,173

main87910-32351-18iVZV20..HT198812-199007

main87910-32361-02iSV2#..HT..(GT,VR,VX)198808-199007

RED MICA,3H4

main87910-32361-04iSV22,25,VZV20..HT..(PRO,VR)198808-199007

BLACKISH BLUE MICA M,8E4

main87910-32361-05iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

LIGHT BEIGE METALLIC,4K1

main87910-32361-08iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

SUPER WHITE,040

main87910-32361-13iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

GRAY METALLIC,167

main87910-32361-18iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

WHITE PEARL MICA,29J

main87910-32361-23iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

SILVER METALLIC,173

main87910-32361-33iSV21..HT..VX199001-199003

DARK GRAY MICA,DARK GRAY MICA,175

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-32020iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main87911-32030iCV20,SV2#,VZV20..HT198808-199007

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-32180iCV20,SV22,25..SED..(VL,XT)198808-198812

main87940-32181iCV20,SV22,25..SED..(VL,XT)198812-199007

main87940-32280iCV20,SV2#,VZV20..HT198808-199007

main87940-32290iCV20,SV22,25..HT..VL198808-198812

main87940-32291iCV20,SV22,25..HT..VL198812-199007

main87940-32300iSV22..LT,VC198808-199007

main87940-32310iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main87940-32330-02iCV20,SV22..SED..VL198808-198812

RED MICA,RED MICA,3H4

main87940-32330-03iCV20,SV22..SED..VL198808-198812

GRAY METALLIC,GRAY METALLIC,167

main87940-32330-04iCV20,SV22..SED..VL198808-198812

BLACKISH BLUE MICA-M,BLACKISH BLUE MICA M,8E4

main87940-32330-05iCV20,SV22..SED..VL198808-198812

LIGHT BEIGE METALLIC,LIGHT BEIGE METALLIC,4K1

main87940-32330-08iCV20,SV22..SED..VL198808-198812

SUPER WHITE,SUPER WHITE,040

main87940-32330-13iCV20,SV22..SED..VL198808-198812

SILVER METALLIC,SILVER METALLIC,173

main87940-32331-02iCV20,SV21,22..SED..(LUM,VE)198812-199007

RED MICA,3H4

main87940-32331-03iCV20,SV22..SED..VL198812-198910

main87940-32331-04iCV20,SV21,22..SED..(LUM,VE)198812-199007

BLACKISH BLUE MICA-M,8E4

main87940-32331-05iCV20,SV21,22..SED..(LUM,VE)198812-199007

LIGHT BEIGE METALLIC,4K1

main87940-32331-08iCV20,SV22..SED..VL;SV25..SED..(VL,XT)198910-199001

main87940-32331-13iCV20,SV22..SED..VL;SV25..SED..(VL,XT)198910-199001

main87940-32341-03iCV20,SV21,22..LUM198901-199007

main87940-32341-05iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

LIGHT BEIGE METALLIC,4K1

main87940-32341-08iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

SUPER WHITE,040

main87940-32341-12iCV20,SV21,22..LUM198901-199007

main87940-32341-13iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198808-199007

SILVER METALLIC,173

main87940-32341-14iSV2#..SED..(GT,VR,VX,ZE,ZX)198808-199007

BLACKISH BLUE MICA M,8E4

main87940-32341-18iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

WHITE PEARL MICA,29J

main87940-32360-02iCV20,SV21,22..HT..VE198808-198812

main87940-32360-03iCV20,SV21,22..HT..VE198808-198812

main87940-32360-04iCV20,SV21,22..HT..VE198808-198812

BLACKISH BLUE MICA M,8E4

main87940-32360-05iCV20,SV21,22..HT..VE198808-198812

main87940-32360-08iCV20,SV21,22..HT..VE198808-198812

main87940-32360-13iCV20,SV21,22..HT..VE198808-198812

SILVER METALLIC,173

main87940-32360-18iVZV20..HT198808-198812

main87940-32361-02iSV25..HT..VL198910-199007

RED MICA,3H4

main87940-32361-03iCV20,SV21,22..HT..VE198812-199007

GRAY METALLIC,167

main87940-32361-04iCV20,SV21,22..HT..VE198812-199007

BLACKISH BLUE MICA M,8E4

main87940-32361-05iCV20,SV22..HT..VL198812-198905

main87940-32361-08iCV20,SV21,22..HT..VE198812-199007

SUPER WHITE,040

main87940-32361-13iCV20,SV21,22..HT..VE198812-199007

SILVER METALLIC,173

main87940-32361-18iVZV20..HT198812-199007

main87940-32371-02iSV2#..HT..(GT,VR,VX)198808-199007

RED MICA,3H4

main87940-32371-04iSV22,25,VZV20..HT..(PRO,VR)198808-199007

BLACKISH BLUE MICA M,8E4

main87940-32371-05iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

LIGHT BEIGE METALLIC,4K1

main87940-32371-08iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

SUPER WHITE,040

main87940-32371-13iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

GRAY METALLIC,167

main87940-32371-18iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

WHITE PEARL MICA,29J

main87940-32371-23iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

SILVER METALLIC,173

main87940-32371-33iSV21..HT..VX199001-199003

DARK GRAY MICA,DARK GRAY MICA,175

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-32020iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main87941-32030iCV20,SV2#,VZV20..HT198808-199007

9014950054

main90149-50054

9017906097

main90179-06097

9331915010

main93319-15010

15 parts on this diagram · 1 diagram in section
