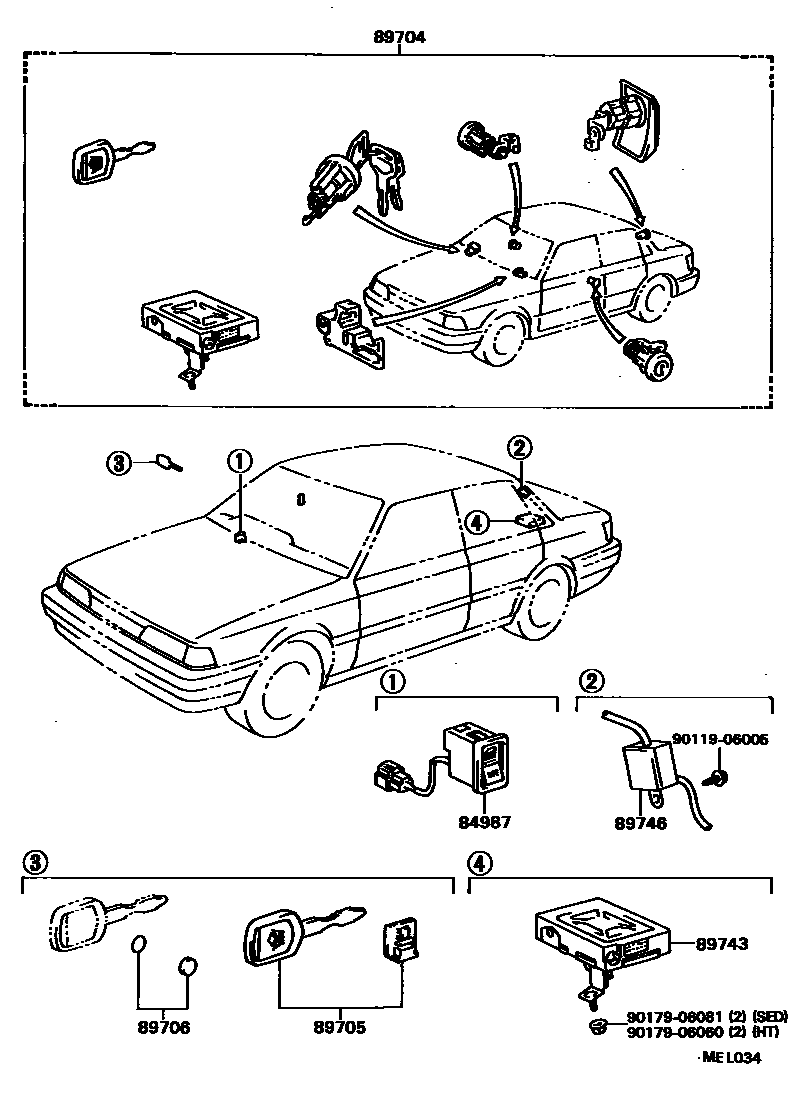

WIRELESS DOOR LOCK

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-32010iSV21,VZV20..GT,PRO,VX,ZX198808-199007

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-32010iVZV20..SED198808-199007

main89704-32020iVZV20..HT198808-199007

main89704-32030iSV21..SED..VX198808-199007

main89704-32040iSV21..HT..(GT,VX)198808-199007

main89704-32050iSV21..SED..(GT,ZX)198808-199007

main89704-32060iSV21..HT..VX198906-199007

main89704-32110iSV21..HT..VX199001-199004

89705TRANSMITTER, DOOR CONTROL

main89705-32010iSV21,VZV20..CAM..(GT,PRO,ZX)198808-199007

main89705-32020iSV21..VIS..(GT,VX)198808-199007

89706BATTERY SET, TRANSMITTER

main89706-30010iSV21,VZV20..GT,PRO,VX,ZX198808-199007

sub89745-48020

sub90301-15006

89743RECEIVER, DOOR CONTROL

main89743-32010iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

main89743-32020iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

89746FILTER, WIRELESS DOOR LOCK

main89746-32010iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

9011906005

main90119-06005

9017906060

main90179-06060

9017906081

main90179-06081

9 parts on this diagram · 1 diagram in section
