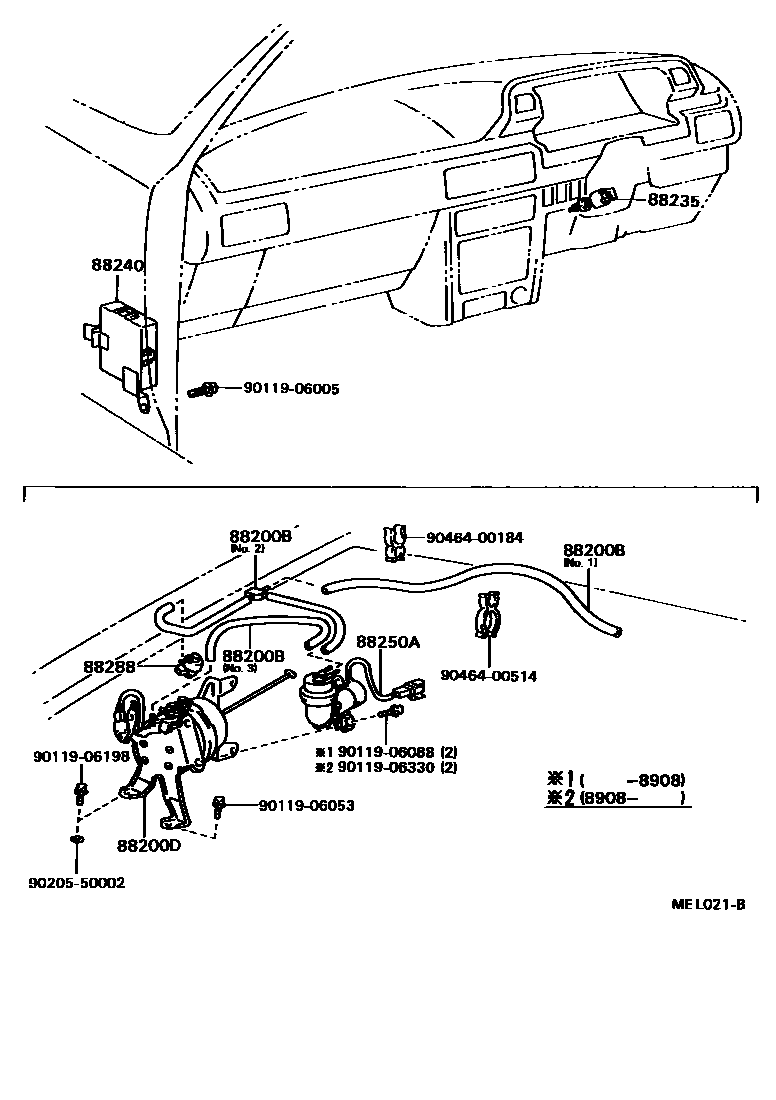

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1W(ESC) 0004 1

88200BHOSE, CRUISE CONTROL VACUUM

main88283-32030iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

main88283-32050iSV21,25..GT,VR,VX,ZE,ZX198808-199007

main88283-32060iSV21,25..GT,VR,VX,ZE,ZX198808-199007

main90999-92002iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

main90999-92003iSV21..GT198808-199007

main90999-92004iSV21..GT198808-199007

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-32060iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

main88200-32081iSV21,25..GT,VR,VX,ZE,ZX198808-199007

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-20010iSV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198808-199007

88240COMPUTER ASSY, CRUISE CONTROL

main88240-32101iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

88250APUMP ASSY, CRUISE CONTROL

main88251-32060iSV21,25..GT,VR,VX,ZE,ZX198808-199007

main88251-32080iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

88288SWITCH, VACUUM SPEED CONTROL

main88288-22010iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198901-199007

main88288-40020iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-198901

9011906005

main90119-06005

9011906053

main90119-06053

9011906088

main90119-06088

9011906198

main90119-06198

9011906330

main90119-06330

9020550002

main90205-50002

9046400184

main90464-00184

9046400514

main90464-00514

14 parts on this diagram · 4 diagrams in section
