METER

0001 1ANALOG 0002 1ANALOG(W/TACHOMETER) 0003 1DIGITAL 0004 1SOCKET & BULB 0005 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iSV22..SED..(VL,XT)198808-199007

main83109-20030iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

main83109-24020iCV20,SV2#,VZV20198808-199007

main90981-11018iSV21..GT198808-199007

main99132-12034iSV22..SED..(VL,XT)198808-199007

83100GGLASS, COMBINATION METER

main83133-32350iSV2#..GT,VR,VX,ZE,ZX198808-199007

main83133-32350iSV2#..GT,VR,VX,ZE,ZX198808-199007

main83138-32010iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

main83138-32030iSV22..SED..(LT,VC,VL,XT)198808-199007

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

main83101-14030iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

main83101-14030iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

NO.1

main83101-14040iCV20198808-199007

main83101-14040iCV20198808-199007

main83101-14040iCV20198808-199007

main83101-32010iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

83110SPEEDOMETER ASSY

main83110-32381iSV22..SED..(LT,VC,VL,XT)198808-199007

main83110-32391iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

83132CASE, COMBINATION METER

main83132-32720iSV22..SED..(LT,VC,VL,XT)198808-199007

main83132-32760iSV22..HT..VL;SV21,25,VZV20;SV22..LUM,VE,VR,ZE198808-199007

main83132-32780iCV20198808-199007

main83132-32890iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

83133PLATE, COMBINATION METER, NO.1

main83133-32330iVZV20198808-199007

main83133-32530iSV22..SED..(LT,VC,VL,XT)198808-199007

main83133-32730iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

83133APLATE, COMBINATION METER, NO.2

main83133-32430iVZV20198808-199007

main83133-32590iCV20,SV2#,VZV20198808-199007

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-32890iSV22..SED..(LT,VC,VL,XT)198808-199007

main83243-3H030iSV22..HT..VL;SV22..LUM,VE,VR,ZE;SV21,25..LUM,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main83243-3H050iSV21..GT;CV20,VZV20198808-199007

83247PLATE, METER CIRCUIT

main83149-32030iSV25..4FC..(VR,ZE)198808-199007

main83247-32280iSV25..5F..(VR,ZE);SV21,22,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

main83247-3H010iSV25..5F;SV22..HT..VL;SV21,22,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX198808-199007

main83247-3H030iSV25..4FC198808-199007

main83247-3H050iSV21,VZV20..GT,PRO198808-199007

main83247-3H070iCV20198808-199007

main83247-3H170iSV22..SED..(LT,VC,VL,XT)198808-199007

83248CHIME, SPEED WARNING

main86640-32020iCV20,SV2#,VZV20198808-199007

main86640-32030iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9354014020

main93540-14020

9356755016

main93567-55016

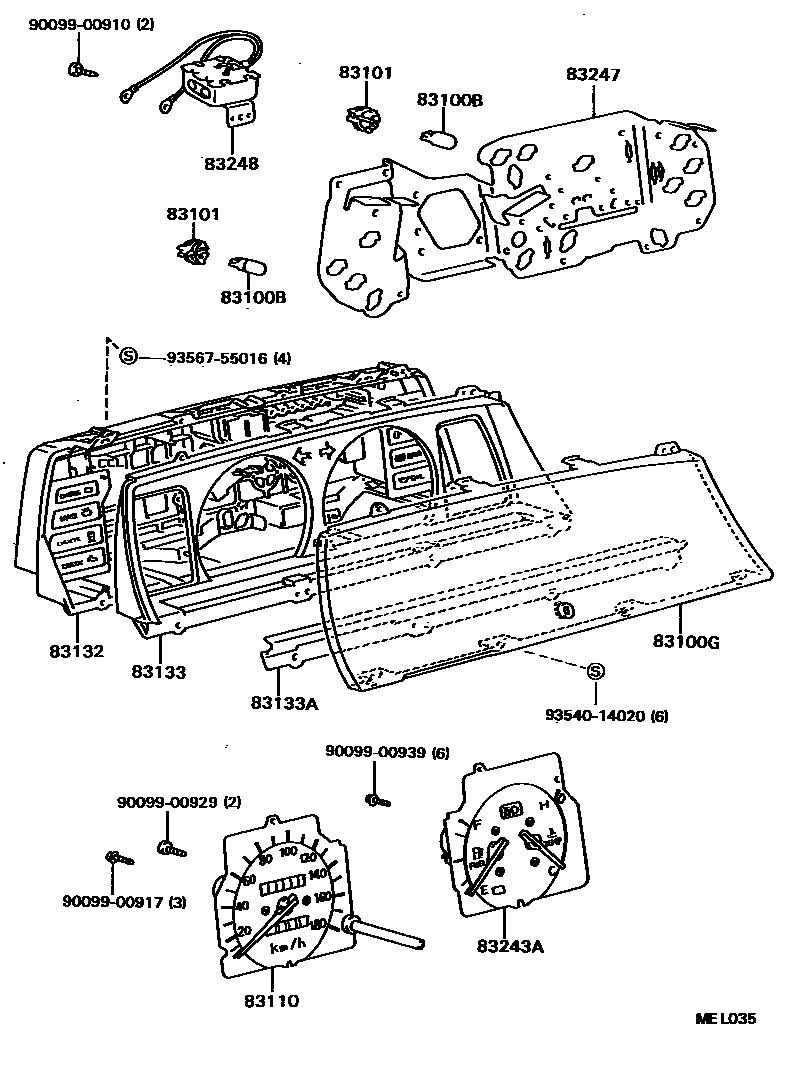

16 parts on this diagram · 5 diagrams in section
