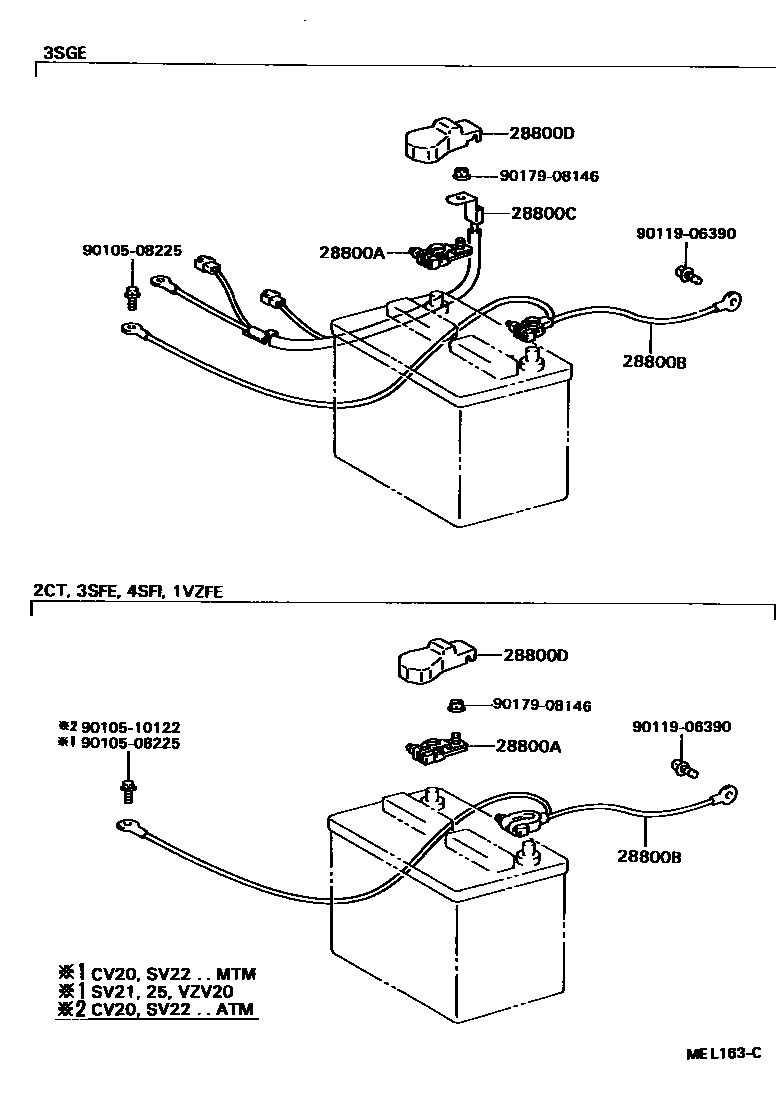

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i3SGE..SV21..5F;3SFE,4SFI..SV2#;1VZFE..VZV20..SED..5F198808-199007

sub90982-05057

main90982-05030i2CT..CV20;3SGE,1VZFE..SV21,VZV20..4FC198808-199007

main90982-05034i3SFE,4SFI..SV2#;1VZFE..VZV20..SED..5F198808-199007

main90982-05035i2CT..CV20;1VZFE..VZV20..4FC198808-199007

main90982-05036i3SGE..SV21..5F198808-199007

main90982-05037i3SGE..SV21..4FC198808-199007

main90982-05040i1VZFE..VZV20..HT..5F198808-199007

28800BCABLE, BATTERY TO GROUND

main82123-32041i3SGE..SV21..5F;3SFE,4SFI..SV2#198808-199007

main82123-32051i3SGE..SV21..4FC198808-199007

main82123-32061i2CT..CV20198808-199007

main82123-32090i1VZFE..VZV20..5F198808-199007

main82123-32100i1VZFE..VZV20..4FC198808-199007

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-32220i3SGE..SV21198808-199007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16010i2CT,3SFE,4SFI,1VZFE..CV20,SV2#,VZV20198808-198904

main82821-32040i3SGE..SV21198808-199007

9010508225

main90105-08225

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
