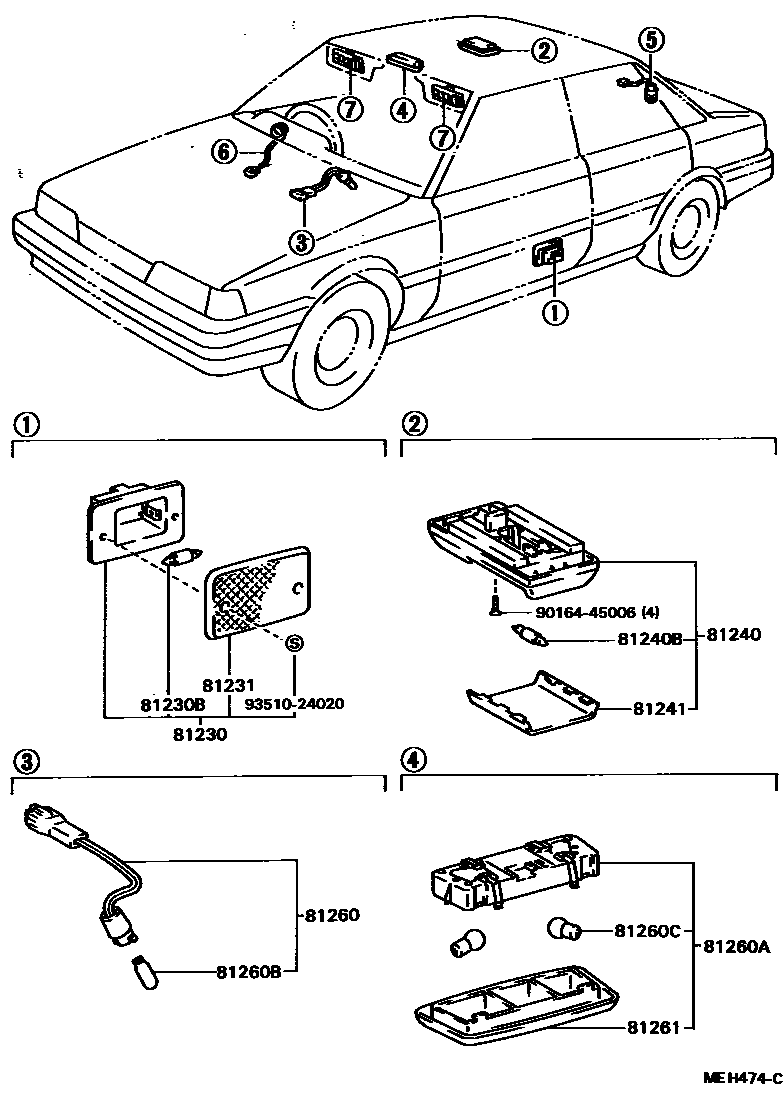

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-24010×2iCV20,SV21,22..LUM198906-199007

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iCV20,SV21,22..LUM198906-199007

81231LENS, COURTESY LAMP

main81231-30080×2iCV20,SV21,22..LUM198901-198906

81240LAMP ASSY, ROOM, NO.1

main81240-22081-12iCV20,SV2#..LT,LUM,VC,VE,VL,XT198808-199007

MAROON,TRIM3#

main81240-22081-23iCV20,SV2#..LT,LUM,VC,VE,VL,XT198808-199007

GRAY,TRIM1#,8#

main81240-24020-02iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-198910

MAROON,TRIM3#

main81240-24020-23iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-198910

LIGHT GRAY,TRIM1#,8#

main81240-32020-02iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198910-199007

MAROON,TRIM3#

main81240-32020-03iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198910-199007

LIGHT GRAY,TRIM1#

main81240-32020-04iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198910-199007

LIGHT GRAY,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iCV20,SV2#,VZV20198808-199007

81241LENS, ROOM LAMP, NO.1

main81241-20060iCV20,SV2#..LT,LUM,VC,VE,VL,XT198808-199007

main81241-24010iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-198906

main81241-24020iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198906-199007

81260LAMP ASSY, GLOVE BOX

main81260-32060iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

81260ALAMP ASSY, MAP

main81260-32040-02iSV25..XT198910-199007

MAROON,TRIM3#

main81260-32040-03iCV20,SV22..SED..VL198910-199007

LIGHT GRAY,TRIM1#,8#

main81260-32040-04iCV20,SV22..HT..VL198905-199007

DARK BLUE,TRIM8#

main81260-32040-13iCV20,SV22..HT..VL198905-199007

GRAY,TRIM1#

main81260-32050-02iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX198808-199007

main81260-32050-03iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

main81260-32050-14iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

main81260-32050-23iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

81260BBULB(FOR GLOVE BOX)

main90981-11018iSV2#,VZV20..GT,PRO,VR,VX,ZE,ZX198808-199007

81260CBULB(FOR MAP LAMP)

main90981-12005×2iSV25..VL198910-199007

main90981-12014iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX198808-199007

81261LENS AND COVER, MAP LAMP

main81261-32040-02iCV20..VL;SV22..HT..VL198905-198910

MAROON,TRIM3#

main81261-32040-03iCV20,SV22..SED..VL198910-199007

LIGHT GRAY,TRIM1#,8#

main81261-32040-04iCV20,SV22..HT..VL198906-199007

DARK BLUE,TRIM8#

main81261-32050-02iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX198808-199007

main81261-32050-03iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX198808-199007

main81261-32050-14iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

9016445006

main90164-45006

9351024020

main93510-24020

13 parts on this diagram · 2 diagrams in section
