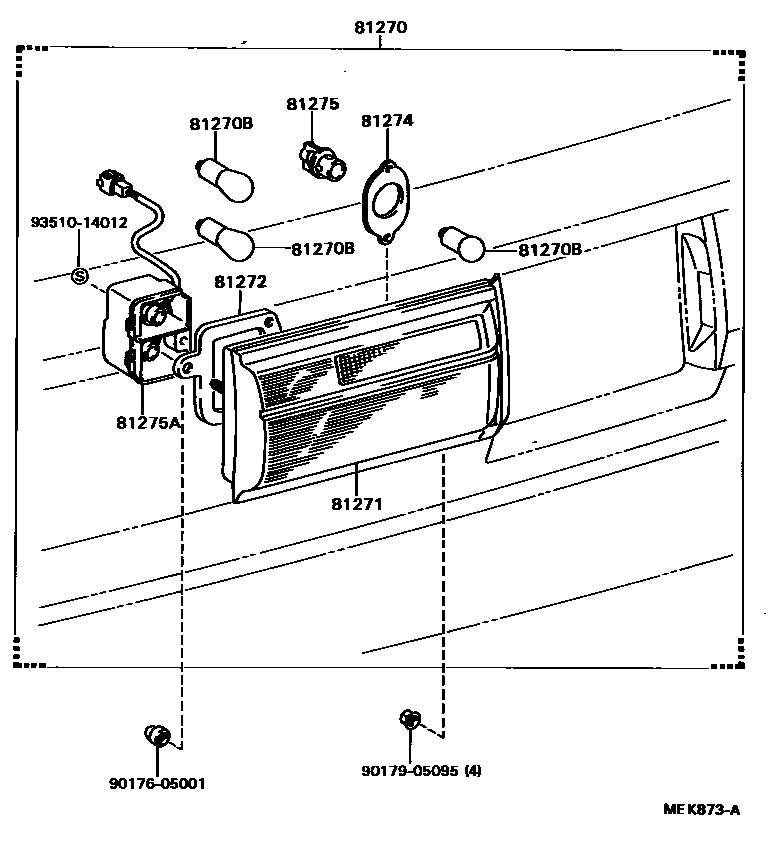

REAR LICENSE PLATE LAMP

0001 1 0002 1 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-32061iCV20,SV2#,VZV20..CAM..SED198808-199007

main81270-32111iCV20,SV2#..VIS..SED198808-199007

main81270-32150×2iVZV20..HT198808-199007

main81270-32170×2iCV20,SV2#..HT198808-199007

main81690-32031iCV20,SV2#,VZV20..CAM..SED198808-199007

main81690-32081iCV20,SV2#..VIS..SED198808-199007

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iCV20,SV2#,VZV20..SED198808-199007

sub90981-12026

main90981-12019×2iCV20,SV2#,VZV20..CAM..SED198808-199007

main99132-11100×2iCV20,SV2#,VZV20..HT198808-199007

main99132-11210×2iCV20,SV2#,VZV20..SED198808-199007

main99132-21210×2iCV20,SV2#..VIS..SED198808-199007

81271LENS, LICENSE PLATE LAMP

main81271-16151×2iVZV20..HT198808-199007

main81271-20210×2iCV20,SV2#..HT198808-199007

main81271-32061iCV20,SV2#,VZV20..CAM..SED198808-199007

main81271-32111iCV20,SV2#..VIS..SED198808-199007

main81691-32031iCV20,SV2#,VZV20..CAM..SED198808-199007

main81691-32081iCV20,SV2#..VIS..SED198808-199007

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iCV20,SV2#,VZV20..HT198808-199007

main81272-32060×2iCV20,SV2#,VZV20..CAM..SED198808-199007

main81272-32110×2iCV20,SV2#..VIS..SED198808-199007

81274GASKET, LICENSE PLATE LAMP BODY

main81274-32060×2iCV20,SV2#,VZV20..CAM..SED198808-199007

main81274-32110×2iCV20,SV2#..VIS..SED198808-199007

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12260×2iCV20,SV2#,VZV20..CAM..SED198808-199007

main81275-32110×2iCV20,SV2#..VIS..SED198808-199007

81275ACORD, LICENSE PLATE LAMP

main81275-32061iCV20,SV2#,VZV20..CAM..SED198808-199007

main81278-32111iCV20,SV2#..VIS..SED198808-199007

main81695-32031iCV20,SV2#,VZV20..CAM..SED198808-199007

main81698-32081iCV20,SV2#..VIS..SED198808-199007

9017605001

main90176-05001

9017905095

main90179-05095

9351014012

main93510-14012

10 parts on this diagram · 3 diagrams in section
