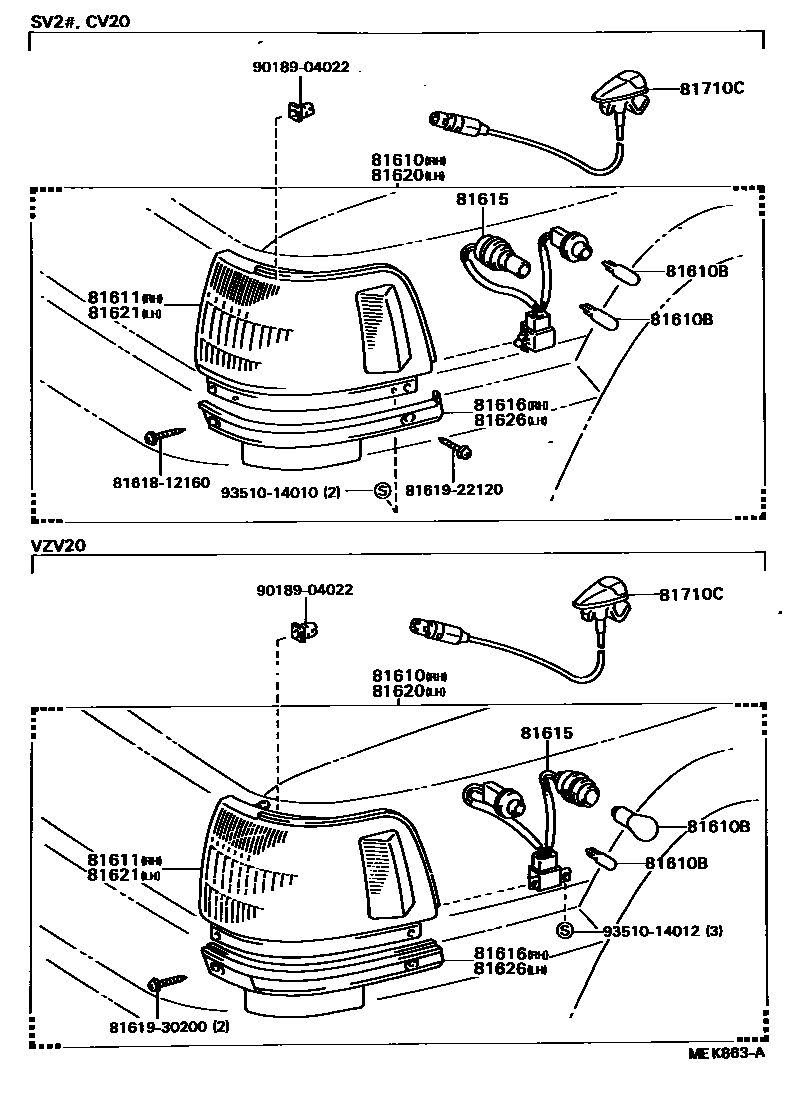

FRONT CLEARANCE LAMP

0001 1 0002 1

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-32062iSV22..XT198808-199001

main81610-32092iCV20,SV2#..HT..(VE,VL)198808-199007

main81610-32100iSV2#..HT..(GT,VR,VX)198808-199007

main81610-32112iSV22..SED..(LT,VC,VL,XT)198808-199007

main81610-32120iVZV20..SED198808-199007

main81610-32130iVZV20..HT198808-199007

main81610-32140iSV2#..SED..(GT,VR,VX,ZE,ZX)198808-199007

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11038×4iCV20,SV2#..HT..(VE,VL); CV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

main90981-13036×2iCV20,SV21,22..LUM198906-199007

main99132-12050×2iCV20,SV21,22..LUM198906-199007

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-32062iSV22..SED..VL198905-199007

main81611-32092iCV20,SV2#..HT198808-199007

main81611-32112iSV22..SED..(LT,VC,VL,XT)198808-199007

main81611-32120iVZV20..SED198808-199007

main81611-32130iVZV20..HT198808-199007

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-32062×2iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

main81615-32092×2iCV20,SV2#..HT..(VE,VL)198808-199007

main81615-32120×2iVZV20..SED198808-199007

main81615-32130×2iSV2#,VZV20..HT..(GT,PRO,VR,VX)198808-199007

main81615-32140×2iSV2#..SED..(GT,VR,VX,ZE,ZX)198808-199007

81616RIM, PARKING AND CLEARANCE LAMP, RH

main81616-32060iCV20,SV2#..SED198808-199007

main81616-32120iVZV20..SED198808-199007

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-32062iSV22..XT199001-199007

main81620-32092iCV20,SV2#..HT..(VE,VL)198808-199007

main81620-32100iSV2#..HT..(GT,VR,VX)198808-199007

main81620-32112iSV22..SED..(LT,VC,VL,XT)198808-199007

main81620-32120iVZV20..SED198808-199007

main81620-32130iVZV20..HT198808-199007

main81620-32140iSV2#..SED..(GT,VR,VX,ZE,ZX)198808-199007

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-32062iSV22..SED..VL198808-198905

main81621-32092iCV20,SV2#..HT198808-199007

main81621-32112iSV22..SED..(LT,VC,VL,XT)198808-199007

main81621-32120iVZV20..SED198808-199007

main81621-32130iVZV20..HT198808-199007

81626RIM, PARKING AND CLEARANCE LAMP, LH

main81626-32060iCV20,SV2#..SED198808-199007

main81626-32120iVZV20..SED198808-199007

81710CMARKER ASSY, FENDER

main81710-32011×2iSV22..XT199001-199007

main81710-32020iVZV20..SED198808-199007

main81720-32010iVZV20..SED198808-199007

8161812160BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-12160

8161922120

main81619-22120

8161930200

main81619-30200

9018904022

main90189-04022

9351014010

main93510-14010

9351014012

main93510-14012

15 parts on this diagram · 2 diagrams in section
