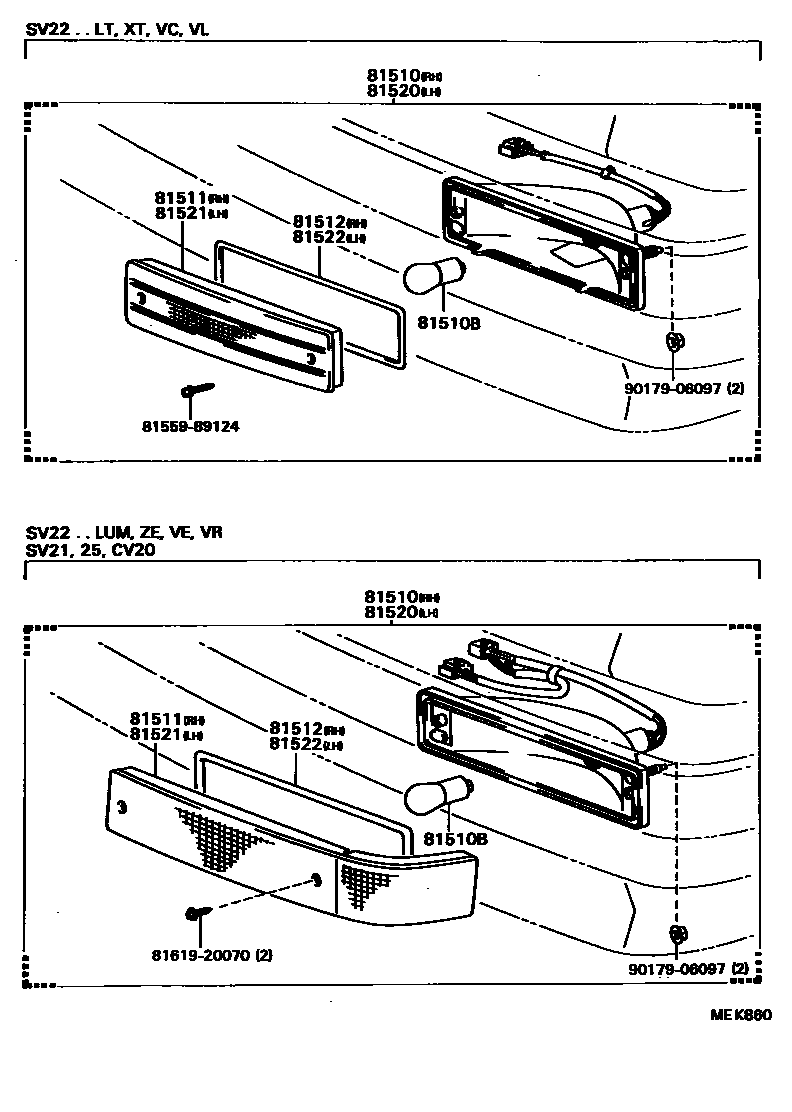

FRONT TURN SIGNAL LAMP

0001 1 0002 1 0003 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-39606iSV22..SED..(LT,VC,VL,XT)198808-199007

main81510-39635iVZV20..SED198808-199007

main81510-39685iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main81510-39705iCV20,SV2#..HT198808-199007

main81510-39715iVZV20..HT198808-199007

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

main99132-11210iSV22..HT..VL;SV22..LUM,VE,VR,ZE;CV20,SV21,25,VZV20198808-199007

main99132-11230iSV22..SED..(LT,VC,VL,XT)198808-199007

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iVZV20..SED198808-199007

main81511-32050iSV22..SED..(LT,VC,VL,XT)198808-199007

main81511-32081iCV20,SV2#..HT198808-199007

main81511-32110iVZV20..HT198808-199007

main81511-32130iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iVZV20..SED198808-199007

main81512-32050iSV22..SED..(LT,VC,VL,XT)198808-199007

main81512-32081iCV20,SV2#..HT198808-199007

main81512-32110iVZV20..HT198808-199007

main81512-32130iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-39606iSV22..SED..(LT,VC,VL,XT)198808-199007

main81520-39635iVZV20..SED198808-199007

main81520-39685iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

main81520-39705iCV20,SV2#..HT198808-199007

main81520-39715iVZV20..HT198808-199007

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iVZV20..SED198808-199007

main81521-32050iSV22..SED..(LT,VC,VL,XT)198808-199007

main81521-32081iCV20,SV2#..HT198808-199007

main81521-32110iVZV20..HT198808-199007

main81521-32130iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iVZV20..SED198808-199007

main81512-32050iSV22..SED..(LT,VC,VL,XT)198808-199007

main81512-32081iCV20,SV2#..HT198808-199007

main81512-32110iVZV20..HT198808-199007

main81512-32130iCV20,SV21,25..SED;SV22..SED..(LUM,VE,VR,ZE)198808-199007

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124

8161920070

main81619-20070

9017906097

main90179-06097

10 parts on this diagram · 3 diagrams in section
