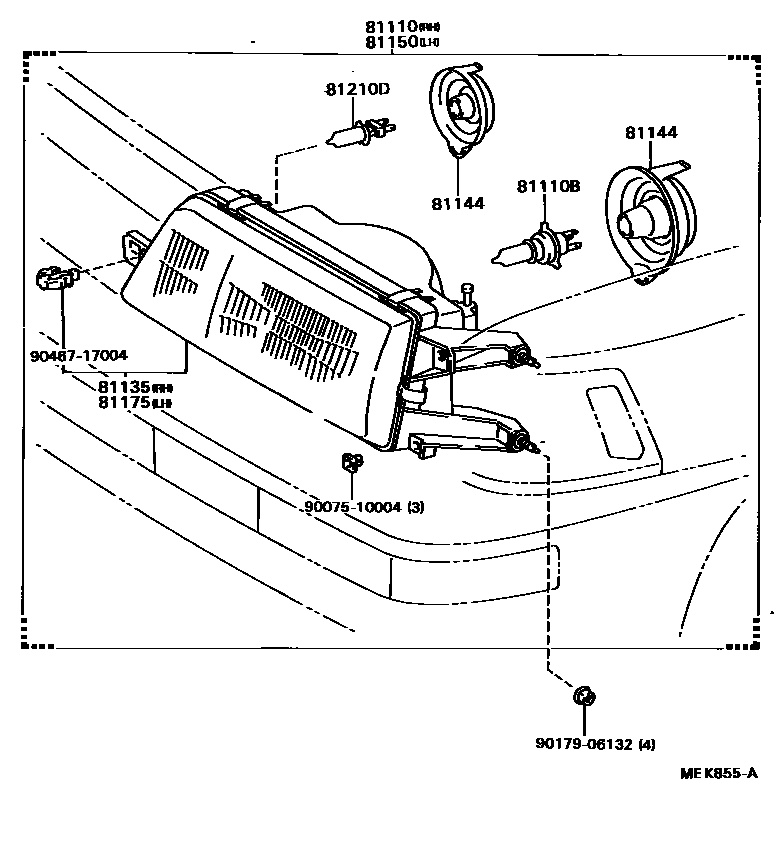

HEADLAMP

0001 1 0002 1 0003 1 0004 1

81110HEADLAMP ASSY, RH

main81110-32151iCV20,SV2#..SED198808-199007

main81110-32211iCV20,SV2#..HT198808-199007

main81110-32220iVZV20..SED198808-199007

main81110-32230iVZV20..HT198808-199007

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iCV20,SV2#,VZV20198808-199007

sub90981-13058

81135UNIT ASSY, HEADLAMP, RH

main81130-32151iCV20,SV2#..SED198808-199007

main81130-32212iCV20,SV2#..HT198808-199007

main81130-32220iVZV20..SED198808-199007

main81130-32230iVZV20..HT198808-199007

81144COVER, HEADLAMP, NO.1

main81139-16340×2iCV20,SV2#,VZV20..HT198808-199007

HEADLAMP

sub81139-23010

main81139-20730×2iCV20,SV2#,VZV20..SED198808-199007

HEADLAMP

main81139-32210×2iCV20,SV2#,VZV20..HT198808-199007

FOG LAMP

main90075-99002×2iCV20,SV2#,VZV20..SED198808-199007

FOG LAMP

81150HEADLAMP ASSY, LH

main81150-32151iCV20,SV2#..SED198808-199007

main81150-32211iCV20,SV2#..HT198808-199007

main81150-32220iVZV20..SED198808-199007

main81150-32230iVZV20..HT198808-199007

81175UNIT ASSY, HEADLAMP, LH

main81170-32151iCV20,SV2#..SED198808-199007

main81170-32212iCV20,SV2#..HT198808-199007

main81170-32220iVZV20..SED198808-199007

main81170-32230iVZV20..HT198808-199007

81210DBULB, FOG LAMP

main90981-13031×2iCV20,SV2#,VZV20..SED198808-199007

main90981-13039×2iCV20,SV2#,VZV20..HT198808-199007

9007510004

main90075-10004

9017906132

main90179-06132

9046717004

main90467-17004

10 parts on this diagram · 4 diagrams in section
