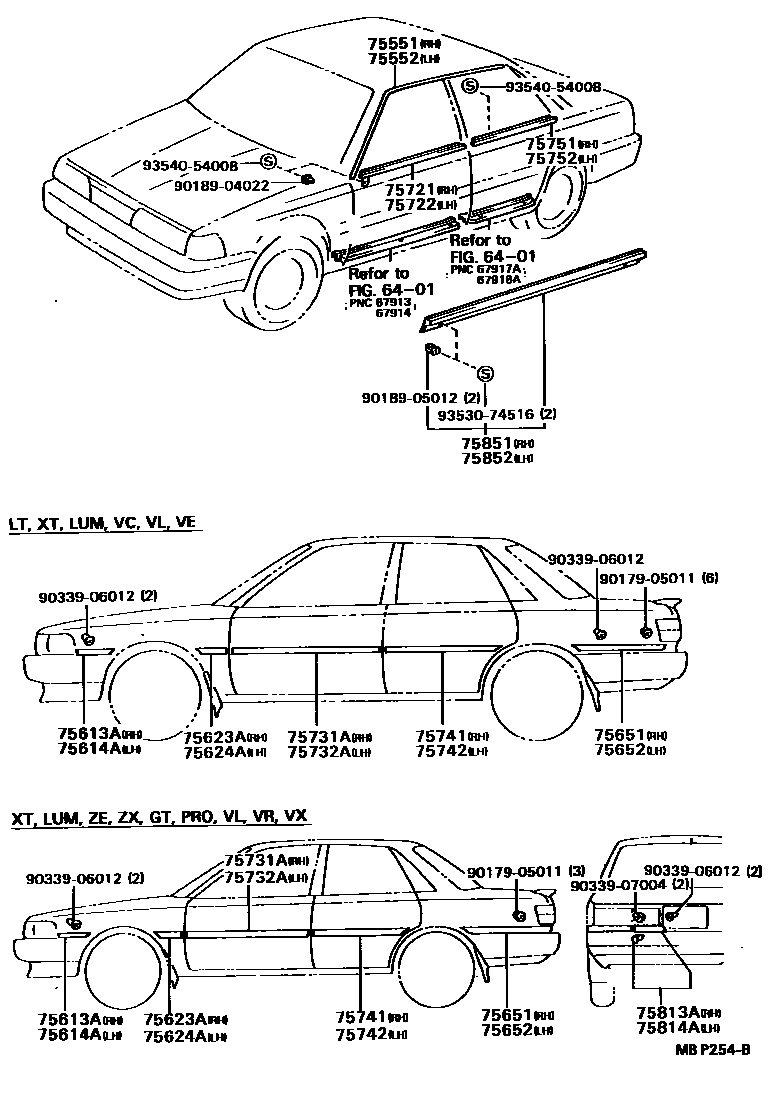

SIDE MOULDING

0001 1 0002 1

6401

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-32030iCV20,SV2#,VZV20..SED198808-199007

main75551-32050iCV20,SV2#,VZV20..HT198808-198906

main75551-32060iCV20,SV2#,VZV20..SED198901-199007

main75551-32070iCV20,SV2#..HT198901-198908

main75551-32080iCV20,SV2#,VZV20..HT198906-199007

main75551-32090iCV20,SV2#,VZV20..HT198908-199007

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-32030iCV20,SV2#,VZV20..SED198808-199007

main75552-32050iCV20,SV2#,VZV20..HT198808-198906

main75552-32060iCV20,SV2#,VZV20..SED198901-199007

main75552-32070iCV20,SV2#..HT198901-198908

main75552-32080iCV20,SV2#,VZV20..HT198906-199007

main75552-32090iCV20,SV2#,VZV20..HT198908-199007

75613AMOULDING, FRONT FENDER, FRONT RH

main75613-32010iCV20,SV2#,VZV20..SED198808-199007

main75613-32030-13iCV20,SV21,22..LUM198901-198906

main75613-32030-15iSV25..SED..VL198910-199007

75614AMOULDING, FRONT FENDER, FRONT LH

main75614-32010iCV20,SV2#,VZV20..SED198808-199007

main75614-32030-13iSV25..SED..VL198910-199007

main75614-32030-15iVZV20..SED198901-199007

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-32040iCV20,SV2#,VZV20..SED198808-199007

sub75623-32080

main75623-32050-13iSV21..SED..(GT,VX,ZX)198808-198811

main75623-32050-15iSV25..SED..VL198910-199007

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-32040iCV20,SV2#,VZV20..SED198808-199007

sub75624-32080

main75624-32050-13iSV25..SED..VL198910-199007

main75624-32050-15iSV25..SED..VL198910-199007

75651MOULDING, QUARTER, OUTSIDE RH

main75651-32011iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

main75651-32050-13iSV25..SED..VL198910-199007

main75651-32050-15iVZV20..SED198901-199007

main75651-32060iCV20,SV21,22..LUM198906-199007

75652MOULDING, QUARTER, OUTSIDE LH

main75652-32011iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

main75652-32050-13iSV21..SED..(GT,VX,ZX)198811-199007

main75652-32050-15iSV25..SED..VL198910-199007

main75652-32060iCV20,SV21,22..LUM198906-199007

75721MOULDING, FRONT DOOR BELT, RH

main75710-32030iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main75710-32040iSV22..LT,VC198808-199007

main75710-32050iCV20,SV2#,VZV20..HT198808-198908

main75710-32060iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198901-199007

main75710-32070iSV22..LT,VC198901-199007

main75710-32080iCV20,SV2#,VZV20..HT198901-198908

main75710-32100iCV20,SV2#,VZV20..HT198908-199007

main75710-32110iCV20,SV2#,VZV20..HT198908-199007

75722MOULDING, FRONT DOOR BELT, LH

main75720-32030iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198808-199007

main75720-32040iSV22..LT,VC198808-199007

main75720-32050iCV20,SV2#,VZV20..HT198808-198908

main75720-32060iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX)198901-199007

main75720-32070iSV22..LT,VC198901-199007

main75720-32080iCV20,SV2#,VZV20..HT198901-198908

main75720-32100iCV20,SV2#,VZV20..HT198908-199007

main75720-32110iCV20,SV2#,VZV20..HT198908-199007

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-32120iCV20,SV2#,VZV20..SED198808-199007

sub75731-32270

main75731-32130-13iCV20,SV21,22..LUM198906-199007

main75731-32130-15iSV21..SED..(GT,VX,ZX)198811-198901

main75731-32190iCV20,SV2#..HT198808-199007

main75731-32200iVZV20..HT198808-199007

main75731-32240-03iCV20,SV2#..HT..(VL,VX)199001-199007

main75731-32240-05iSV21..HT..GT198905-199007

main75731-32240-15iCV20,SV22..VL198901-198910

main75731-32250-03iVZV20..HT198808-199007

main75731-32250-05iVZV20..HT198808-199007

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-32120iCV20,SV2#,VZV20..SED198808-199007

sub75732-32270

main75732-32130-13iSV25..SED..VL198910-199007

main75732-32130-15iVZV20..SED198808-198901

main75732-32190iCV20,SV2#..HT198808-199007

main75732-32200iVZV20..HT198808-199007

main75732-32240-03iCV20,SV2#..HT..(VL,VX)199001-199007

main75732-32240-05iSV21..HT..GT198808-198905

main75732-32240-15iCV20,SV22..VL198901-198910

main75732-32250-03iVZV20..HT198808-199007

main75732-32250-05iVZV20..HT198808-199007

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-32150iCV20,SV2#,VZV20..SED198808-199007

sub75741-32350

main75741-32160-13iSV21..SED..(GT,VX,ZX)198808-198811

main75741-32160-15iCV20,SV22..SED..VL198905-199007

main75741-32240iCV20,SV2#..HT..(VE,VL,VR,VX)198808-199007

main75741-32250iVZV20..HT198808-199007

main75741-32260iSV21..HT..GT198808-199007

main75741-32310-03iCV20,SV2#..HT..(VL,VX)199001-199007

main75741-32310-05iSV21..HT..VX198905-199007

main75741-32310-15iCV20,SV22..VL198901-198910

main75741-32320-05iSV21..HT..GT198808-199007

main75741-32330-03iVZV20..HT198808-199007

main75741-32330-05iVZV20..HT198808-199007

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-32150iCV20,SV2#,VZV20..SED198808-199007

sub75742-32350

main75742-32160-13iSV25..SED..VL198910-199007

main75742-32160-15iCV20,SV21,22..LUM198906-199007

main75742-32240iCV20,SV2#..HT..(VE,VL,VR,VX)198808-199007

main75742-32250iVZV20..HT198808-199007

main75742-32260iSV21..HT..GT198808-199007

main75742-32310-03iCV20,SV2#..HT..(VL,VX)199001-199007

main75742-32310-05iSV21..HT..VX198905-199007

main75742-32310-15iCV20,SV22..VL198901-198910

main75742-32320-05iSV21..HT..GT198808-199007

main75742-32330-03iVZV20..HT198808-199007

main75742-32330-05iVZV20..HT198808-199007

75751MOULDING, REAR DOOR BELT, RH

main75730-32020iCV20,SV2#,VZV20..SED198808-199007

main75730-32030iCV20,SV2#,VZV20..HT198808-198908

main75730-32040iCV20,SV2#,VZV20..SED198901-199007

main75730-32050iCV20,SV2#,VZV20..HT198901-198908

main75730-32070iCV20,SV2#,VZV20..HT198908-199007

main75730-32080iCV20,SV2#,VZV20..HT198908-199007

75752MOULDING, REAR DOOR BELT, LH

main75740-32020iCV20,SV2#,VZV20..SED198808-199007

main75740-32030iCV20,SV2#,VZV20..HT198808-198908

main75740-32040iCV20,SV2#,VZV20..SED198901-199007

main75740-32050iCV20,SV2#,VZV20..HT198901-198908

main75740-32070iCV20,SV2#,VZV20..HT198908-199007

main75740-32080iCV20,SV2#,VZV20..HT198908-199007

75813AMOULDING, LUGGAGE COMPARTMENT DOOR, RH

main75813-32030iCV20,SV21,22..LUM198901-198906

main75813-32040-13iSV25..SED..VL198910-199007

main75813-32040-15iCV20,SV21,22..LUM198901-198906

75814AMOULDING, LUGGAGE COMPARTMENT DOOR, LH

main75814-32010iSV25..XT198910-199007

main75814-32020-13iSV25..SED..VL198910-199007

main75814-32020-15iSV25..SED..VL198910-199007

75851MOULDING, ROCKER PANEL, RH

main75850-39065iCV20,SV2#,VZV20198808-199005

main75850-39066iCV20,SV2#,VZV20199005-199007

main75850-39085iCV20,SV2#,VZV20198901-199005

main75850-39086iCV20,SV2#,VZV20199005-199007

75852MOULDING, ROCKER PANEL, LH

main75850-39065iCV20,SV2#,VZV20198808-199005

main75850-39066iCV20,SV2#,VZV20199005-199007

main75850-39085iCV20,SV2#,VZV20198901-199005

main75850-39086iCV20,SV2#,VZV20199005-199007

9017905011

main90179-05011

9018904022

main90189-04022

9018905012

main90189-05012

9033906012

main90339-06012

9033907004

main90339-07004

9353074516

main93530-74516

9354054008

main93540-54008

28 parts on this diagram · 2 diagrams in section
