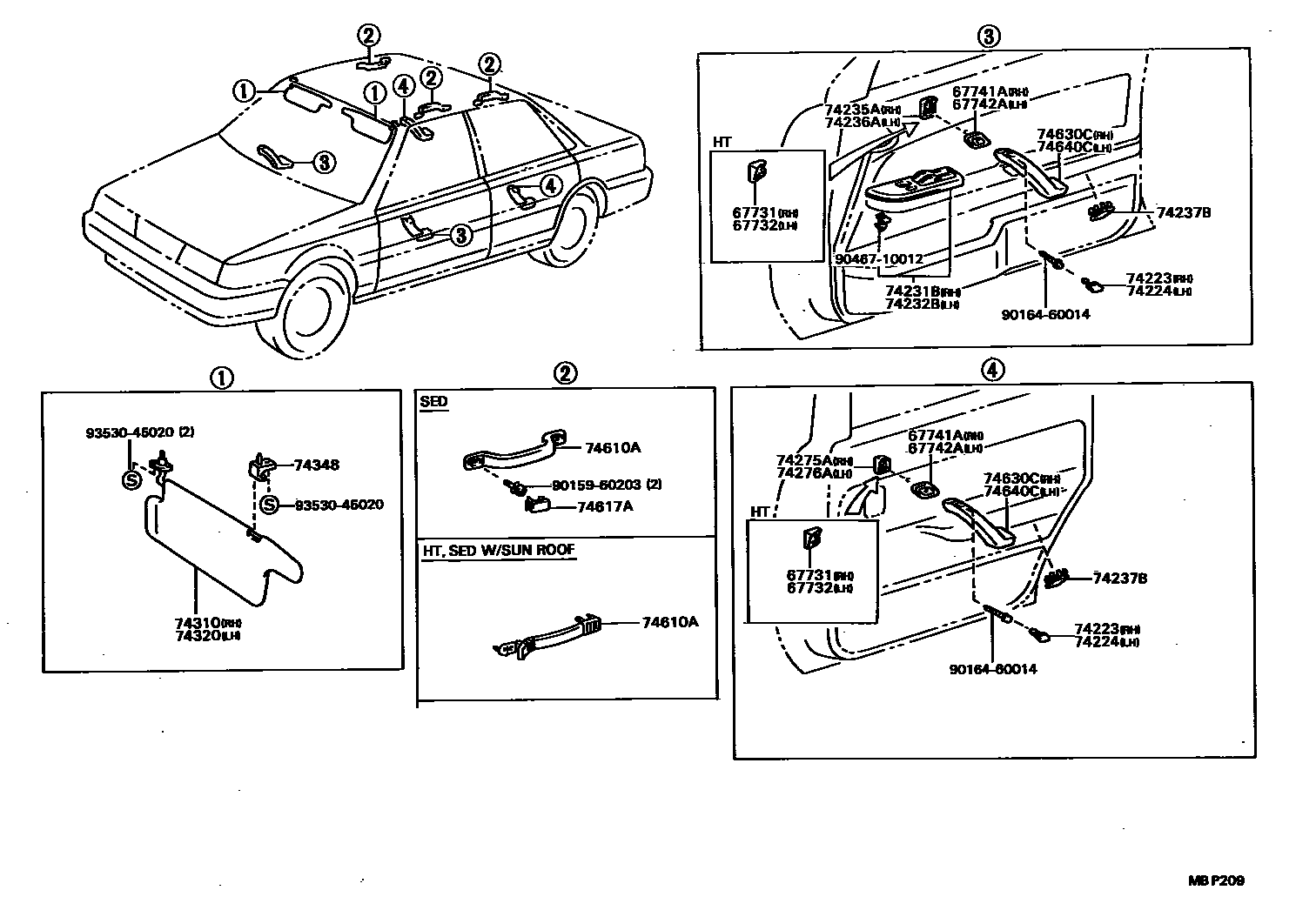

ARMREST & VISOR

67731SPACER, SIDE TRIM, NO.1

main67731-32010×2iCV20,SV2#,VZV20..HT198808-199007

67732SPACER, SIDE TRIM, NO.2

main67732-32010×2iCV20,SV2#,VZV20..HT198808-199007

67741AMOULDING, FRONT DOOR TRIM, RH

main67741-32050×2iCV20,SV2#,VZV20198808-199007

67742AMOULDING, FRONT DOOR TRIM, LH

main67742-32020×2iCV20,SV2#,VZV20198808-199007

74223CAP, DOOR ARMREST, RH

main74223-32020-02×2iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main74223-32020-03×2iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main74223-32020-04×2iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

74224CAP, DOOR ARMREST, LH

main74224-32010-02×2iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main74224-32010-03×2iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main74224-32010-04×2iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

74231BPANEL, DOOR ARMREST BASE, RH

main74231-32080-02iSV25..XT198910-199007

main74231-32080-03iSV25..XT198910-199007

main74231-32080-04iCV20..VL;SV22..SED..VL198905-199007

main74231-32120iVZV20198808-199007

74232BPANEL, DOOR ARMREST BASE, LH

main74232-32070-02iCV20..VL;SV22..SED..VL198905-199007

main74232-32070-03iCV20..VL;SV22..SED..VL198905-199007

main74232-32070-04iCV20..VL;SV22..SED..VL198905-199007

main74232-32100iVZV20198808-199007

74235APLATE, FRONT DOOR ARMREST BASE FINISH, RH

main74235-32010iCV20,SV2#,VZV20..SED198808-199007

74236APLATE, FRONT DOOR ARMREST BASE FINISH, LH

main74236-32010iCV20,SV2#,VZV20..SED198808-199007

74237BCAP, DOOR ARMREST BASE

main74237-32010-02×4iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

main74237-32010-03×4iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

main74237-32010-04×4iSV22..HT..VL198905-199007

main74237-32020-02×4iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main74237-32020-03×4iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main74237-32020-04×4iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

74275APLATE, REAR DOOR ARMREST BASE FINISH,RH

main74275-32010iCV20,SV2#,VZV20..SED198808-199007

74276APLATE, REAR DOOR ARMREST BASE FINISH,LH

main74276-32010iCV20,SV2#,VZV20..SED198808-199007

74310VISOR ASSY, RH

main74310-32250-02iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

main74310-32250-03iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,8#

main74310-32390-02iSV25..XT198910-199007

main74310-32390-03iSV25..XT198910-199007

main74310-32400-02iVZV20..SED198808-199007

MAROON,TRIM3#

main74310-32400-03iVZV20..SED198808-199007

LIGHT GRAY,TRIM1#,8#

main74310-32460-02iCV20,SV2#..HT198808-199007

MAROON,TRIM3#

main74310-32460-03iCV20,SV2#..HT198808-199007

MEDIUM GRAY,TRIM1#

main74310-32460-04iCV20,SV2#..HT198808-199007

DARK BLUE,TRIM8#

main74310-32470-02iVZV20..HT198808-199007

MAROON,TRIM3#

main74310-32470-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main74310-32470-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main74310-32480-02iVZV20..HT198808-198905

main74310-32480-03iVZV20..HT198905-199007

main74310-32480-04iVZV20..HT198905-199007

74320VISOR ASSY, LH

main74320-32200-02iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

main74320-32200-03iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,8#

main74320-32240-02iSV25..XT198910-199007

main74320-32240-03iSV25..XT198910-199007

main74320-32250-02iCV20,SV21,22..LUM198906-199007

main74320-32250-03iCV20,SV21,22..LUM198901-198906

main74320-32330-02iCV20,SV2#..HT..(VE,VL)198808-199007

MAROON,TRIM3#

main74320-32330-03iCV20,SV2#..HT..(VE,VL)198808-199007

MEDIUM GRAY,TRIM1#

main74320-32330-04iCV20,SV2#..HT..(VE,VL)198808-199007

DARK BLUE,TRIM8#

main74320-32340-02iSV2#..HT..(GT,VR,VX)198808-199007

MAROON,TRIM3#

main74320-32340-03iSV2#..HT..(GT,VR,VX)198808-199007

MEDIUM GRAY,TRIM1#

main74320-32340-04iSV2#..HT..(GT,VR,VX)198808-199007

DARK BLUE,TRIM8#

main74320-32360-02iVZV20..SED198808-199007

MAROON,TRIM3#

main74320-32360-03iVZV20..SED198808-199007

LIGHT GRAY,TRIM1#,8#

main74320-32410-02iVZV20..HT198808-199007

MAROON,TRIM3#

main74320-32410-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main74320-32410-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main74320-32420-02iVZV20..HT198905-199007

main74320-32420-03iVZV20..HT198905-199007

main74320-32420-04iVZV20..HT198808-198905

74348HOLDER, VISOR

main74348-12020-02×2iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

sub74348-60010

sub74348-26020

main74348-12020-04×2iCV20,SV2#,VZV20..SED198808-199007

LIGHT BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-12020-13×2iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-12020-14×2iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-12020-23×2iCV20,SV2#,VZV20..SED198808-199007

LIGHT GRAY,TRIM1#

sub74348-60010

sub74348-26020

74610AGRIP SUB-ASSY, ASSIST

main74610-32020-02×3iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

sub74610-35012

main74610-32020-03×3iCV20,SV2#,VZV20..SED198808-199007

LIGHT GRAY,TRIM1#,8#

sub74610-35012

main74610-32030-B0×3iCV20,SV2#,VZV20..HT198808-199007

LIGHT GRAY,TRIM1#

main74610-32030-D0×3iCV20,SV2#,VZV20..HT198808-199007

main74610-32030-J0×3iCV20,SV2#,VZV20..HT198808-199007

LIGHT BLUE,TRIM8#

74617APLUG, ASSIST GRIP

main74617-16010-02×6iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

main74617-16010-23×6iCV20,SV2#,VZV20..SED198808-199007

GRAY,TRIM1#,8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-32010-02×2iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main74630-32010-03×2iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main74630-32010-04×2iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-32010-02×2iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main74640-32010-03×2iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main74640-32010-04×2iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

9015960203

main90159-60203

9016460014

main90164-60014

9046710012

main90467-10012

9353045020

main93530-45020

24 parts on this diagram · 1 diagram in section
