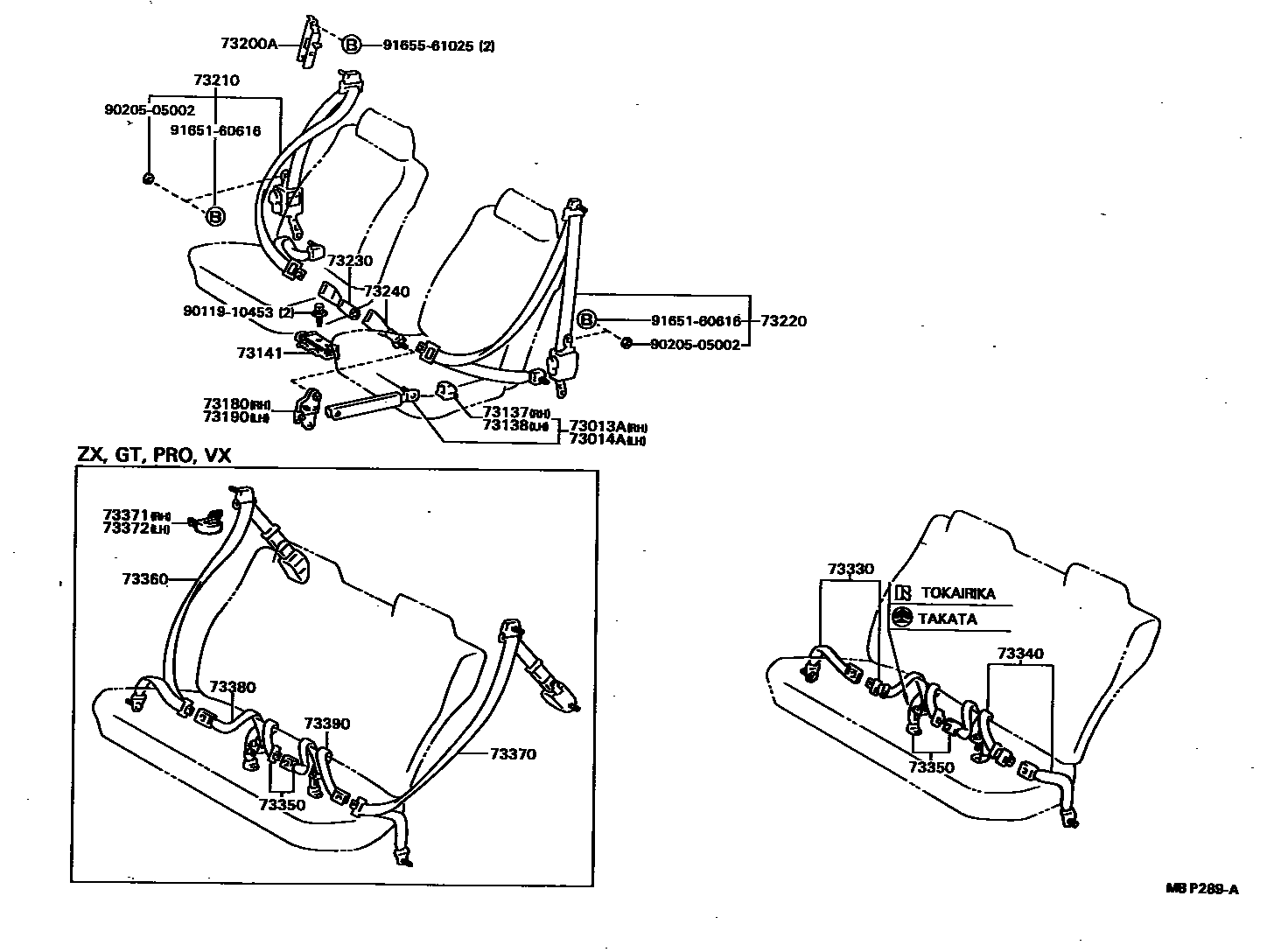

SEAT BELT & CHILD RESTRAINT SEAT

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-32030-02iCV20,SV21,22,VZV20198808-199007

MAROON,TRIM3#

main73013-32030-03iCV20,SV21,22,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main73013-32030-04iCV20,SV21,22,VZV20198808-199007

DARK BLUE,TRIM8#

main73013-32040-02iSV25198808-199007

MAROON,TRIM3#

main73013-32040-03iSV25198808-199007

MEDIUM GRAY,TRIM1#

main73013-32040-04iSV25198808-199007

DARK BLUE,TRIM8#

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-32030-02iCV20,SV21,22,VZV20198808-199007

MAROON,TRIM3#

main73014-32030-03iCV20,SV21,22,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main73014-32030-04iCV20,SV21,22,VZV20198808-199007

DARK BLUE,TRIM8#

main73014-32040-02iSV25198808-199007

MAROON,TRIM3#

main73014-32040-03iSV25198808-199007

MEDIUM GRAY,TRIM1#

main73014-32040-04iSV25198808-199007

DARK BLUE,TRIM8#

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-32030-02iCV20,SV21,22,VZV20198808-199007

MAROON,TRIM3#

main73137-32030-03iCV20,SV21,22,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main73137-32030-04iCV20,SV21,22,VZV20198808-199007

DARK BLUE,TRIM8#

main73137-32040-02iSV25198808-199007

MAROON,TRIM3#

main73137-32040-03iSV25198808-199007

MEDIUM GRAY,TRIM1#

main73137-32040-04iSV25198808-199007

DARK BLUE,TRIM8#

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-32030-02iCV20,SV21,22,VZV20198808-199007

MAROON,TRIM3#

main73138-32030-03iCV20,SV21,22,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main73138-32030-04iCV20,SV21,22,VZV20198808-199007

DARK BLUE,TRIM8#

main73138-32040-02iSV25198808-199007

MAROON,TRIM3#

main73138-32040-03iSV25198808-199007

MEDIUM GRAY,TRIM1#

main73138-32040-04iSV25198808-199007

DARK BLUE,TRIM8#

73141BASE, FRONT SEAT BELT ANCHOR

main73141-32040iCV20,SV21,22,VZV20198808-199007

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-32020iCV20,SV2#,VZV20198808-199007

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-32020iCV20,SV2#,VZV20198808-199007

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-32030-02×2iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

main73200-32030-03×2iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

main73200-32030-04×2iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

main73200-32040-02×2iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main73200-32040-03×2iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main73200-32040-04×2iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-32180-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main73210-32180-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main73210-32180-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main73210-32220-02iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MAROON,TRIM3#

main73210-32220-03iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MEDIUM GRAY,TRIM1#

main73210-32220-04iCV20,SV2#..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#

main73210-32230-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main73210-32230-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main73210-32230-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

main73210-32250-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main73210-32250-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main73210-32250-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-32180-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main73220-32180-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main73220-32180-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main73220-32230-02iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MAROON,TRIM3#

main73220-32230-03iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MEDIUM GRAY,TRIM1#

main73220-32230-04iCV20,SV2#..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#

main73220-32240-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main73220-32240-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main73220-32240-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

main73220-32260-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main73220-32260-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main73220-32260-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-32091-02iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

MAROON,TRIM3#

main73230-32091-03iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

MEDIUM GRAY,TRIM1#

main73230-32091-04iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

DARK BLUE,TRIM8#

main73230-32140-02iSV21,VZV20..GT,PRO,VX,ZX198808-199007

MAROON,TRIM3#

main73230-32140-03iSV21,VZV20..GT,PRO,VX,ZX198808-199007

MEDIUM GRAY,TRIM1#

main73230-32140-04iSV21,VZV20..GT,PRO,VX,ZX198808-199007

DARK BLUE,TRIM8#

main73230-32150-02iVZV20..HT198808-199007

main73230-32150-03iVZV20..HT198808-199007

main73230-32150-04iVZV20..HT198808-199007

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-32091-02iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

MAROON,TRIM3#

main73230-32091-03iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

MEDIUM GRAY,TRIM1#

main73230-32091-04iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

DARK BLUE,TRIM8#

main73240-32090-02iSV21,VZV20..GT,PRO,VX,ZX198808-199007

MAROON,TRIM3#

main73240-32090-03iSV21,VZV20..GT,PRO,VX,ZX198808-199007

MEDIUM GRAY,TRIM1#

main73240-32090-04iSV21,VZV20..GT,PRO,VX,ZX198808-199007

DARK BLUE,TRIM8#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-32180-02iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

main73330-32180-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

main73330-32180-04iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

main73330-32190-02iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#,TAKATA

main73330-32190-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#,TAKATA

main73330-32190-04iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#,TAKATA

main73330-32200-02iVZV20..HT198808-198905

main73330-32200-03iSV25;CV20,SV21,22..HT..(VE,VL,VR)198808-199007

MEDIUM GRAY,TRIM1#,TAKATA

main73330-32200-04iSV25;CV20,SV21,22..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#,TAKATA

main73330-32210-02iVZV20..HT198808-198809

main73330-32210-03iVZV20..HT198808-198809

main73330-32210-04iVZV20..HT198808-198809

main73330-32211-02iSV25;CV20,SV21,22..HT..(VE,VL,VR)198809-199007

main73330-32211-03iSV25;CV20,SV21,22..HT..(VE,VL,VR)198809-199007

main73330-32211-04iVZV20..HT198905-199007

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-32180-02iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

main73330-32180-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

main73330-32180-04iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

main73330-32190-02iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#,TAKATA

main73330-32190-03iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#,TAKATA

main73330-32190-04iCV20,SV21,22..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#,TAKATA

main73330-32200-02iSV25;CV20,SV21,22..HT..(VE,VL,VR)198808-199007

MAROON,TRIM3#,TAKATA

main73330-32200-03iVZV20..HT198808-198905

main73330-32200-04iSV25;CV20,SV21,22..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#,TAKATA

main73330-32210-02iVZV20..HT198808-198809

main73330-32210-03iVZV20..HT198808-198809

main73330-32210-04iVZV20..HT198808-198809

main73330-32211-02iVZV20..HT198809-198905

main73330-32211-03iVZV20..HT198809-198905

main73330-32211-04iSV25;CV20,SV21,22..HT..(VE,VL,VR)198809-199007

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-32170-02iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

MAROON,TRIM3#

main73350-32170-03iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

main73350-32170-04iCV20,SV2#..LT,LUM,VC,VE,VL,VR,XT,ZE198808-199007

DARK BLUE,TRIM8#

main73350-32190-02iVZV20..HT198808-198905

main73350-32190-03iVZV20..HT198808-198905

main73350-32190-04iVZV20..HT198905-199007

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-32250-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main73360-32250-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main73360-32250-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main73360-32300-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main73360-32300-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main73360-32300-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-32130-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main73370-32130-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main73370-32130-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main73370-32250-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main73370-32250-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main73370-32250-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-32020-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main73371-32020-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main73371-32020-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-32020-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main73371-32020-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main73371-32020-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-32120-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-198902

MAROON,TRIM3#

main73380-32120-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-198902

MEDIUM GRAY,TRIM1#

main73380-32120-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-198902

DARK BLUE,TRIM8#

main73380-32121-02iSV21,VZV20..GT,PRO,VX,ZX198902-199007

MAROON,TRIM3#

main73380-32121-03iSV21,VZV20..GT,PRO,VX,ZX198902-199007

MEDIUM GRAY,TRIM1#

main73380-32121-04iSV21,VZV20..GT,PRO,VX,ZX198902-199007

DARK BLUE,TRIM8#

main73380-32200-02iSV21,VZV20..HT..(GT,PRO,VX)198808-198902

MAROON,TRIM3#

main73380-32200-03iSV21,VZV20..HT..(GT,PRO,VX)198808-198902

MEDIUM GRAY,TRIM1#

main73380-32200-04iSV21,VZV20..HT..(GT,PRO,VX)198808-198902

DARK BLUE,TRIM8#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-32120-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-198902

MAROON,TRIM3#

main73380-32120-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-198902

MEDIUM GRAY,TRIM1#

main73380-32120-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-198902

DARK BLUE,TRIM8#

main73380-32121-02iSV21,VZV20..GT,PRO,VX,ZX198902-199007

MAROON,TRIM3#

main73380-32121-03iSV21,VZV20..GT,PRO,VX,ZX198902-199007

MEDIUM GRAY,TRIM1#

main73380-32121-04iSV21,VZV20..GT,PRO,VX,ZX198902-199007

DARK BLUE,TRIM8#

main73380-32200-02iSV21,VZV20..HT..(GT,PRO,VX)198808-198902

MAROON,TRIM3#

main73380-32200-03iSV21,VZV20..HT..(GT,PRO,VX)198808-198902

MEDIUM GRAY,TRIM1#

main73380-32200-04iSV21,VZV20..HT..(GT,PRO,VX)198808-198902

DARK BLUE,TRIM8#

9011910453

main90119-10453

9020505002

main90205-05002

9165160616

main91651-60616

9165561025

main91655-61025

25 parts on this diagram · 1 diagram in section
