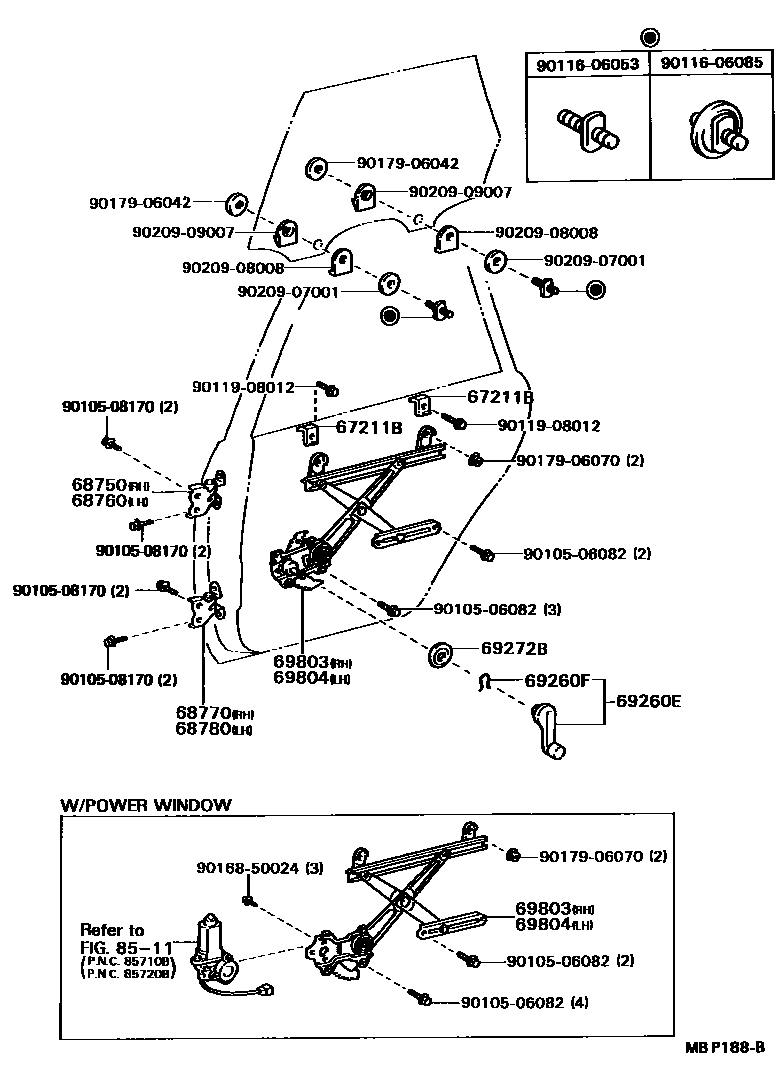

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-32010×4iCV20,SV2#,VZV20..SED198808-199007

main67211-32020×4iCV20,SV2#,VZV20..HT198808-198906

main67211-32030×4iCV20,SV2#,VZV20..HT198906-199007

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32020iCV20,SV2#,VZV20198808-199007

sub68750-32030

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32020iCV20,SV2#,VZV20198808-199007

sub68760-32030

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32020iCV20,SV2#,VZV20198808-199007

sub68770-32030

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-32020iCV20,SV2#,VZV20198808-199007

sub68780-32030

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-14×2iCV20,SV22,25..LT,VC,VL,XT198808-199007

DARK BLUE,TRIM8#

main69260-22030-22×2iCV20,SV22,25..LT,VC,VL,XT198808-199007

MAROON,TRIM3#

main69260-22030-23×2iCV20,SV22,25..LT,VC,VL,XT198808-199007

MEDIUM GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iCV20,SV22,25..LT,VC,VL,XT198808-199007

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iCV20,SV22,25..LT,VC,VL,XT198808-199007

NATURAL WHITE,TRIM1#,3#,8#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32020iCV20,SV22..SED..VL;SV25..SED..(VL,XT)198906-199007

main69803-32030iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-198906

main69803-32040iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198906-199007

main69830-32030iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

main69830-32050iCV20,SV22,25..HT..VL198808-199007

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32020iCV20,SV22..SED..VL;SV25..SED..(VL,XT)198906-199007

main69804-32030iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-198906

main69804-32040iCV20,SV22..HT..VL198906-199007

main69840-32030iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

main69840-32050iCV20,SV22,25..HT..VL198808-199007

8511

9010506082

main90105-06082

9010508170

main90105-08170

9011606053

main90116-06053

9011606085

main90116-06085

9011908012

main90119-08012

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

22 parts on this diagram · 2 diagrams in section
