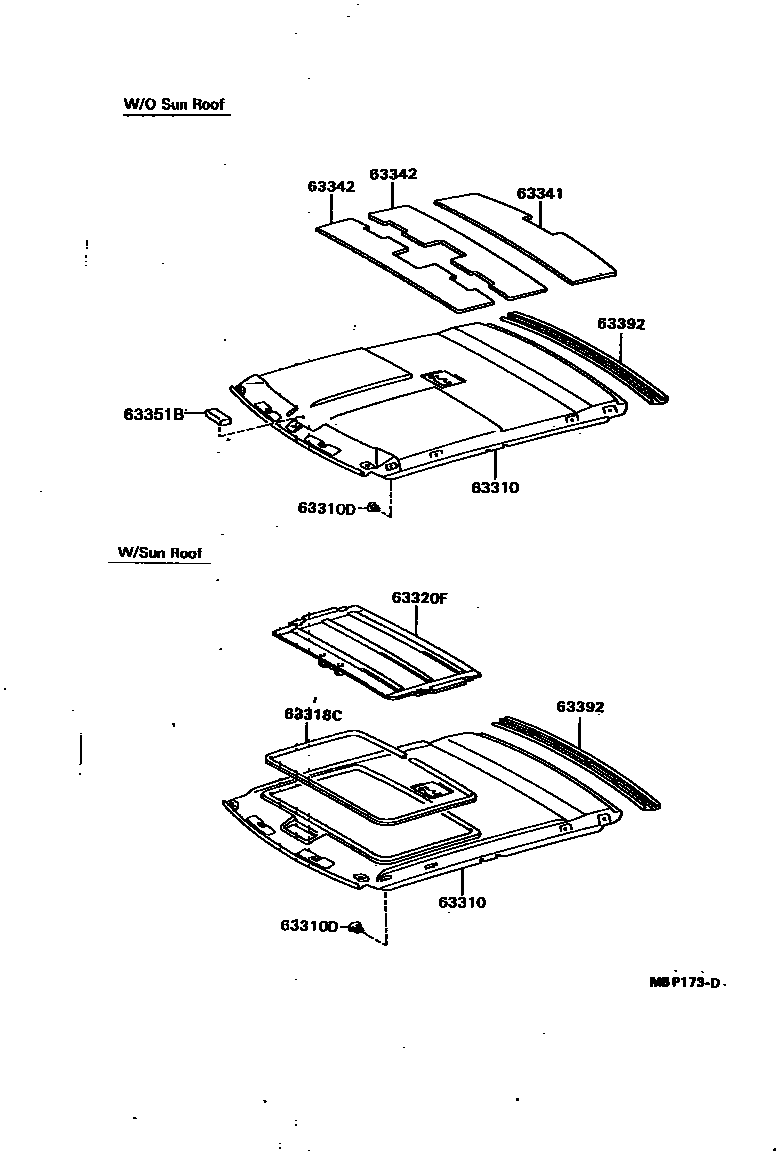

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-32180-02iSV25..XT198905-199007

main63310-32180-02iSV25..XT198910-199007

main63310-32180-02iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

MAROON,TRIM3#

main63310-32180-03iSV25..SED..VL198905-199007

main63310-32180-03iSV25..XT198910-199007

main63310-32180-03iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

LIGHT GRAY,TRIM1#,8#

main63310-32190-02iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

main63310-32190-03iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

main63310-32280-02iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

MAROON,TRIM3#

main63310-32280-03iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

LIGHT GRAY,TRIM1#,8#

main63310-32350-02iVZV20..HT198808-199007

MAROON,TRIM3#

main63310-32350-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main63310-32350-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main63310-32370-02iCV20,SV22,25..HT..VL198808-199007

MAROON,TRIM3#

main63310-32370-04iCV20,SV22,25..HT..VL198808-199007

DARK BLUE,TRIM8#

main63310-32370-13iCV20,SV22,25..HT..VL198808-199007

MEDIUM GRAY,TRIM1#

main63310-32380-02iCV20,SV22..HT..VL198905-199007

sub63310-32360

main63310-32380-02iCV20,SV2#..HT..(GT,VE,VR,VX)198808-199007

MAROON,TRIM3#

sub63310-32360

main63310-32380-04iCV20,SV2#..HT..(GT,VE,VR,VX)198808-199007

DARK BLUE,TRIM8#

sub63310-32360

main63310-32380-04iCV20,SV22..HT..VL198905-199007

sub63310-32360

main63310-32380-13iCV20,SV22..HT..VL198905-199007

sub63310-32360

main63310-32380-13iCV20,SV2#..HT..(GT,VE,VR,VX)198808-199007

MEDIUM GRAY,TRIM1#

sub63310-32360

main63311-32090-02iCV20,SV2#..HT..(GT,VE,VR,VX)198808-198906

sub63311-32110

main63311-32090-03iCV20,SV2#..HT..(GT,VE,VR,VX)198808-199007

sub63311-32110

main63311-32090-04iCV20,SV2#..HT..(GT,VE,VR,VX)198808-198906

sub63311-32110

main63311-32100-02iVZV20..HT198808-199007

main63311-32100-03iVZV20..HT198808-199007

main63311-32100-04iVZV20..HT198808-199007

main63311-32110-02iCV20,SV2#..HT..(GT,VE,VR,VX)198906-199007

main63311-32110-04iCV20,SV2#..HT..(GT,VE,VR,VX)198906-199007

63310DCLIP, ROOF HEADLINING

main90467-06048-02iCV20,SV2#,VZV20..SED198808-198809

MAROON,TRIM3#

sub90467-06048

main90467-06048-23iCV20,SV2#,VZV20..SED198808-199007

LIGHT GRAY,TRIM1#,8#

sub90467-06048

main90467-06048-D0iCV20,SV2#,VZV20..SED198809-199007

MAROON,TRIM3#

sub90467-06048

main90467-06072-B0iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

sub90467-06072

main90467-06072-D0iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

sub90467-06072

main90467-06072-J0iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-199007

sub90467-06072

main90467-07034iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-32010-B1iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-198812

LIGHT GRAY,TRIM1#,8#

sub63318-32010

sub63318-32030

main63318-32010-D1iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-198812

MAROON,TRIM3#

sub63318-32010

sub63318-32030

main63318-32020-02iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

MAROON,TRIM3#

main63318-32020-03iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-199007

LIGHT GRAY,TRIM1#,8#

main63318-32030-B0iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198812-199007

LIGHT GRAY,TRIM1#,8#

main63318-32030-D0iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198812-199007

MAROON,TRIM3#

63320FHEADLINING ASSY, SUN ROOF

main63320-32011-02iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-198912

MAROON,TRIM3#

main63320-32011-03iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198808-198912

LIGHT GRAY,TRIM1#,8#

main63320-32012-02iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198912-199007

MAROON,TRIM3#

main63320-32012-03iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198912-199007

LIGHT GRAY,TRIM1#

main63320-32012-04iCV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX)198912-199007

LIGHT BLUE,TRIM8#

main63320-32050-02iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-198912

MAROON,TRIM3#

main63320-32050-03iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198808-198912

LIGHT GRAY,TRIM1#,8#

main63320-32051-02iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198912-199007

MAROON,TRIM3#

sub63320-32051

main63320-32051-03iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198912-199007

LIGHT GRAY,TRIM1#

sub63320-32051

main63320-32051-04iCV20,SV2#,VZV20..HT..(GT,PRO,VE,VR,VX)198912-199007

LIGHT BLUE,TRIM8#

sub63320-32051

63341PAD, ROOF SILENCER, NO.1

main63341-32020iCV20,SV2#,VZV20..SED198808-199006

sub63341-22H92

main63341-32040iCV20,SV2#,VZV20..SED199006-199007

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63342-32010iCV20,SV2#,VZV20..HT198808-199007

sub63341-22H92

main63342-32040iCV20,SV2#,VZV20..SED199006-199007

sub63341-22H92

63351BPAD, ROOF HEADLINING

main63351-32010iCV20,SV22,25..SED..(LT,VC,VL,XT)198808-199007

63392TRIM, ROOF HEADLINING, REAR

main63305-32050-B0iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

sub63305-32050

main63305-32050-D0iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

sub63305-32050

main63305-32050-J0iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

LIGHT BLUE,TRIM8#

sub63305-32050

main63305-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main63305-32060-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main63305-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main63305-32080-02iVZV20..HT198808-199007

MAROON,TRIM3#

main63305-32080-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main63305-32080-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main63305-32090-02iCV20,SV2#..HT198808-199007

MAROON,TRIM3#

main63305-32090-03iCV20,SV2#..HT198808-199007

MEDIUM GRAY,TRIM1#

main63305-32090-04iCV20,SV2#..HT198808-199007

DARK BLUE,TRIM8#

8 parts on this diagram · 2 diagrams in section
