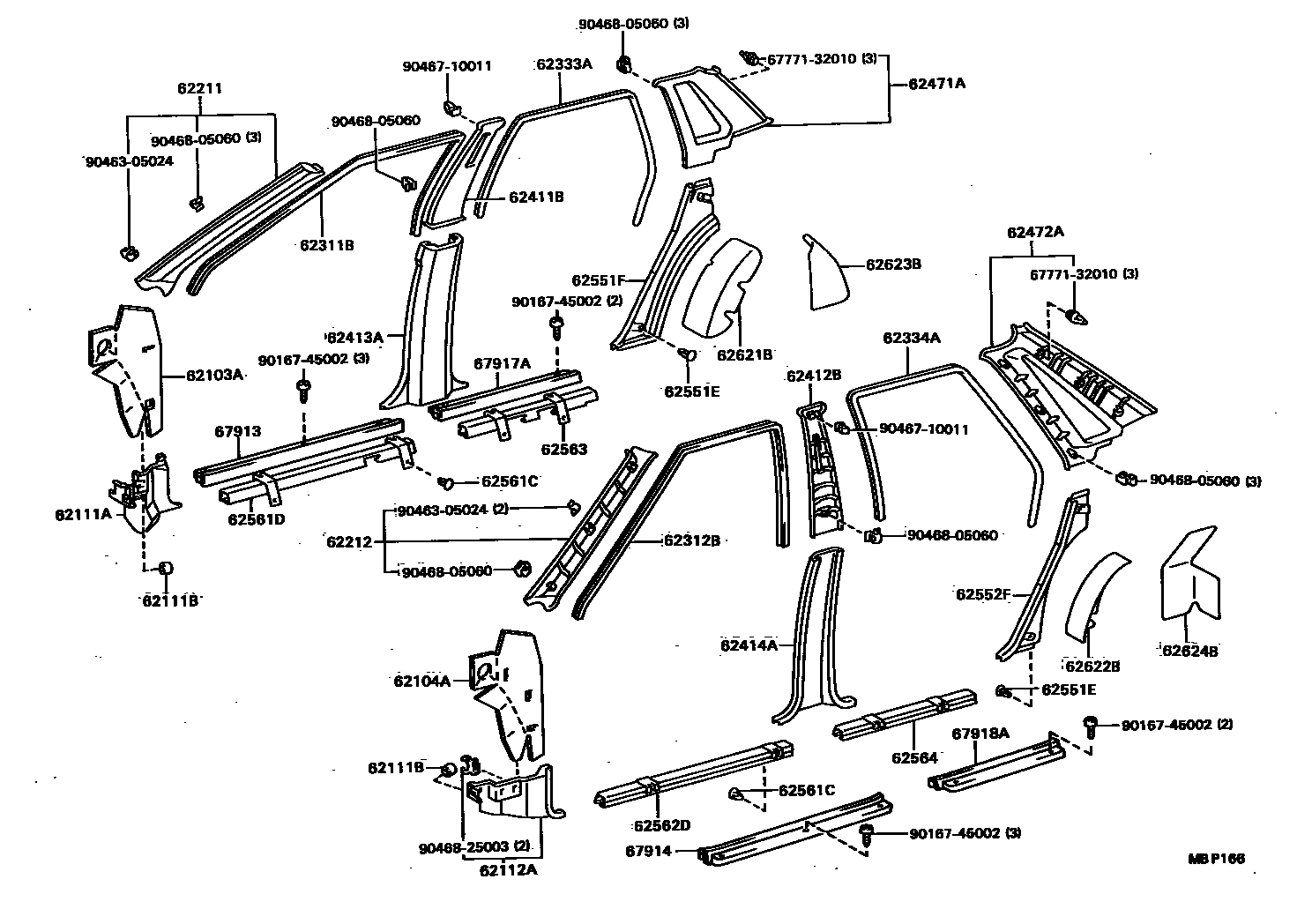

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-32030iCV20,SV2#,VZV20198808-199007

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-32030iCV20,SV2#,VZV20198808-199007

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-32030-02iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main62101-32030-03iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main62101-32030-04iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06074×2iCV20,SV2#,VZV20198808-199007

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-32060-02iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main62102-32060-03iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main62102-32060-04iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

62211GARNISH, FRONT PILLAR, RH

main62210-32050-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62210-32050-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62210-32050-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62210-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62210-32060-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62210-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main62210-32080-02iCV20,SV2#..HT198808-199007

MAROON,TRIM3#

main62210-32080-03iCV20,SV2#..HT198808-199007

MEDIUM GRAY,TRIM1#

main62210-32080-04iCV20,SV2#..HT198808-199007

DARK BLUE,TRIM8#

main62210-32090-02iVZV20..HT198808-199007

MAROON,TRIM3#

main62210-32090-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62210-32090-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62220-32050-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62220-32050-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62220-32050-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62220-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62220-32060-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62220-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main62220-32080-02iCV20,SV2#..HT198808-199007

MAROON,TRIM3#

main62220-32080-03iCV20,SV2#..HT198808-199007

MEDIUM GRAY,TRIM1#

main62220-32080-04iCV20,SV2#..HT198808-199007

DARK BLUE,TRIM8#

main62220-32090-02iVZV20..HT198808-199007

MAROON,TRIM3#

main62220-32090-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62220-32090-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-32050-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62311-32050-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62311-32050-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62311-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62311-32060-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62311-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-32050-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62312-32050-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62312-32050-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62312-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62312-32060-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62312-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

62333ATRIM, REAR DOOR OPENING, RH

main62333-32030-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62333-32030-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62333-32030-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62333-32040-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62333-32040-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62333-32040-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main62333-32050-02iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MAROON,TRIM3#

main62333-32050-03iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MEDIUM GRAY,TRIM1#

main62333-32050-04iCV20,SV2#..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#

main62333-32060-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main62333-32060-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main62333-32060-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

62334ATRIM, REAR DOOR OPENING, LH

main62333-32050-02iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MAROON,TRIM3#

main62333-32050-03iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MEDIUM GRAY,TRIM1#

main62333-32050-04iCV20,SV2#..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#

main62333-32060-02iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MAROON,TRIM3#

main62333-32060-03iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

MEDIUM GRAY,TRIM1#

main62333-32060-04iSV21,VZV20..HT..(GT,PRO,VX)198808-199007

DARK BLUE,TRIM8#

main62334-32010-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62334-32010-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62334-32010-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62334-32020-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62334-32020-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62334-32020-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-32100-02iVZV20..HT198808-199007

MAROON,TRIM3#

main62411-32100-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62411-32100-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main62411-32130-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62411-32130-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62411-32130-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62411-32140-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62411-32140-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62411-32140-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main62411-32160-02iCV20,SV2#..HT198808-199007

MAROON,TRIM3#

main62411-32160-03iCV20,SV2#..HT198808-199007

MEDIUM GRAY,TRIM1#

main62411-32160-04iCV20,SV2#..HT198808-199007

DARK BLUE,TRIM8#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-32100-02iVZV20..HT198808-199007

MAROON,TRIM3#

main62412-32100-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62412-32100-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main62412-32130-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62412-32130-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62412-32130-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62412-32140-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62412-32140-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62412-32140-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main62412-32160-02iCV20,SV2#..HT198808-199007

MAROON,TRIM3#

main62412-32160-03iCV20,SV2#..HT198808-199007

MEDIUM GRAY,TRIM1#

main62412-32160-04iCV20,SV2#..HT198808-199007

DARK BLUE,TRIM8#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-32020-02iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

main62413-32020-03iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

main62413-32020-04iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

main62413-32040-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main62413-32040-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62413-32040-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-32020-02iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

main62414-32020-03iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

main62414-32020-04iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

main62414-32040-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main62414-32040-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62414-32040-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-32110-02iSV21..HT..(GT,VX)198808-199007

MAROON,TRIM3#

main62470-32110-03iSV21..HT..(GT,VX)198808-199007

MEDIUM GRAY,TRIM1#

main62470-32110-04iSV21..HT..(GT,VX)198808-199007

DARK BLUE,TRIM8#

main62470-32140-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62470-32140-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62470-32140-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62470-32170-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62470-32170-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62470-32170-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main62470-32180-02iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MAROON,TRIM3#

main62470-32180-03iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MEDIUM GRAY,TRIM1#

main62470-32180-04iCV20,SV2#..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#

main62470-32190-02iVZV20..HT198808-199007

MAROON,TRIM3#

main62470-32190-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62470-32190-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main62470-32200-02iVZV20..HT198905-199007

main62470-32200-03iVZV20..HT198808-198905

main62470-32200-04iVZV20..HT198808-198905

62472AGARNISH, ROOF SIDE, INNER LH

main62480-32110-02iSV21..HT..(GT,VX)198808-199007

MAROON,TRIM3#

main62480-32110-03iSV21..HT..(GT,VX)198808-199007

MEDIUM GRAY,TRIM1#

main62480-32110-04iSV21..HT..(GT,VX)198808-199007

DARK BLUE,TRIM8#

main62480-32130-02iVZV20..HT198808-199007

MAROON,TRIM3#

main62480-32130-03iVZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62480-32130-04iVZV20..HT198808-199007

DARK BLUE,TRIM8#

main62480-32140-02iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MAROON,TRIM3#

main62480-32140-03iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

MEDIUM GRAY,TRIM1#

main62480-32140-04iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,VR,XT,ZE)198808-199007

DARK BLUE,TRIM8#

main62480-32170-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MAROON,TRIM3#

main62480-32170-03iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

MEDIUM GRAY,TRIM1#

main62480-32170-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198808-199007

DARK BLUE,TRIM8#

main62480-32180-02iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MAROON,TRIM3#

main62480-32180-03iCV20,SV2#..HT..(VE,VL,VR)198808-199007

MEDIUM GRAY,TRIM1#

main62480-32180-04iCV20,SV2#..HT..(VE,VL,VR)198808-199007

DARK BLUE,TRIM8#

main62480-32190-02iVZV20..HT198905-199007

main62480-32190-03iVZV20..HT198808-198905

main62480-32190-04iVZV20..HT198808-198905

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-06018-01×4iCV20,SV2#,VZV20198808-199007

BLACK,TRIM1#,3#,8#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-32020-02iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

main62551-32020-03iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

main62551-32020-04iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

main62551-32030-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main62551-32030-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62551-32030-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-32020-02iCV20,SV2#,VZV20..SED198808-199007

MAROON,TRIM3#

main62552-32020-03iCV20,SV2#,VZV20..SED198808-199007

MEDIUM GRAY,TRIM1#

main62552-32020-04iCV20,SV2#,VZV20..SED198808-199007

DARK BLUE,TRIM8#

main62552-32030-02iCV20,SV2#,VZV20..HT198808-199007

MAROON,TRIM3#

main62552-32030-03iCV20,SV2#,VZV20..HT198808-199007

MEDIUM GRAY,TRIM1#

main62552-32030-04iCV20,SV2#,VZV20..HT198808-199007

DARK BLUE,TRIM8#

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-11021-01×6iCV20,SV2#,VZV20198808-199007

BLACK,TRIM1#,3#,8#

sub90467-11068

62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH

main62561-32020iCV20,SV2#,VZV20198808-199007

62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH

main62562-32020iCV20,SV2#,VZV20198808-199007

62563PROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-03010iCV20,SV2#,VZV20198808-199007

main62563-32020iCV20,SV2#,VZV20198808-199007

62564PROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-03010iCV20,SV2#,VZV20198808-199007

main62564-32020iCV20,SV2#,VZV20198808-199007

62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH

main67812-12010iCV20,SV2#,VZV20198808-199007

62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main67812-12010iCV20,SV2#,VZV20198808-199007

62623BPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-32010iCV20,SV2#,VZV20198808-199007

62624BPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62624-20030iSV25198808-199007

main62624-32010iCV20,SV21,22,VZV20198808-199007

67913PLATE, FRONT DOOR SCUFF, RH

main67913-32020-02iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main67913-32020-03iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main67913-32020-04iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

67914PLATE, FRONT DOOR SCUFF, LH

main67913-32020-02iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main67913-32020-03iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main67913-32020-04iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

67917APLATE, REAR DOOR SCUFF, RH

main67917-32020-02iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main67917-32020-03iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main67917-32020-04iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

67918APLATE, REAR DOOR SCUFF, LH

main67917-32020-02iCV20,SV2#,VZV20198808-199007

MAROON,TRIM3#

main67917-32020-03iCV20,SV2#,VZV20198808-199007

MEDIUM GRAY,TRIM1#

main67917-32020-04iCV20,SV2#,VZV20198808-199007

DARK BLUE,TRIM8#

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9016745002

main90167-45002

9046305024

main90463-05024

9046710011

main90467-10011

9046805060

main90468-05060

9046825003

main90468-25003

39 parts on this diagram · 2 diagrams in section
