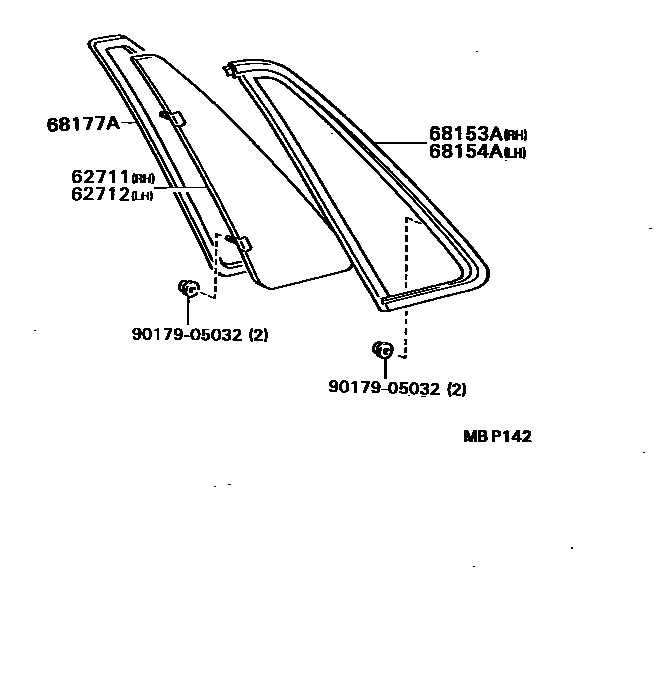

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-32180iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

main62711-32190iSV2#,VZV20..SED..(GT,PRO,ZE,ZX)198808-199007

main62711-32200iSV2#..SED..(VR,VX)198808-199007

main62711-32210iCV20,SV22..SED..VL198808-198905

main62711-32220iSV2#,VZV20..SED..(GT,PRO,ZE,ZX)198808-199007

main62711-32230iSV2#..SED..(VR,VX)198808-199007

62712GLASS, QUARTER WINDOW, LH

main62712-32180iSV2#..SED..(VR,VX)198808-199007

main62712-32190iCV20,SV22..SED..VL198808-198905

main62712-32200iSV2#,VZV20..SED..(GT,PRO,ZE,ZX)198808-199007

main62712-32210iSV2#..SED..(VR,VX)198808-199007

main62712-32240iCV20,SV2#..SED..(LT,LUM,VC,VE,VL,XT)198808-199007

main62712-32250iSV2#,VZV20..SED..(GT,PRO,ZE,ZX)198808-199007

68153AMOULDING, QUARTER WINDOW NO.2 GLASS, RH

main68153-32040iCV20,SV2#,VZV20..SED198808-199007

68154AMOULDING, QUARTER WINDOW NO.2 GLASS, LH

main68154-32040iCV20,SV2#,VZV20..SED198808-199007

68177ASEAL, QUARTER WINDOW NO.2 GLASS, NO.1

main68177-32030iCV20,SV2#,VZV20..SED198808-199007

9017905032

main90179-05032

6 parts on this diagram · 1 diagram in section
