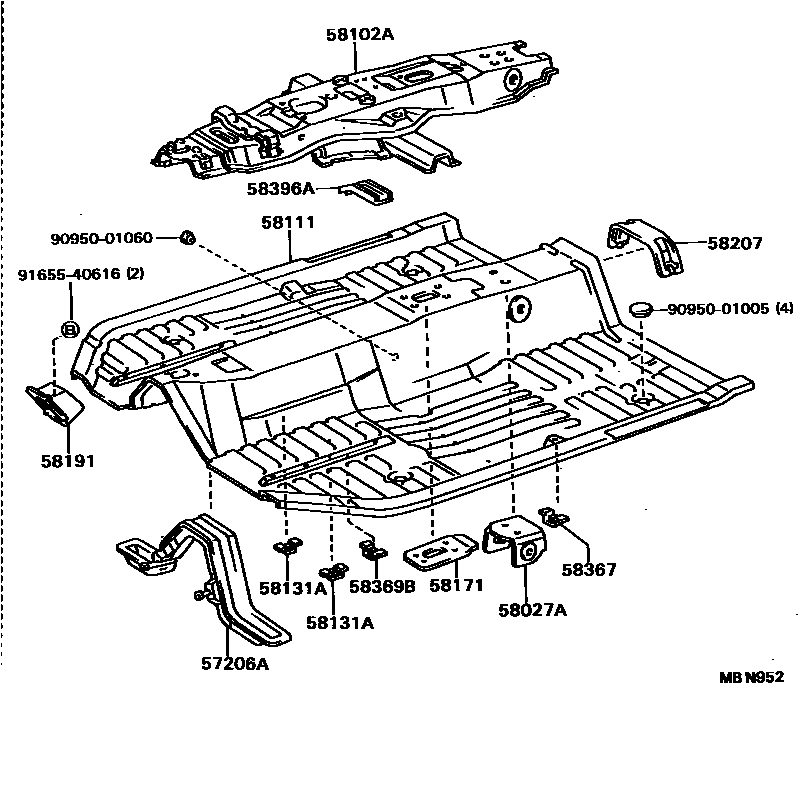

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-32010iCV20,SV21,22,VZV20198808-199007

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-32030iCV20,SV21,22,VZV20198808-199007

main58027-32040iSV25198808-199007

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-32040iSV25198808-199007

main58102-32900iCV20,SV21,22,VZV20198808-199007

58111PAN, FRONT FLOOR

main58111-32020iCV20,SV21,22,VZV20..4FC198808-199007

main58111-32030iCV20,SV21,22,VZV20..5F198808-199007

main58111-32040iSV25..4FC198808-199007

main58111-32050iSV25..5F198808-199007

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-32010iSV25198808-199007

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-32010iSV21,VZV20..GT,PRO198808-199007

main58171-32010iCV20,SV2#..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX198808-199007

58191FOOTREST, FRONT FLOOR

main58191-32030iCV20,SV2#,VZV20198808-199007

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-32020iCV20,SV21,22,VZV20198808-199007

main58207-32030iSV25198808-199007

58367BRACKET, FUEL TUBE CLAMP

main58266-22040iCV20,SV2#,VZV20198808-199007

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iCV20,SV21,22,VZV20198808-199007

58396ABRACKET, WIRE HARNESS CLAMP

main58396-32010iCV20,SV21,22,VZV20198808-199007

9095001005

main90950-01005

9095001060

main90950-01060

9165540616

main91655-40616

14 parts on this diagram · 6 diagrams in section
