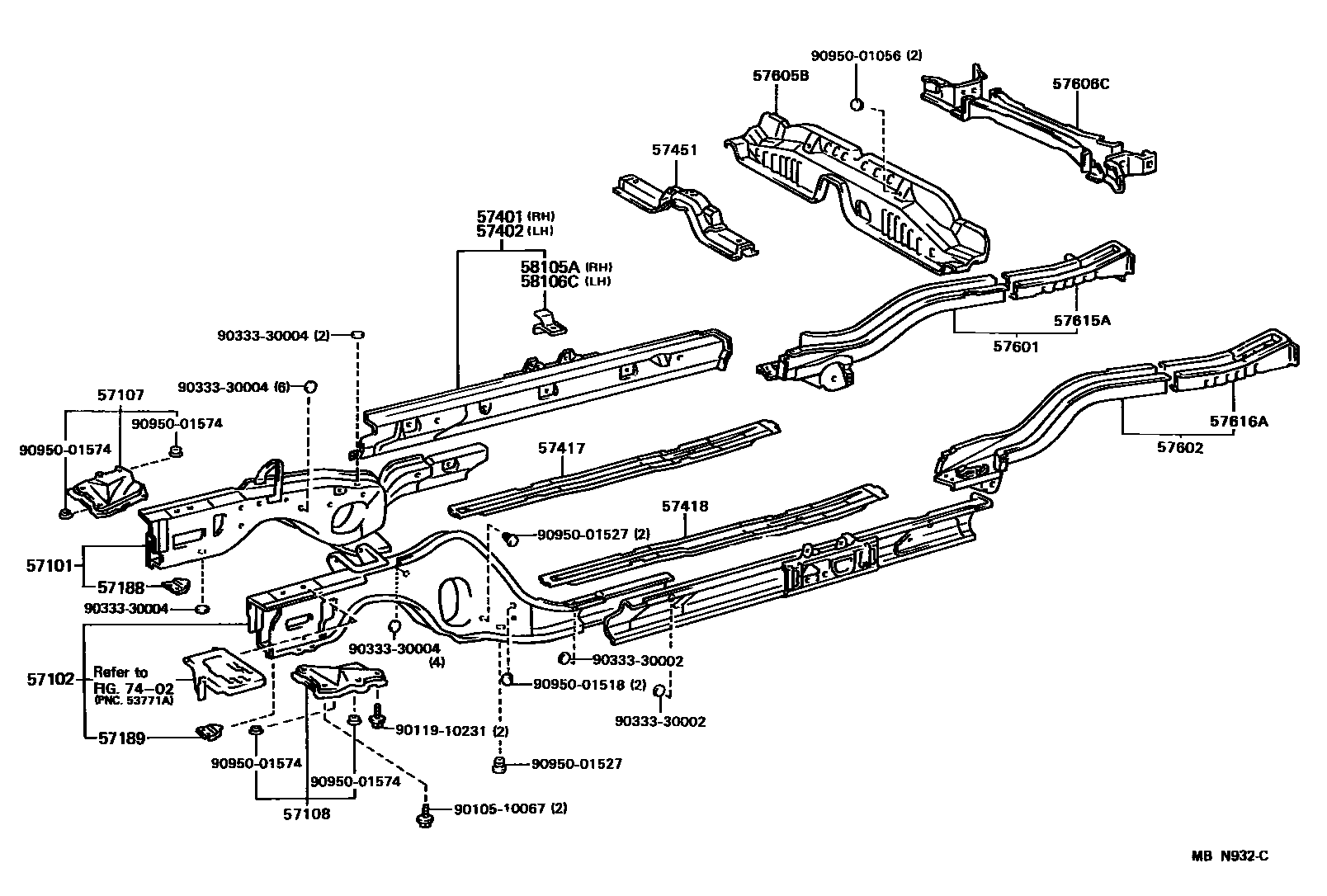

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-32060iSV21..GT;CV20,SV25198808-199007

main57101-32080iSV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main57101-32110iVZV20198808-199007

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-32060iCV20,SV2#198808-199007

main57102-32070iVZV20198808-199007

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-32020iCV20,SV2#,VZV20198808-199007

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-32020iCV20,SV2#,VZV20198808-199007

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-32030iCV20,SV2#,VZV20198808-199007

57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-32030iCV20,SV2#,VZV20198808-199007

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-32060iCV20,SV2#,VZV20198808-199007

sub57401-32040

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-32060iCV20,SV2#,VZV20198808-199007

sub57402-32040

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-32030iCV20,SV2#,VZV20198808-198811

sub90950-01527

main57417-32031iCV20,SV2#,VZV20198811-199007

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-32030iCV20,SV2#,VZV20198808-198811

sub90950-01527

main57417-32031iCV20,SV2#,VZV20198811-199007

57451MEMBER, FRONT FLOOR CROSS

main57408-32020iCV20,SV21,22,VZV20198808-199007

main57408-32030iSV25198808-199007

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-32080iCV20,SV21,22,VZV20..HT198808-199007

main57601-32100iCV20,SV21,22,VZV20..SED198808-199007

sub57601-32071

main57601-32110iSV25198808-199007

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-32090iCV20,SV21,22,VZV20198808-199007

sub57602-32071

main57602-32100iSV25198808-199007

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-32020iCV20,SV21,22,VZV20198808-199007

main57605-32040iSV25198808-199007

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-32030iCV20,SV21,22,VZV20198808-199007

sub57606-32040

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-32906iCV20,SV21,22,VZV20198808-199007

main57615-32909iSV25198808-199007

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-32909iSV25198808-199007

main57616-32912iCV20,SV21,22,VZV20198808-199007

58105ABRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH

main58105-32020iCV20,SV2#,VZV20198808-199007

58106CBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-32020iCV20,SV2#,VZV20198808-199007

7402

9010510067

main90105-10067

9011910231

main90119-10231

9033330002

main90333-30002

9033330004

main90333-30004

9095001056

main90950-01056

9095001518

main90950-01518

9095001527

main90950-01527

9095001574

main90950-01574

28 parts on this diagram · 2 diagrams in section
